European Standard Prefab Light Steel Poultry House

Our design and quality of prefab light steel poultry house and equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

All pictures (or videos) of this pages are the application of our prefab light steel poultry house in customers' projects. Our technicians have rich experience in localizing projects.

Prefab steel poultry house with photovoltaic panel system

Taiyu Group's turnkey project of prefab light steel poultry house

Taiyu (HK) Group case 1

Our project - underbuilding poultry house - 1

Our project - underbuilding poultry house - 2

Our project - underbuilding poultry house - 3

Our project - underbuilding poultry house - 4

Our project - underbuilding poultry house - 5

Our project - finished poultry house

Some shorter videos to understand its structures in poultry farm very well

Taiyu (HK) Group case 2

Taiyu (HK) Group case 3

To obtain your farm-specific plan, please Whatsapp 24 hours online/Mobile: +86 18830120193, +234 8111199996.

Learn more application of poultry house, visit:

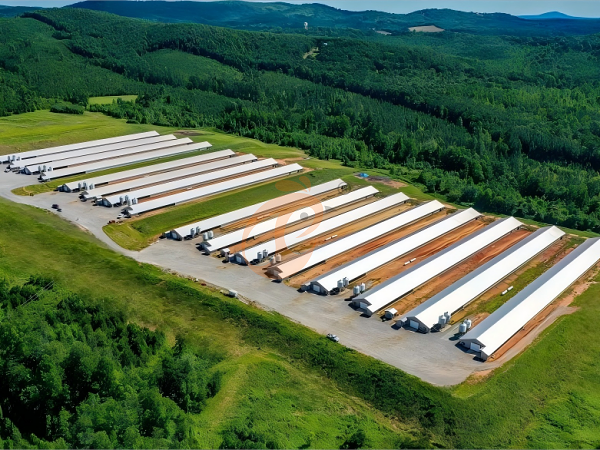

Taiyu Group's poultry farm case

Advantage of Taiyu Group's steel poultry house

Why choosing Taiyu Group

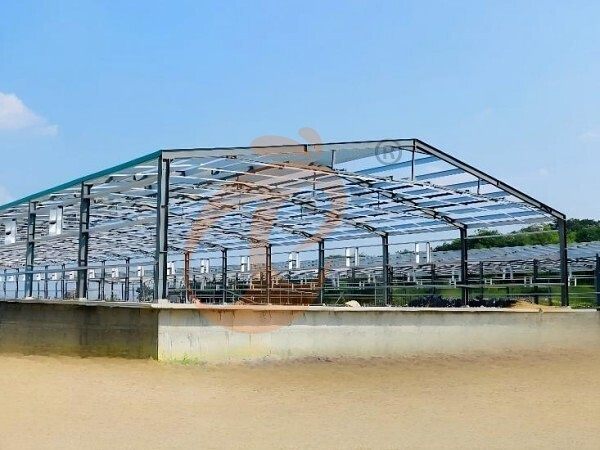

1. Modular steel structure components, prefabricated in factory, fast assembly on-site.

2. Bolted connections, no welding required, reducing construction time.

3. Lightweight yet strong structure, reducing foundation load, suitable for large-span designs.

4. Roof with self-draining design to prevent water accumulation.

5. Engineered to withstand seismic intensity of 8, suitable for earthquake-prone regions.

6. Pre-installed intelligent interfaces for sensors and control systems.

7. Supports open or closed ventilation, adaptable to different climates.

8. Fully recyclable, compliant with green building standards.

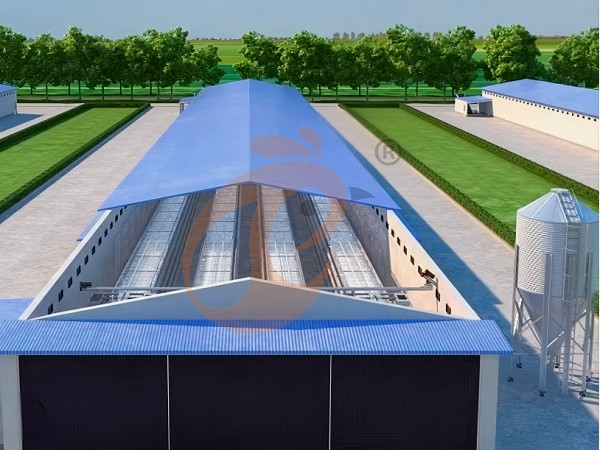

Sample of prefab steel poultry house

Slide the table to view the complete content. The data is for reference only.

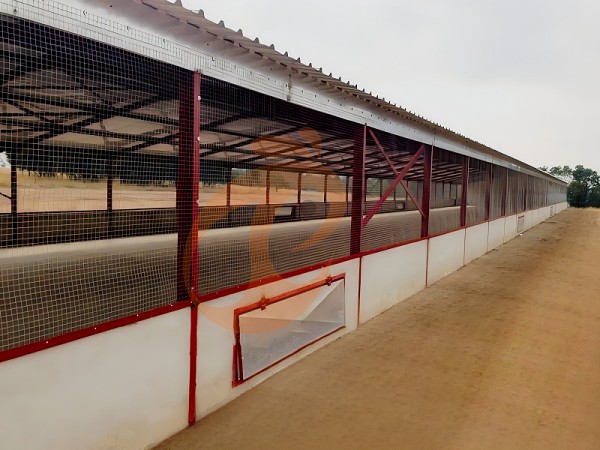

Brief introduction of prefab steel poultry house

2. Roof purlins made of C/Z steel 100–180, hot-dip galvanized ≥275 g/m², high load-bearing and corrosion-resistant.

3. Wall and roof panels available in color steel sandwich, glass wool, or PU boards, thickness 50–100 mm.

4. Doors and windows made of aluminum alloy sliding or insulated type, with double-glass and insect-proof mesh.

5. Flooring is C25 concrete, thickness ≥100 mm, flatness ≤5 mm.

6. Compatible with automated feeding, watering, and manure removal systems, reducing labor requirements.

Application of prefab steel poultry house

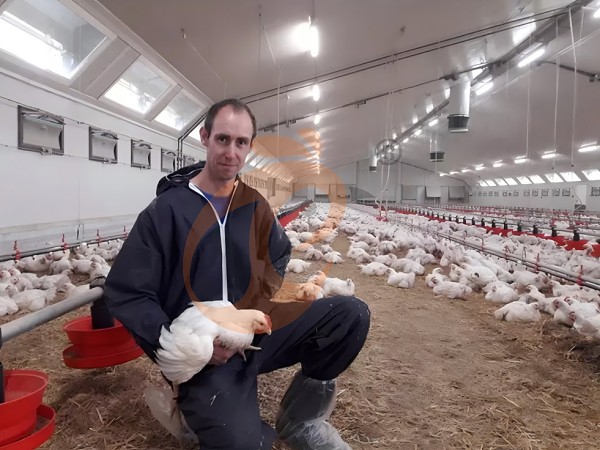

1. Broiler production

• 3–12 tier H-type cages, housing 24,000–152,000 birds per building depending on house length and tier number.

• Single cage set capacity: 360–1,450 birds, space per bird: 100–125 cm².

• Modular design allows fast expansion or disassembly for varying farm scales.

2. Pullet / layer chick production

• 4–12 tier H-type cages, single set capacity: 192–576 birds, space per bird approx. 0.03 m².

• Farm capacity: 21,000–138,000 birds, modules can be freely combined for seasonal expansion.

• Supports automated feeding and watering interfaces to reduce labor.

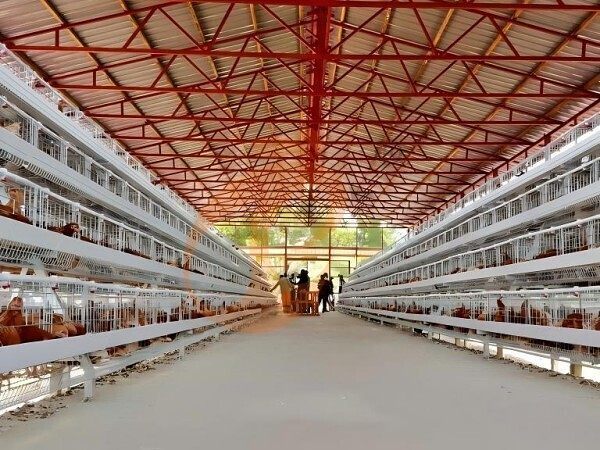

3. Adult layer production

• 4–16 tier H-type cages, single set capacity: 128–816 birds, space per bird: 0.046 m².

• Total farm capacity: 38,000–163,000 birds, adaptable to different scales.

• Compatible with automated egg collection and manure systems.

Size of prefab steel poultry house

Slide the table to view the complete content. The data is for reference only.

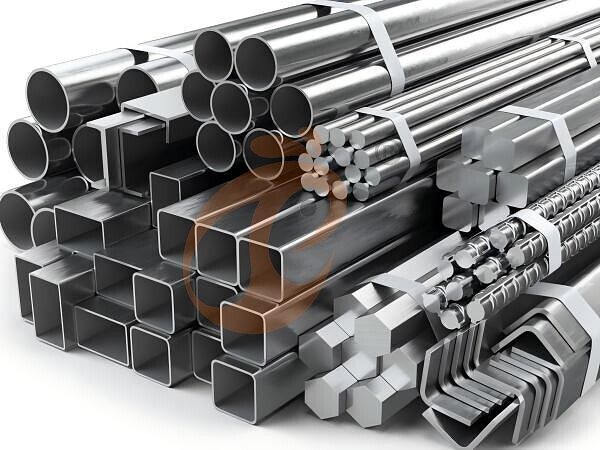

Material of prefab steel poultry house

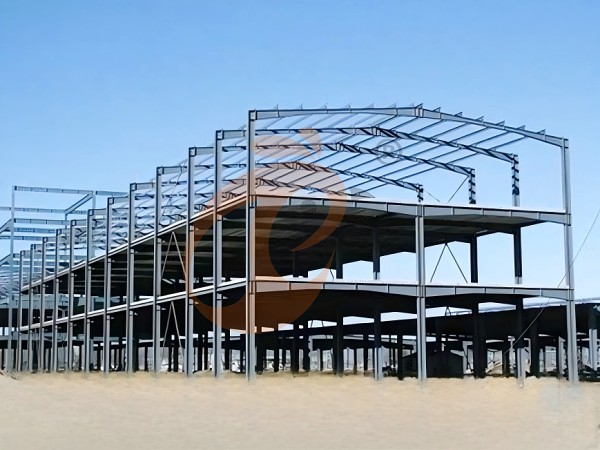

1. Steel structure: Columns H100–H200, beams C120–C200, hot-dip galvanized or spray-coated. Wind and load resistant.

2. Roof & wall panels: PU/color steel sandwich, color steel, glass wool panels; lightweight, high-strength, low thermal conductivity.

3. Surface coating: Polyester or aluminum-zinc layers for weather resistance.

4. Eco & recyclable: All materials recyclable; durable, low-maintenance, and green building compliant.

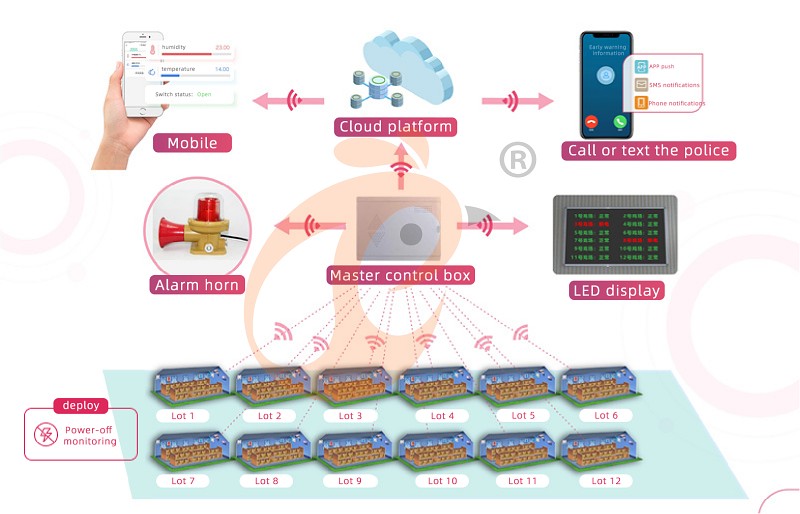

Working principle of prefab steel poultry house

1. Environmental monitoring

Fittings

Temperature, humidity, airflow, and light sensors.

Working process

Collects data continuously, sends to control unit, triggers alerts for anomalies.

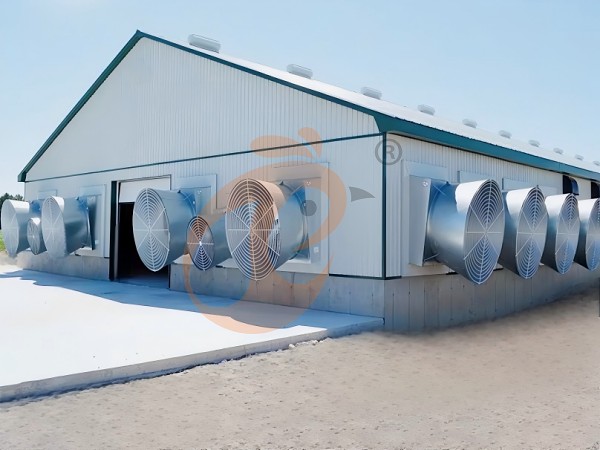

2. Ventilation control

Fittings

Fans, vents, ducts.

Working process

Adjusts airflow automatically; switches between natural and forced ventilation.

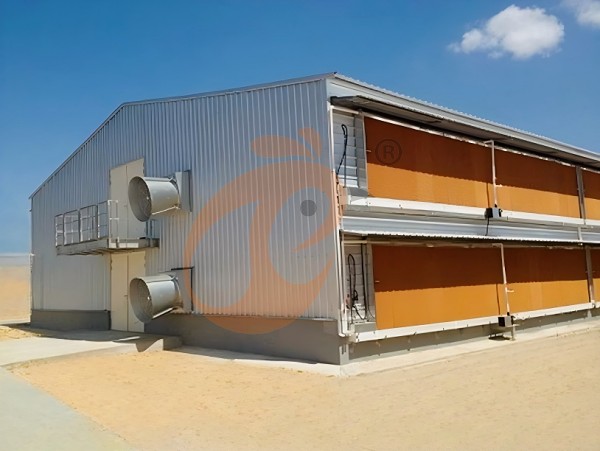

3. Heating & cooling

Fittings

Heaters, cooling pads, thermostats.

Working process

Maintains per-module temperature; devices start/stop based on readings.

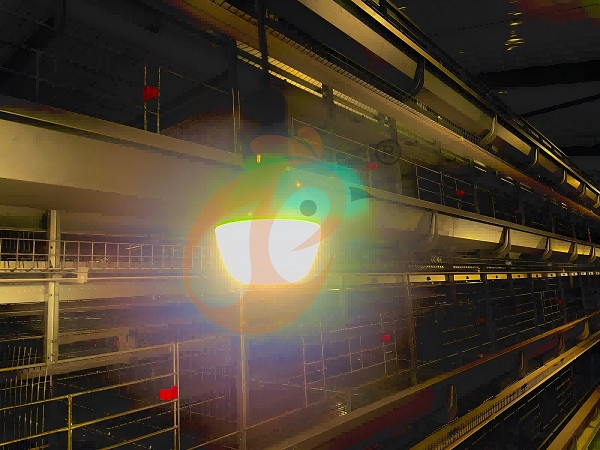

4. Lighting system

Fittings

LED lamps, dimmers, timers.

Working process

Simulates sunrise/sunset cycles; intensity adjusts per zone automatically.

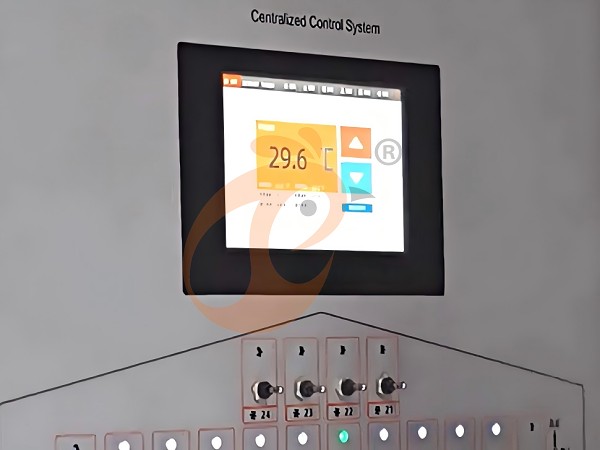

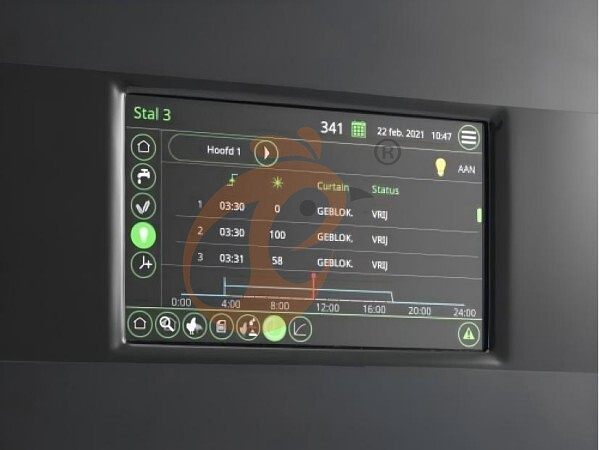

5. Automated safety & operations

Fittings

Central controller, relays, alarms, emergency stops.

Working process

Coordinates device operation; shuts down modules in case of malfunctions.

6. Remote data management

Full data collection

Fittings

Wireless routers, data loggers, cloud interface.

Working process

Aggregates data to cloud; enables remote monitoring and control.

Maintenance of prefab steel poultry house

Slide the table to view the complete content. The data is for reference only.

Packaging, shipping and installation

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

3. Engineers with rich project experience are available to serve you at any time.

Recommended related chicken cage

To learn more, please visit product list...

Tips of selecting chicken cage and poultry farm equipment

For reference only, it depends on your actual demands and situation of your poultry farm.
