European Standard A Type Automatic Battery Cage

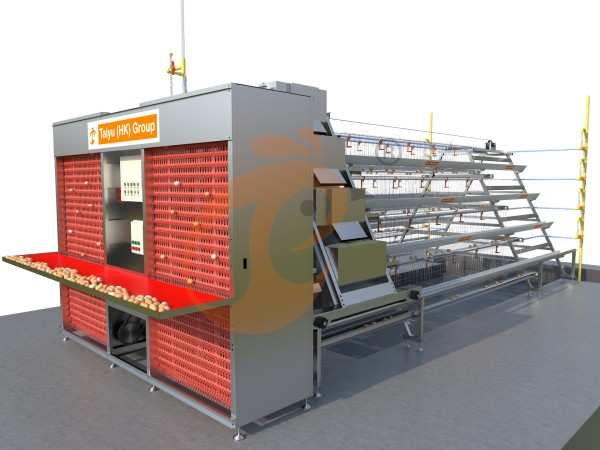

Quick view A type automatic layer battery cage

A type automatic battery cage is a barren wire enclosure used in industrial egg production to house many hens in high density, allowing for efficient automatic feeding, watering, and egg collection via sloped floors.

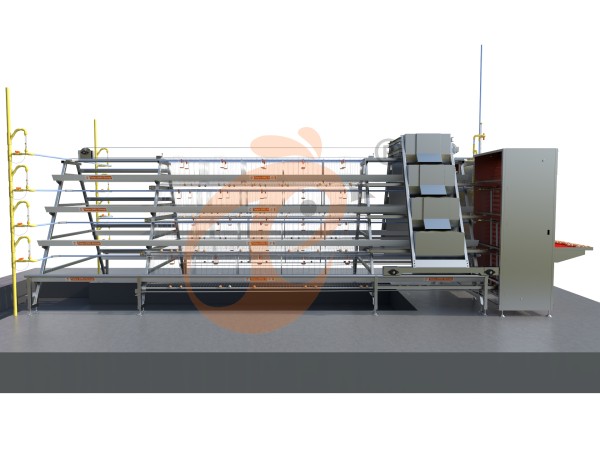

4 tiers, 160 chicken A type battery cage design

Sample showing

Hot sale commercial dimension

1. Tiers: 4 tiers

2. Capacity/set: 160 chickens

3. L X W X H: 2.2m by 2.4.m by 2.2m

4. House Size: 50 × 14 × 4.25–5.65 m (L × W × H), 8,640 birds

5. House Size: 100 × 14 × 4.25–5.65 m (L × W × H), 19,680 birds

To get the quotation, please Whatsapp 24 hours online/Mobile +8618830120193

How A type automatic battery cage working – Automatic design

A shorter video to help you learn it faster

• Chicken transfer – Workers put 12 weeks to 16 weeks old layers into layer chicken cage.


• Automatic feeding – Feed is delivered evenly along the trough by a motorized feeding system.

• Automatic drinking – Nipple drinkers supply clean water on demand.

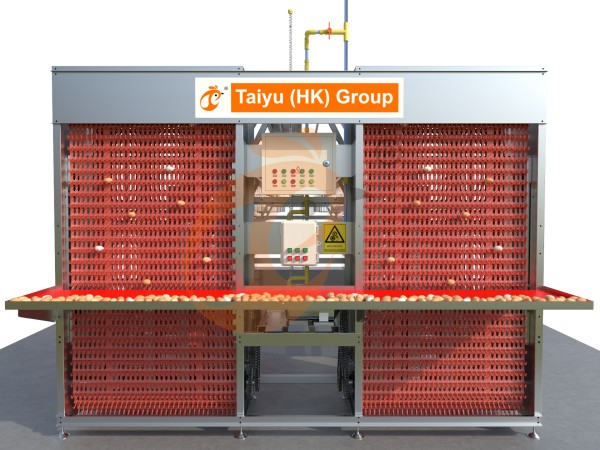

• Egg collection – Sloped cage floors allow eggs to roll gently onto the egg collection belt or tray.

• Manure removal – Manure belts or scrapers automatically remove waste.

• Matching Equipment: Feed mill, manure scrapers and dryer, so on.


To learn more poultry farm equipment, please visit product list ...

How to choosing the right types of layer battery cage

Comparation of 3 types of popular layer battery cage

Swipe left or right to view the full table.

Do not know how to choosing , WhatsApp to +86 18830120193, directly getting details and newest price.

Taiyu group 's A type layer battery cage poultry farm case

Case 1

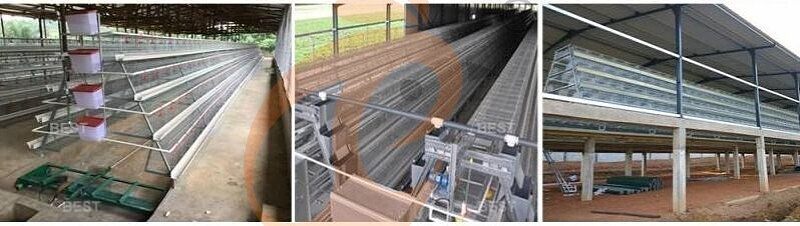

1. The picture shows the application case of our company's customized automated A layer chicken cages in African poultry farm.

2. The photo was taken in 2015, the poultry farm was completed in 2014.

3. The customer has chosen automated A 4 tier layer chicken cage with equipment and semi-automatic 3 tier layer chicken cage.

Case 2

Why choosing Taiyu group's A type automatic layer battery cage

Taiyu's advantage

• Direct from factory – Manufactured in China.

• Fast delivery & installation – Ready stock allows same-day or next-day delivery, modular design ensures quick setup.

• Reliable after-sales support – Local service team provides prompt assistance, whether you are a small or large farmer.

• Optimized for local conditions – Designed to suit your climate and farm structures for high egg production.

WhatsApp to +86 18830120193 – Directly getting details and newest price.

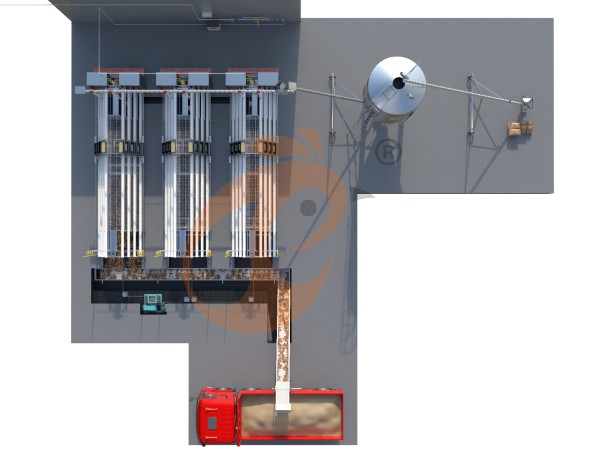

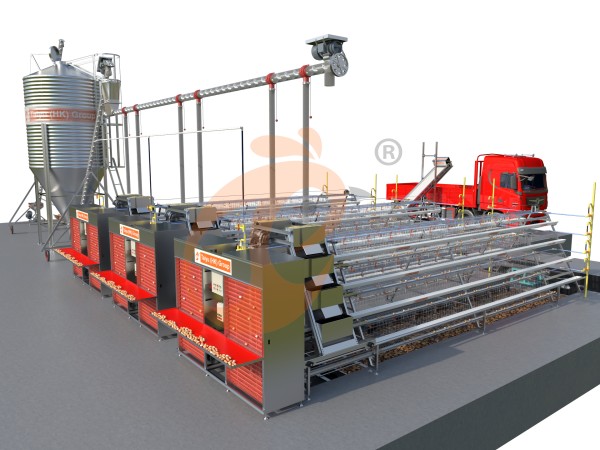

Poultry house layout

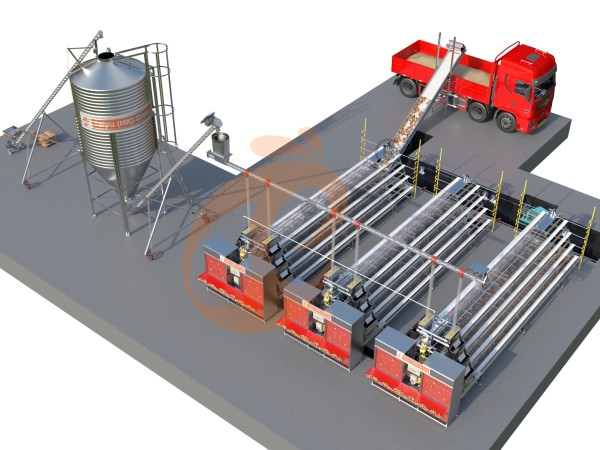

45 degree overlooking view

A shorter video to help you get it more clearly

Ground design 1: manure belt ending device to collecting chicken waste

Ground design 2: manure scraper device to collecting chicken waste

15,040 egg laying chickens/house

1. Building dimension: 80.4* 8.4* 3.5 meters

2. Number of cage tiers: 4 tiers

3. Number of cage lines: 2 lines

4. Total section each line: 47 sections

5. Total section in one house: 94 sections

6. Total birds each house: 15,040 birds

7. For reference only

Recommend products

  Prefabricate poultry house

Detailed Introduction Of Automatic A Type Layer Chicken Cage

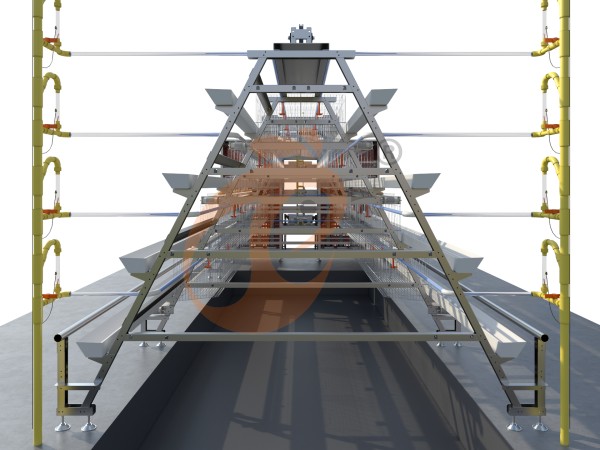

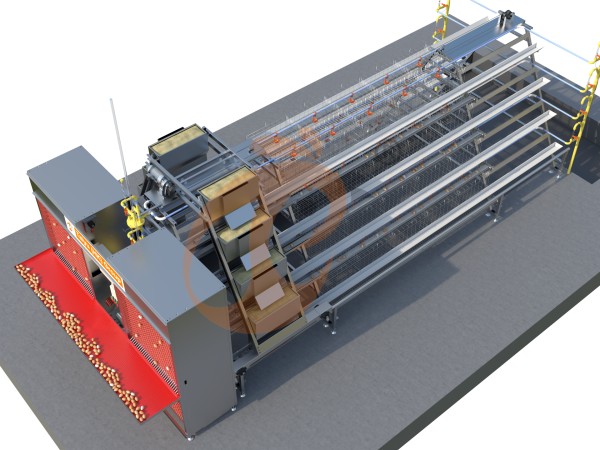

Sample of automatic A type layer chicken cage

1. The number of tier ranges are from 3 to 5. it can be customized based on the actual needs of the poultry farm and customer requirements, or our exact quotation.

2. The sample pictures show the automatic A 4-tier layer chicken cages.

Quantity of layer/layer chicken house

For your reference only, the following data are is estimated, The exact data is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.

Layout of 15,040 layers/layer chicken house

1. Building dimension: 80.4* 8.4* 3.5 meters

2. Number of cage tiers: 4 tiers

3. Number of cage lines: 2 lines

4. Total section each line: 47 sections

5. Total section in one house: 94 sections

6. Total birds each house: 15,040 birds

7. For reference only

Characteristic of our layer chicken cage

1. It is service life of up to 20 years, meets European quality standards and is more corrosion-resistant.

2. Egg production rate is over 98% together with high-quality feed formulas. European design style, and the structure caters to the activities of chickens.

3. Only one person manages a layer chicken house. There are intelligent and automated control operation and alarm equipment, saves labor costs.

Size of automatic A type layer chicken cage

For reference only,

The exact size is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.

Accept customers'special sizes.

Here is drawing of 3 tiers, 4 tiers and 5 tiers of layer chicken cage.

Fittings of layer chicken cage

1. Vcloud artificial intelligent fusion

2. Electric control cabinet

3. Layer chicken cage body

4. Frame of layer chicken cage system

5. Automatic drinking system

6. Automatic feeding system

7. Automatic egg collection system

8. Automatic manure removal system

9. Installation tools


Material of layer chicken cage

1. Galvanized steel and stainless steel pipe and plate.

2. Motor, electric wire, circuit board, sensor, touch screen.

3. Galvanized steel, stainless steel, plastic and imported fittings, installation tools and so on.

Working principle of layer chicken cage

1. Vcloud artificial intelligent fusion

Fittings

App, hardware

Working process

• Provide comprehensive data

View the data of feed consumption, egg production quantity, water consumption, drug consumption, house climate, solar power system and so on of each layer chicken house and all layer chicken houses through the APP installed on your mobile phone, I-pad or computer.

• Order the equipment to operate

Give instructions to each automated device to start up, run and shut down at scheduled times.

• Alarm and shut down systems and equipment when any equipment in the layer chicken farm or layer chicken house operates abnormally for the following reasons

(1) The power supply voltage exceeds the limit, phase failure or three-phase imbalance occurs;

(2) The motor current exceeds the limit or the power exceeds the limit;

(3) Exceed the rated current;

• Monitor the power supply voltage, motor current, sensor operating status and so on in real time.

2. Electric control cabinet

Fittings

Electrical control boards, electrical control cabinets, alarm system cabinets, cables, wires, connecting accessories, etc.

Working process

Controls walking and stopping of the feeding equipment, egg collection equipment and manure removal equipment.

3. Layer chicken cage body

Fittings

Layer chicken cage nets, cage doors, connecting accessories, etc.

Working process

Layers walk, drink water, lay eggs and engage in other daily activities inside the layer chicken cage.

4. Frame of layer chicken cage system

Fittings

Frames of cages and automatic equipment, connecting accessories, etc.

Working process

Supporting the whole layer chicken cage system and automatic equipment.

5. Automatic drinking system

Fittings

Automatic drug dosers, water filters, water pressure regulators, water tank, water pipes, water troughs, nipple drinkers, automatic cleaning device, connecting accessories, etc.

Working process

Water flows successively into the drug dosers, water filters, water pressure regulators, water tanks, water pipes, nipple drinkers. Layers drink water by touching the nipple drinkers. The automatic cleaning device regularly cleans the whole drinking system.

6. Automatic feeding system

Fittings

Feed storage silos, transverse feed spiral augers, feed elevator equipment, feed weigher, feeding carts, feed average system, feeding carts' towing orbits, connecting accessories, etc.

Working process

Feed storing in silo is successively into feed elevator equipment, transerse feed spiral augers, feeding carts, and feeding troughs, layer chicken eat it.

7. Automatic egg collection system

Fittings

Egg belts, egg convey fittings, egg belt clips, row ending egg collection machines, connecting accessories, etc.

Working process

Eggs successively roll on egg belts, row ending egg collection machines, eggs are picked up by workers.

8. Automatic manure removal system

(1) Type 1

Fittings

Manure belts, belts' frames, rollers, row ending manure collection equipment, horizontal manure convey equipment inside chicken house, slant manure conveyor equipment outside layer chicken house, connecting accessories, etc.

Working process

Layers' waste is successively dropped on manure belt under layer chicken cage, row ending manure collection equipment, horizontal manure convey equipment inside chicken house, slant manure conveyor equipment outside layer chicken house, to the tuck finally.

(2) Type 2

Fittings

Scrapers, ropes, motor, roller, connecting accessories, etc.

Working process

The layers' manure fell into the manure ditch under layer chicken cage, is scraped to the end of the layer chicken house by a scraper, is collected by the workers.

Size of the manure ditch

• Depth: approximately 30cm

• Width: usually slightly narrower than the distance between the two legs of the layer chicken cage.

• Length: as same as that of the layer chicken house.

Package of layer chicken cage

All fittings are packed by wooden pallets and boxes, plastic wraps and boxes, nude packing, it depends.

Transportation of layer chicken cage

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

Installation of layer chicken cage

1. We will send to you installation guide by email if you importing layer chicken cage or poultry equipment from China branch, will send engineers for your customized orders to guide the installation and testing of the equipment.

2. Local service of installation from branches of Ethiopia, Tanzania and Nigeria. We have installation teams.

Maintain of layer chicken cage

1. After installation is completed, clean and disinfect the entire set of equipment first.

2. Daily disinfect and sterilize the chicken house to reduce the incidence of avian influenza and other diseases.

3. Daily check motors and add oil if necessary of corollary system to make sure well working.

4. Daily check the drinking device to ensure that the water quality in the entire drinking water system is good.

5. Daily check the device of feeding, egg collection and manure removal equipment to ensure that the entire system is operating well.

6. Monthly check other plastic and steel fittings, connectors and so on every to make sure well working.

7. Every time clean layer chicken cage system and corollary system after move all layers out, or before put new layers.

Equipment of layer chicken farm customers order too

For your reference only, it is based on the actual needs of the poultry farm and customers.

Equipment matching opening chicken house and closed chicken house

For your reference only, it is based on the actual needs of the poultry farm and customers.

Working process

• Climate control system

1. The indoor temperature can be fixed between 13 and 26 degrees Celsius, which is achieved through the cooperation of fans and wet curtains. The fans at one end of the chicken house sucks away the hot air inside. Under pressure, cooling water vapor comes from the wet curtains at the other end of the chicken house enters.

2. The indoor fresh air circulation in the chicken house is by the air windows on the side walls and roof.

• Poultry house light system

Promote the normal growth of broilers and chicks, reduce the incidence rate and mortality rate; extend the laying period of egg-laying hens, increase the egg production, through control of lighting time, selection of lighting color, design of layout of lighting system of poultry cage or poultry cage free in poultry house.
