European Standard A Type Manual Layer Battery Cage

Quick view of A type layer battery cage

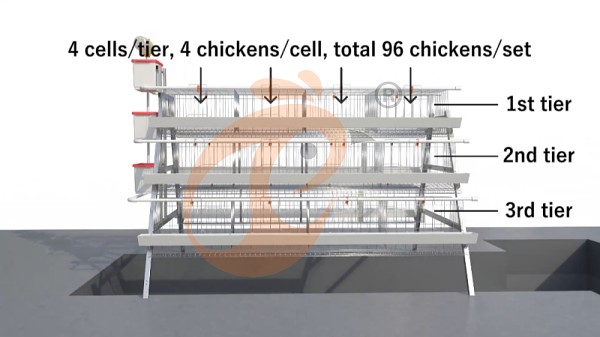

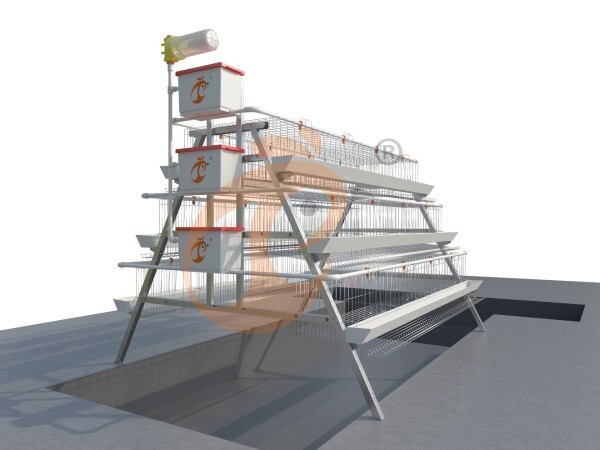

3 tiers, 96 chicken A type battery cage design

What is a battery cage?

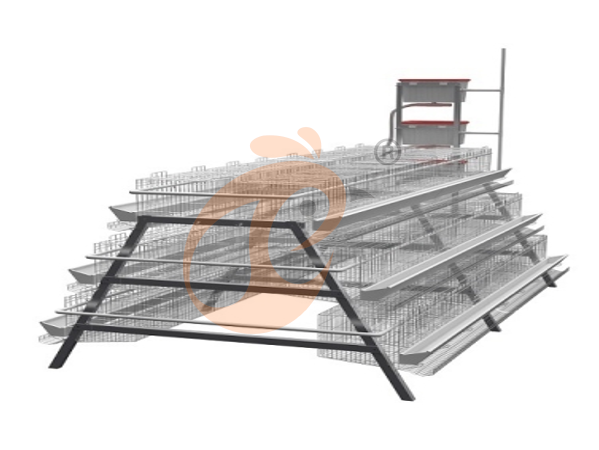

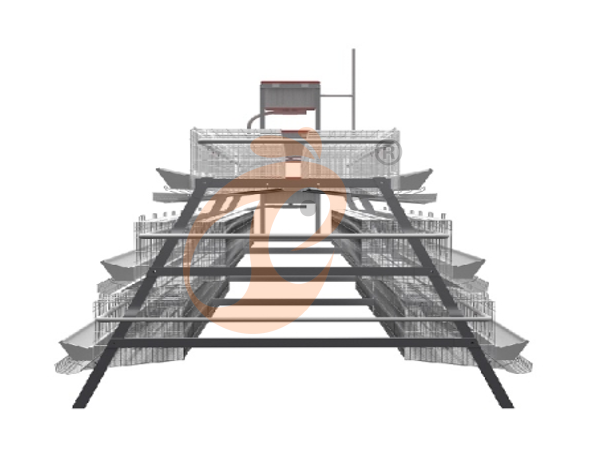

1. A Type manual layer cage system is a kind of poultry cage, featuring the classic "A" frame design.

2. The popular types are 3 tiers with 120 broilers per set, or 4 tiers with 160 broilers per set.

3. Suitable for farms raising 1,00 to 10,000 broilers in commercial egg production.

4. Price range: from 65 dollars/set to 165 dollars/set according to its material.

Why choosing A  type manual layer battery cage – Key advantage

• Simple A-frame design – Easy installation, for open poultry houses

• Strong galvanized structure – Rust-resistant material, 25 years

• Cheaper price – Manual operation, ideal for beginners and local farmers

Why choosing Taiyu (HK) group's A type layer battery cage for sale

China trusted poultry cage system manufacturer and supplier

• Global supplier with proven large-scale installations

• Full turnkey project capability — from cages to climate control

• Durable, galvanized equipment with long service life

• Automation & smart management systems included

• Custom design, installation, and after-sales support provided

Whatsapp 24 hours online now +86 18830120193 to get completed your poultry farm equipment list with quotation.

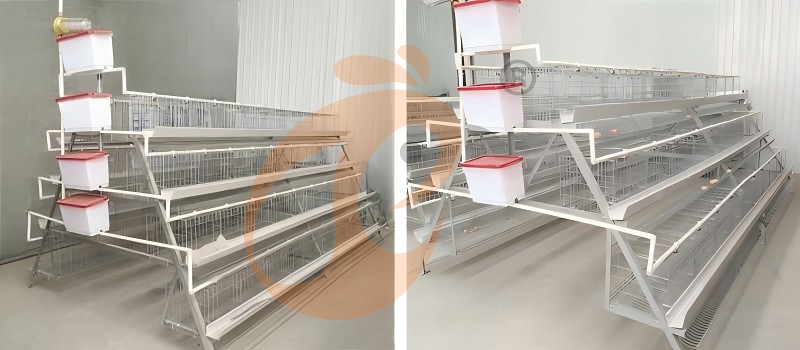

Hot sale types and dimensions of A type manual layer battery cage

1. Hot sale type 1

• Tiers: 3 tiers

• Capacity/set: 96 chickens

• L X W X H: 2.2m by 2.4m by 1.65m

• House Size: 50 x 12 x 4.15-5.25 (L x W x H): 7,560 birds

• House Size: 100 x 12 x 4.15-5.25 (L x W x H): 15,480 birds

2. Hot sale type 2

• Tiers: 4 tiers

• Capacity/set: 160 chickens

• L X W X H: 2.2m by 2.4m by 1.95m

• House Size: 50 x 12 x 4.15-5.25 (L x W x H): 10,080 birds

• House Size: 100 x 12 x 4.15-5.25 (L x W x H): 20,640 birds

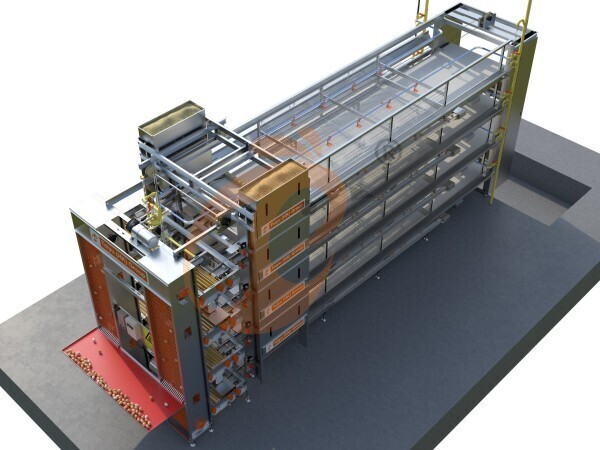

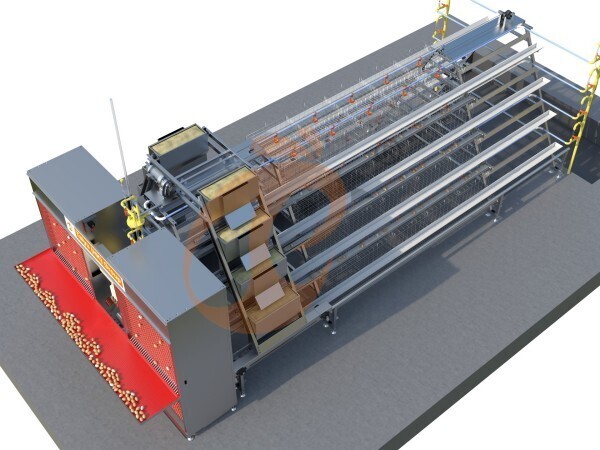

To learn more automatic types of layer battery cage, such as A type automatic and H type automatic, please visit:

H type automatic battery cage

A type automatic battery cage

To get the quotation, please Whatsapp 24 hours online/Mobile +8618830120193

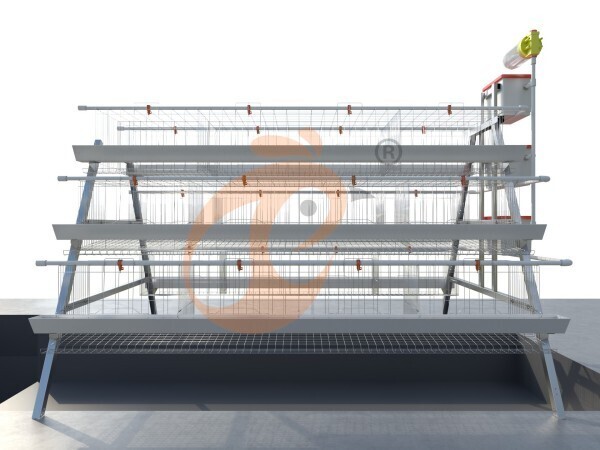

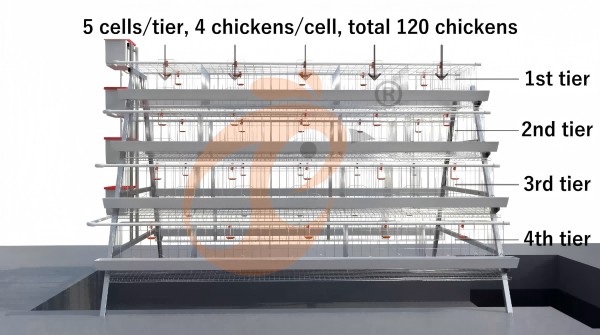

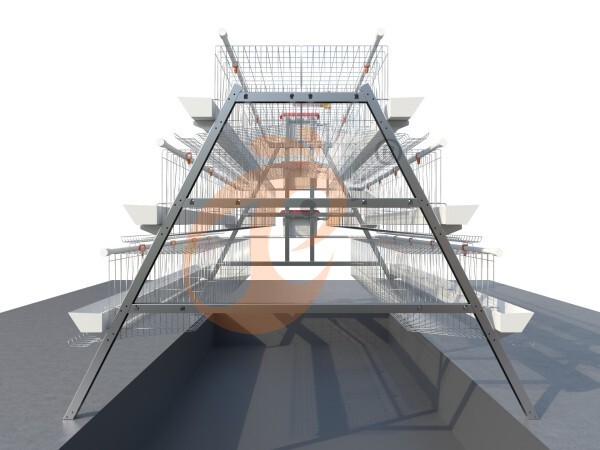

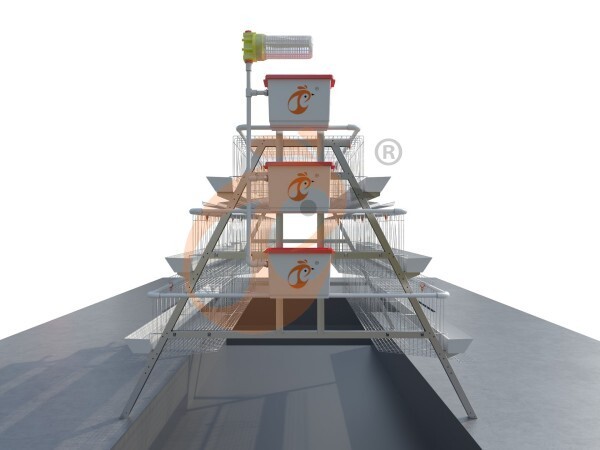

Structure of A type layer battery cage

A 20-second short video to help you better understand its structure

1. Transfer layers into layer chicken cage: workers put 12 weeks to 16 weeks old layers into layer chicken cage.

2. Drinking: layers are drinking cyclic medicine water by touching nipple drinker of automatic drinking system.

3. Eating: layers eat feed that is added to the trough by workers.

4. Egg collecting: eggs are picked up by workers.

5. Manure cleaning: layers' manure falls into the ditch, it is washed away by workers with water, or choose scraper manure cleaning machine, manure are moved out automatically.

Taiyu group's case

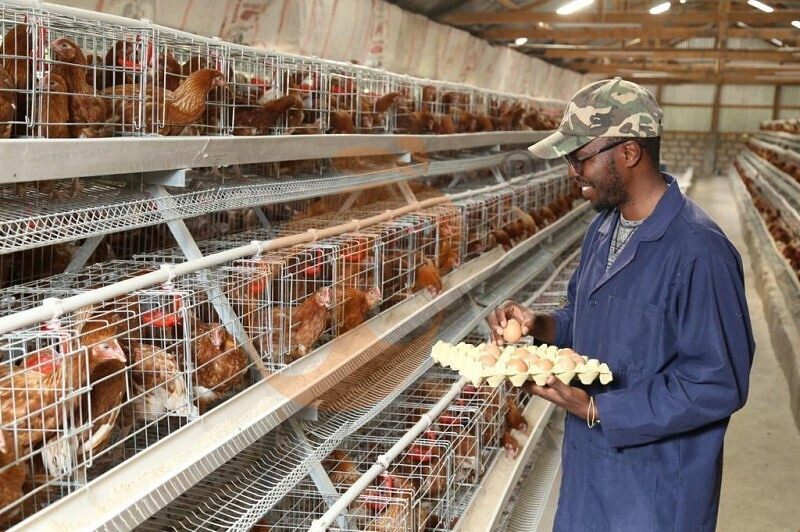

1. Layer chicken farm 1

• Our customized semi-automaitc A layer chicken cages in African poultry farm.

• The photo was taken in 2011, the poultry farm was completed in 2011.

• The customer has chosen semi-automaitc A 3 tier layer chicken cage system.

2. Layer chicken farm 2

• Our customized semi-automaitc A layer chicken cages in African poultry farm.

• The photo was taken in 2008, the poultry farm was completed in 2012.

• The customer has chosen semi-automaitc A 3 tier layer chicken cage system.

3. Layer chicken farm 3

• Our customized semi-automaitc A layer chicken cages in African poultry farm.

• The photo was taken in 2008, the poultry farm was completed in 2012.

• The customer has chosen semi-automaitc A 4 tier layer chicken cage system.

Poultry house Layout

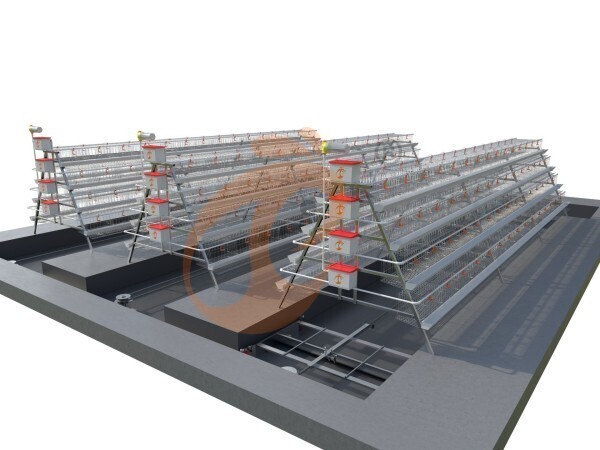

45 degree overlooking view

Top view

Parallel view

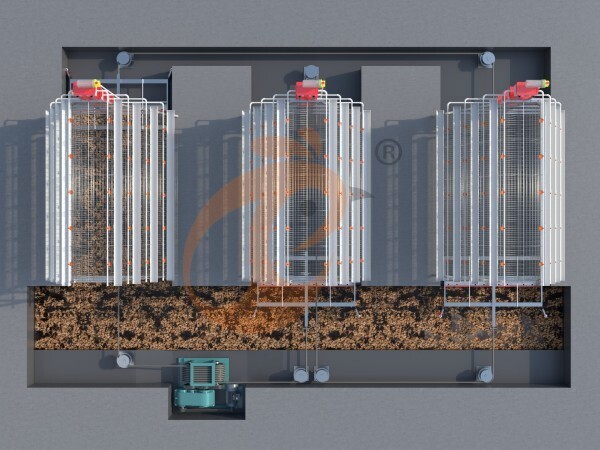

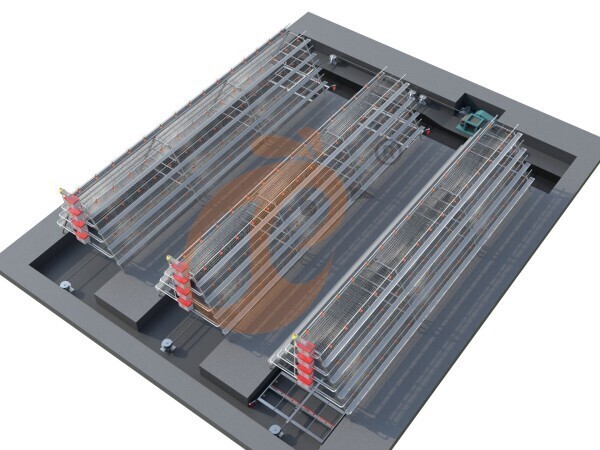

Layout of 3 rows of battery cage with manure cleaning system

A 20-second short video showing

How manure cleaning system working under cages

A 20-second short video showing

2,000 egg laying chickens

1. Building dimension: 26* 7.2* 3 meters

2. Number of cage tiers: 3 tiers

3. Number of cage lines: 2 lines

4. Total section each line: 22 sections

5. Total section in one house: 44 sections

6. Total birds each house: 20,00 birds

7. For reference only

5,000 egg laying chickens

1. Building dimension: 50.2* 8* 3 meters

2. Number of cage tiers: 3 tiers

3. Number of cage lines: 2 lines

4. Total section each line: 42 sections

5. Total section in one house: 84 sections

6. Total birds each house: 5,040 birds

7. For reference only

WhatsApp to +86 18830120193 – Directly getting detailed introduction, newest price and your poultry house design.

Detailed Introduction Of A Type Manual Battery Cage

Size of A type local made battery cage

For reference only,

The exact size is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.

Accept customers' special sizes.

Here is drawing of 3 tiers, 4 tiers and 5 tiers of layer chicken cage.

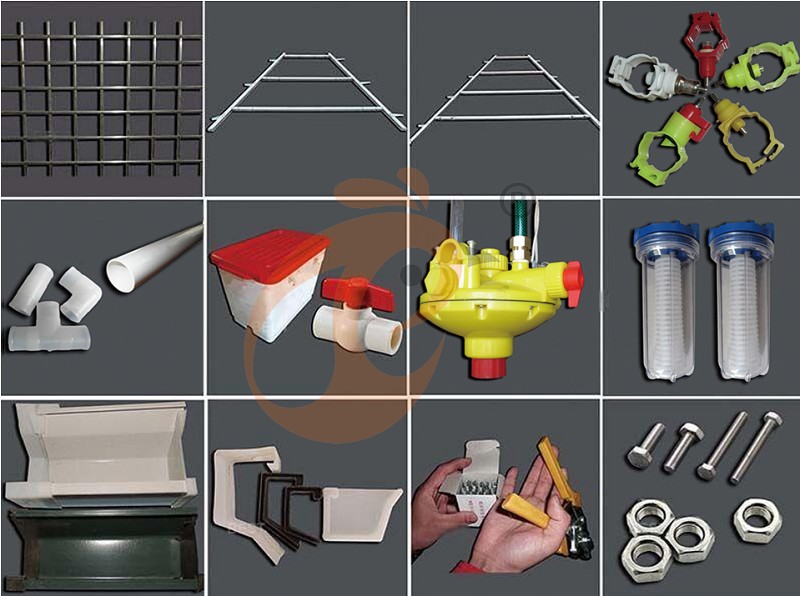

Fittings of A type local made battery cage

1. Layer chicken cage body

2. Frame of layer chicken cage system

3. Automatic drinking system

4. Feed trough and its connecting accessories

5. Installation tools

Working principle of A type layer chicken cage

1. Layer chicken cage body

Fittings

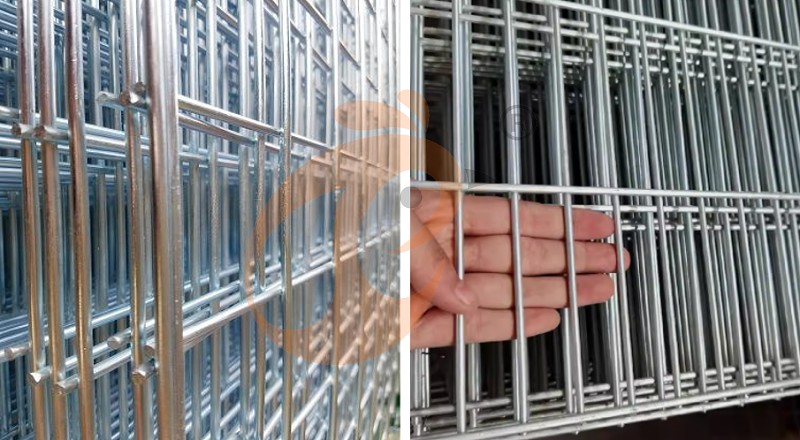

Layer chicken cage nets, cage doors, connecting accessories, etc.

Working process

Layers walk, drink water, lay eggs and engage in other daily activities inside the layer chicken cage.

2. Frame of layer chicken cage system

Fittings

Frames of cages, connecting accessories, etc.

Working process

Supporting the whole layer chicken cage system.

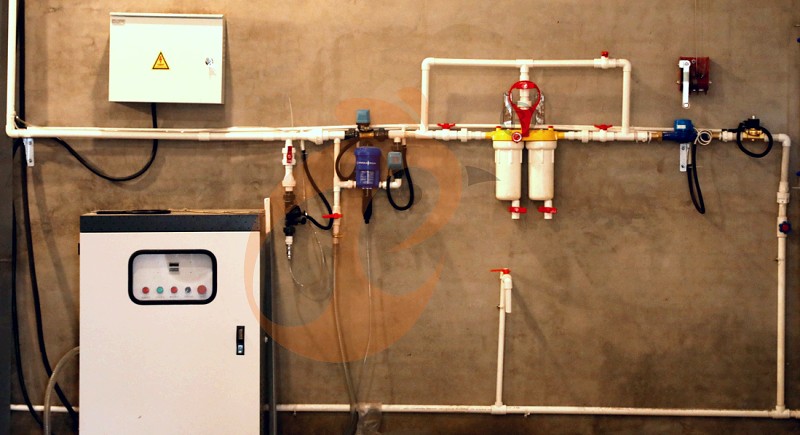

3. Automatic drinking system

Fittings

Automatic drug dosers, water filters, water pressure regulators, water tank, water pipes, water trough, nipple drinkers, automatic cleaning device, connecting accessories, etc.

Working process

Water flows successively into the drug dosers, water filters, water pressure regulators, water tanks, water pipes, nipple drinkers. Layers drink water by touching the nipple drinkers. The automatic cleaning device regularly cleans the whole drinking system.

4. Manual feeding system

Fittings

Feed trough, connecting accessories, etc.

Working process

Layers eat feed that is added to the trough by workers.

5. Manual egg collection

Fittings

Bottom mesh of layer chicken cage.

Working process

Eggs are picked up by workers.

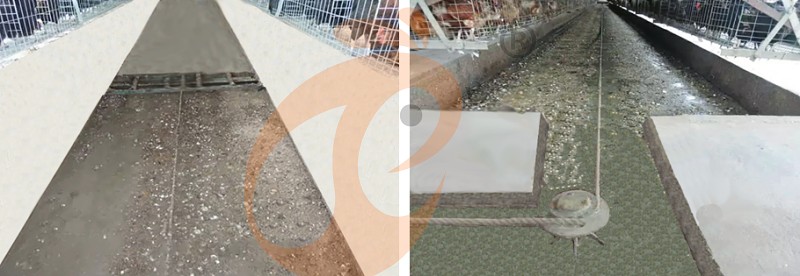

6. Manure cleaning

(1) Type 1

Manually cleaning: layers' manure falls into the ditch, it is washed away by workers with water.

(2) Type 2

Automatic cleaning

Fittings

Scrapers, ropes, motor, rollers, connecting accessories, etc.

Working process

The layers' manure fell into the manure ditch under layer chicken cage, is scraped to the end of the chicken house by a scraper, is collected by the workers.

Size of the manure ditch

• Depth: approximately 30cm

• Width: usually slightly narrower than the distance between the two legs of the layer chicken cage.

• Length: as same as that of the layer chicken house.

Package of A type local made battery cage

All fittings are packed by wooden pallets and boxes, plastic wraps and boxes, nude packing, it depends.

Transportation of A type local made battery cage

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

Installation of A type local made battery cage

1. We will send to you installation guide by email if you importing layer chicken cage or poultry equipment from China branch, will send engineers for your customized orders to guide the installation and testing of the equipment.

2. Local service of installation from branches of Ethiopia, Tanzania and Nigeria. We have installation teams.

Maintain of A type battery cage

1. After installation is completed, clean and disinfect the entire set of equipment first.

2. Daily disinfect and sterilize the chicken house to reduce the incidence of avian influenza and other diseases.

3. Daily check motors and add oil if necessary of corollary system to make sure well working.

4. Daily check the drinking device to ensure that the water quality in the entire drinking water system is good.

5. Daily check the device of feeding, egg collection and manure removal equipment to ensure that the entire system is operating well.

6. Monthly check other plastic and steel fittings, connectors and so on every to make sure well working.

7. Every time clean layer chicken cage system and corollary system after move all layers out, or before put new layers.

Equipment list farmer order too

For your reference only, it is based on the actual needs of the poultry farm and customers.

Visit product to learn more...

Tips to purchasing battery cage and poultry farm equipment

We customizes chicken cage and poultry farm equipment based on

• the temperature and humidity of your countries

• the growth environment

• the weight of your local chicken

Please provide the following information,

we will customize your economical and manageable

poultry farm turnkey project plan by it.

1. your name

2. tel (Whatsapp ID too)

3. email

4. farm location

5. your farm land size

6. layer, broiler or pullet

7. bird capacity 3,000~10,000, 30,000~100,000 or 200,000~1,000,000+

8. chicken poultry cage and poultry equipment you want

9. directly whatsapp to reception NO. +8618830120193
