European Standard Automatic Scraper Manure Cleaning System For Poultry Cage

Our design and quality of automatic scraper manure cleaning system for poultry cage and equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

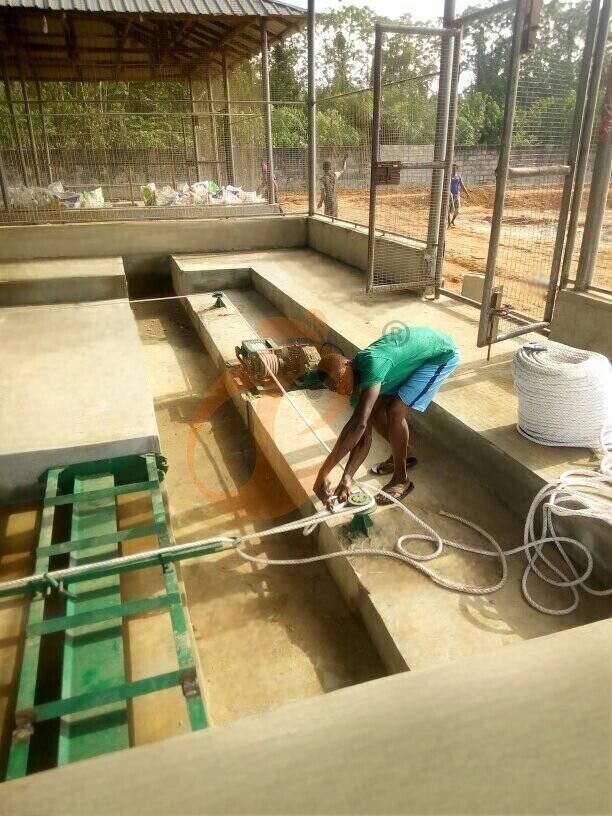

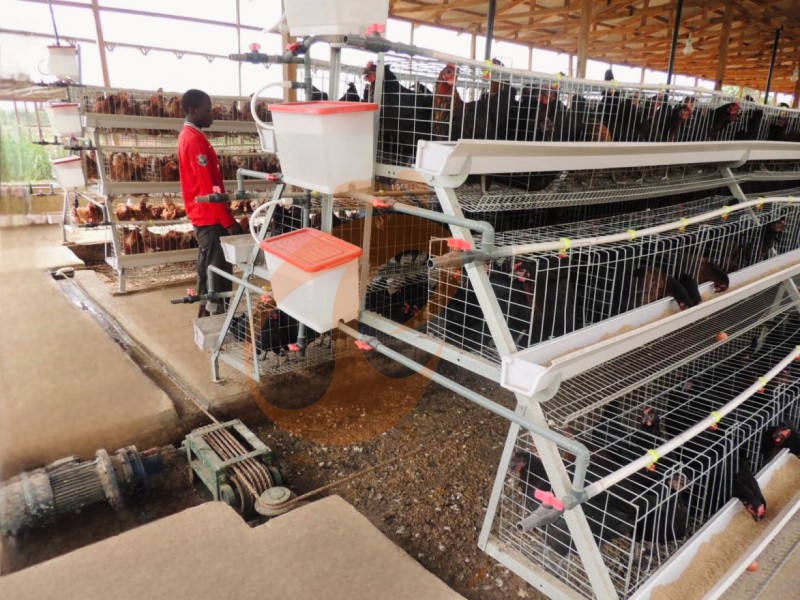

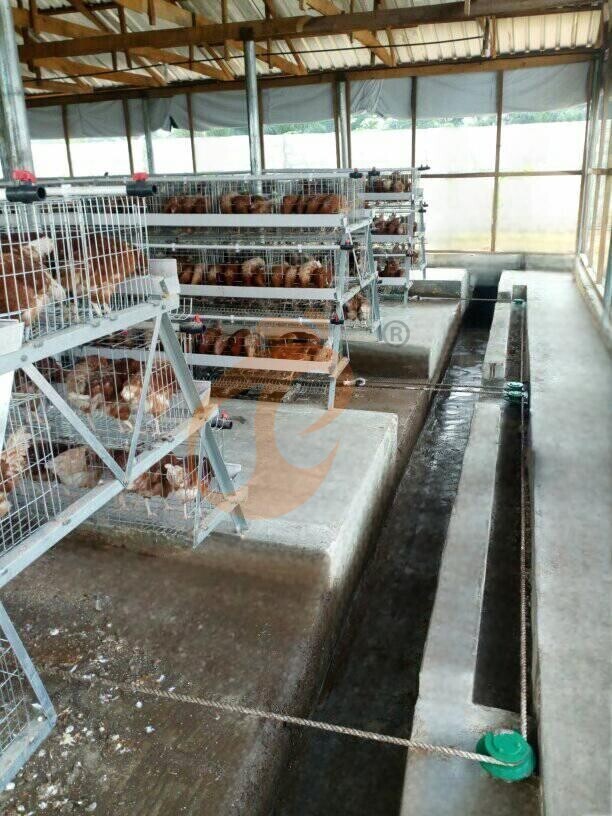

All pictures (or videos) of this pages are the application of our automatic scraper manure cleaning system for poultry cage in customers' projects. Our technicians have rich experience in localizing projects.

Applications of automatic scraper manure cleaning system

1. Automatic manure cleaning – Reduces manual labor by continuously removing chicken droppings.

2. Maintains poultry house hygiene – Prevents ammonia and pathogen accumulation, promoting flock health.

3. Compatible with multi-tier cages – Especially designed to work with A-type layer cages.

4. Continuous operation – Can run 24/7, ensuring consistently clean environment.

5. Suitable for intensive poultry operations – Ideal for medium to large-scale chicken houses or multi-tier cage systems.

Working principle of automatic scraper manure cleaning system

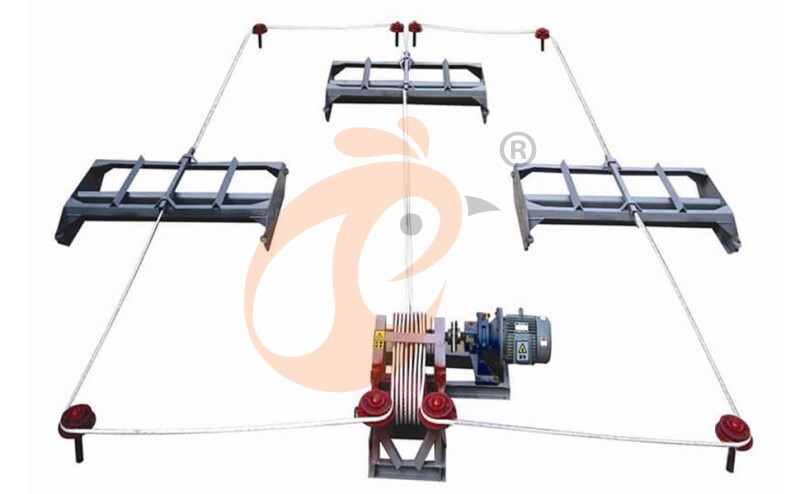

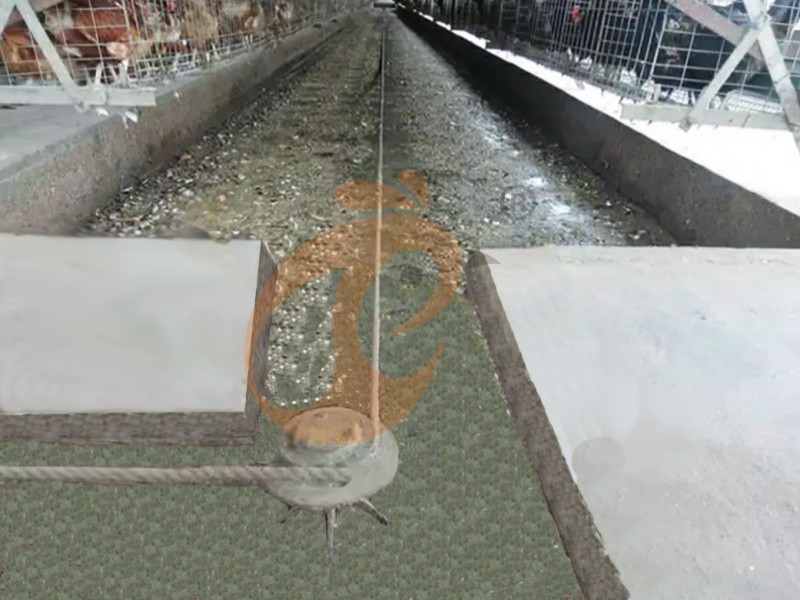

1. Scraper arrangement – Scrapers are installed beneath cages or in floor gutters, moving longitudinally or transversely along the poultry house.

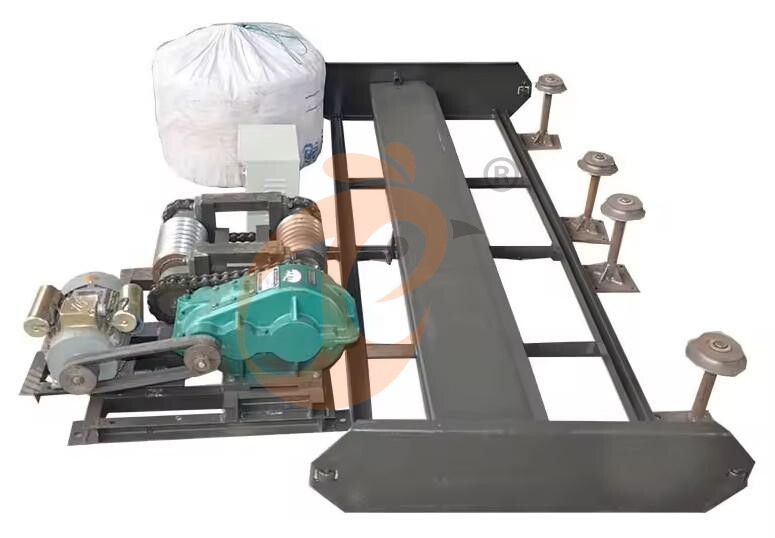

2. Drive mechanism – Electric motor powers chain or steel cable, driving scrapers to move continuously.

3. Manure removal – Scrapers push chicken droppings, feathers, and other debris towards the end of the poultry house.

4. Centralized discharge – Manure is collected into storage pits or transported via conveying systems for processing.

5. Automatic cycle – Can be set to run timed or continuously, keeping the poultry house clean without manual intervention.

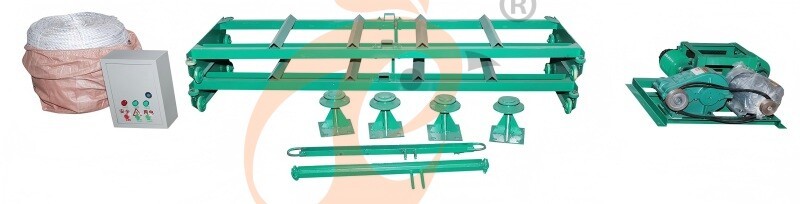

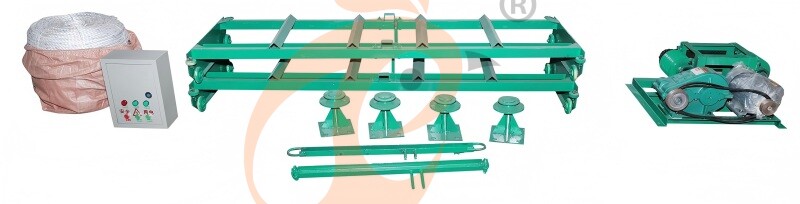

Materials of automatic scraper manure cleaning system

1. Scraper blades

2. Chain / Steel cable

3. Support frame & gutters

4. Motor & control system

5. Wheels

Parameters of automatic scraper manure cleaning system

1. One row of cages: 60 m long × 1.2 m wide

2. Approximately 50 chickens per meter of aisle

3. Daily manure per chicken: 0.12 kg → 50 × 0.12 = 6 kg per meter

4. Total chickens: 60 m × 50 chickens/m = 3,000 chickens

5. Total daily manure: 3,000 × 0.12 kg ≈ 360 kg

6. Scraper speed: 10 m/min → 60 m aisle round trip ≈ 12 min

7. One hour allows ≈5 cleaning cycles, theoretical hourly removal: 1,500–2,000 kg, depending on manure thickness and moisture

Advantages of automatic scraper manure cleaning system

1. Fully automated cleaning – Reduces manual labor and increases efficiency.

2. Wide applicability – Compatible with multi-tier layer cages, broiler cages, and floor-based systems.

3. Low risk of injury – Scraper width and speed adjustable to avoid harming chickens.

4. Improves poultry house environment – Reduces ammonia accumulation and lowers disease incidence.

5. Easy maintenance – Scraper blades can be removed for cleaning; chains or cables are easy to replace.

Maintenance of automatic scraper manure cleaning system

1. Inspect scraper blades regularly and replace worn components promptly.

2. Maintain proper tension of chains or cables to prevent slack or skipping.

3. Clear debris from gutters to ensure smooth scraper operation.

4. Periodically lubricate motor and drive components to extend service life.

5. Adjust scraper speed and travel distance appropriately to maintain cleanliness without disturbing chickens.

Packaging, shipping and installation

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

3. Engineers with rich project experience are available to serve you at any time.
