European Standard Broiler Deep Litter System

Our design and quality of broiler deep litter system and equipment based on European and USA standard.

24 hours Reception WhatsApp NO. : +8618830120193.

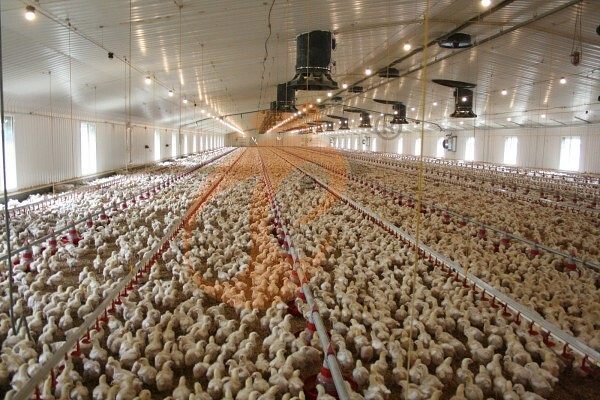

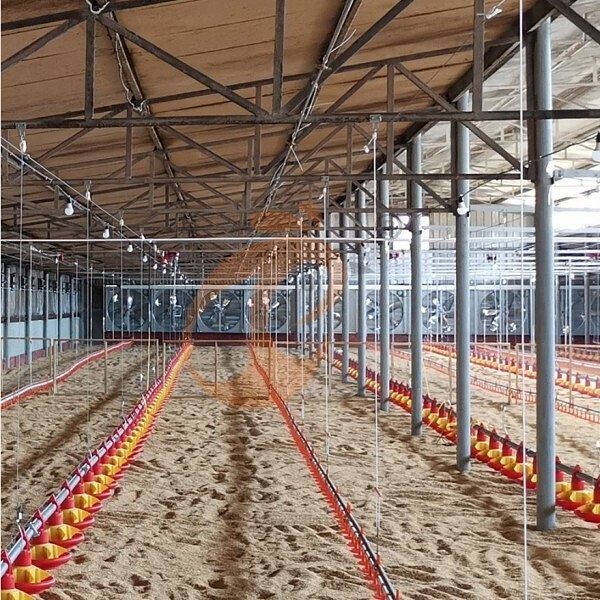

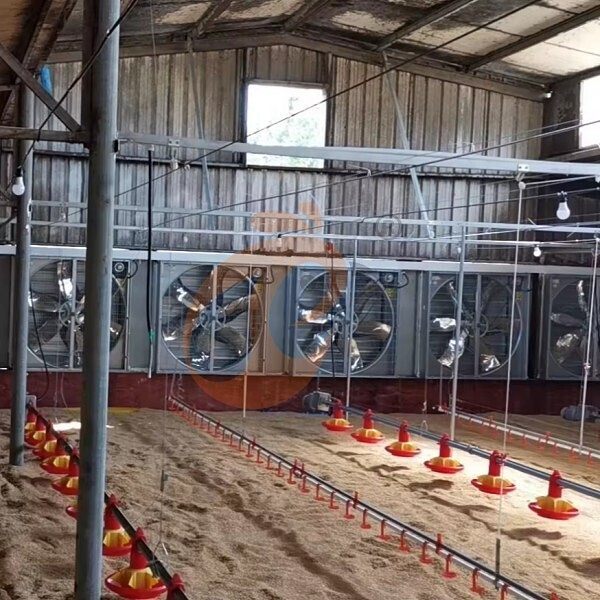

All pictures (or videos) of this pages are the application of our broiler deep litter system in customers' projects. Our technicians have rich experience in localizing projects.

Characteristic of broiler deep litter system

1. Litter bedding maintains moisture at 14–16%, preventing caking and minimizing ammonia emissions.

2. Automated litter turners cover 200–600 m² per hour, providing uniform aeration across the house.

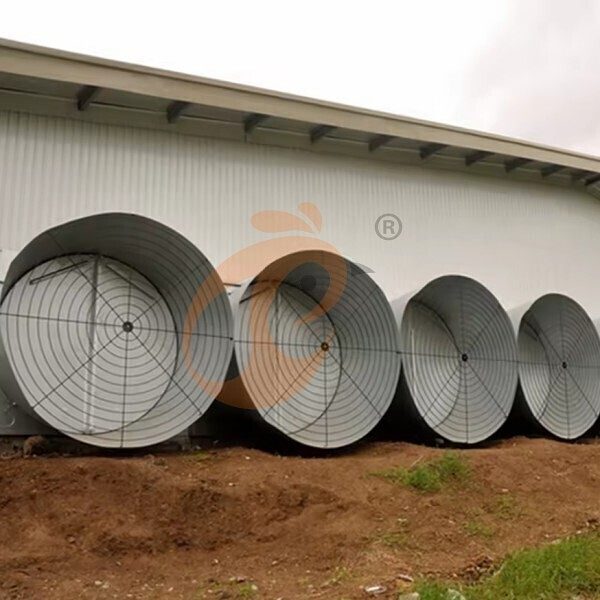

3. Ventilation system supplies 22,000–48,000 m³/h airflow, stabilizing temperature within ±0.8°C.

4. Feeders constructed from PVC 9–11 mm thick reduce breakage and ensure smooth feed flow.

5. Height-adjustable drinkers maintain water pressure at 1.5–2.0 bar, supporting consistent hydration.

6. Optional IoT monitoring captures feed, water, litter, and environmental parameters in real time.

Sample of broiler deep litter system

Slide the table to view the complete content. The data is for reference only.

Brief introduction of broiler deep litter system

The broiler deep litter system is designed for high-performance meat chicken farms.

It ensures uniform growth while minimizing labor requirements.

Optional smart features allow early detection of environmental changes, enabling timely interventions.

Its mechanical components are robust, supporting continuous operation in intensive farming conditions.

Application of broiler deep litter system

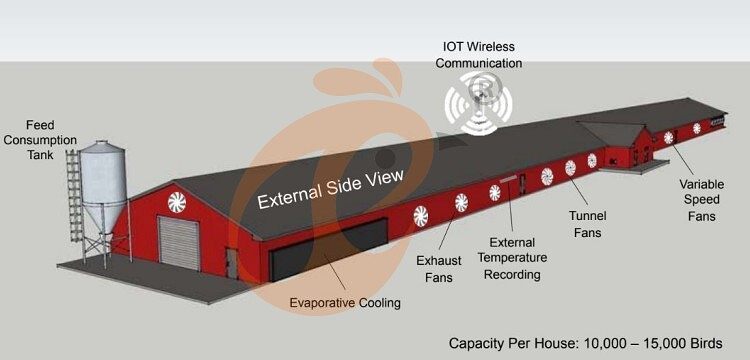

1. Suitable for controlled-environment broiler houses with 10,000–50,000 birds per house.

2. Supports farms aiming for optimized feed conversion ratios and uniform weight gain.

3. Reduces labor by automating litter turning and feeding operations.

4. Can be integrated with IoT sensors for remote environmental and consumption monitoring.

Quantity of chicken/house of broiler deep litter system

(blank)

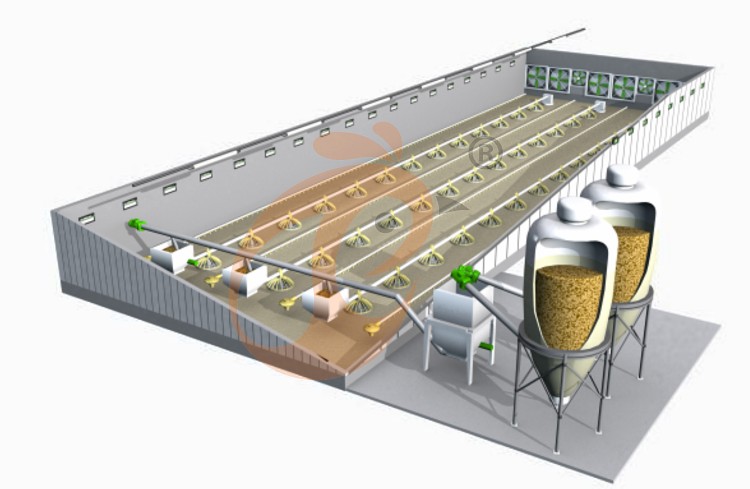

Layout of broiler deep litter system

(blank)

Size of broiler deep litter system

(blank)

Fittings of broiler deep litter system

Slide the table to view the complete content. The data is for reference only.

Material of broiler deep litter system

1. Litter turner blades: galvanized steel, wear-resistant.

2. Water supply pipes: PVC or stainless steel, safe for drinking water.

3. Fans: steel and aluminum alloy, durable under continuous operation.

Working principle of broiler deep litter system

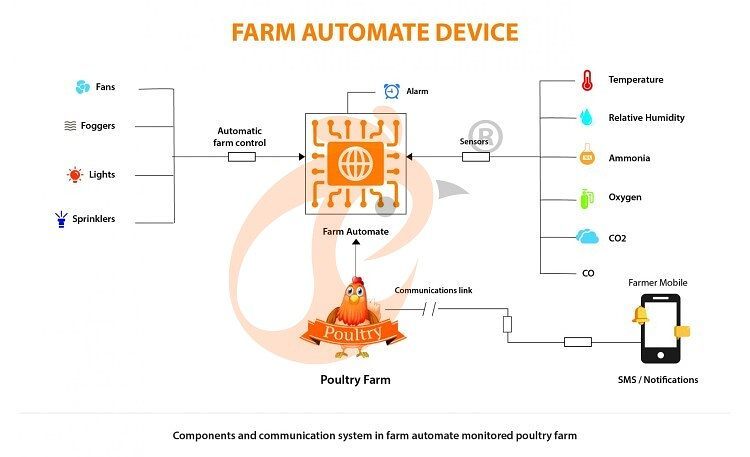

1. VCloud artificial intelligent fusion Fittings App

Poultry data on APP

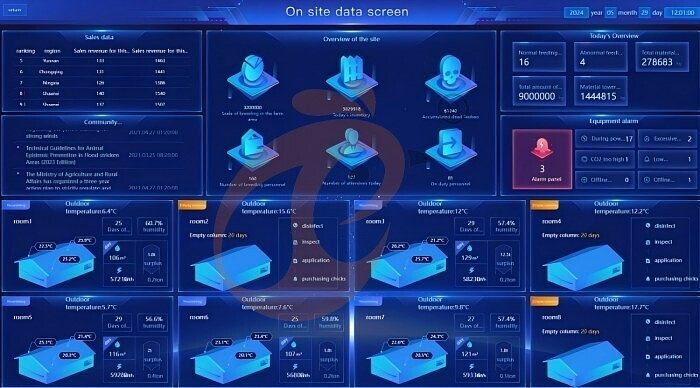

On site data screen

Fittings

• IoT sensors for temperature, humidity, ammonia, and CO2

• Feed and water flow meters

• Automated litter turner controller

• Mobile/desktop application for data visualization

Working process

• View real-time data on feed consumption, broiler growth rate, water usage, drug administration, house climate, and energy usage via mobile phone, iPad, or computer

• Send instructions to start, run, and shut down each automated device according to scheduled times

• Monitor equipment operation; alarms trigger and shut down devices if abnormal conditions occur (e.g., excessive humidity, litter moisture, or fan malfunction)

2.litter turner

Fittings

• Motorized rotating blades

• Adjustable height frame

• Safety sensors and limit switches

• Remote control interface integrated with App

Working process

• Turn and aerate litter according to preset schedules

• Adjust rotation speed based on litter depth and moisture readings

• Automatically stop if obstacle detected or sensor signals abnormal operation

• Data feedback sent to App for historical tracking and adjustment

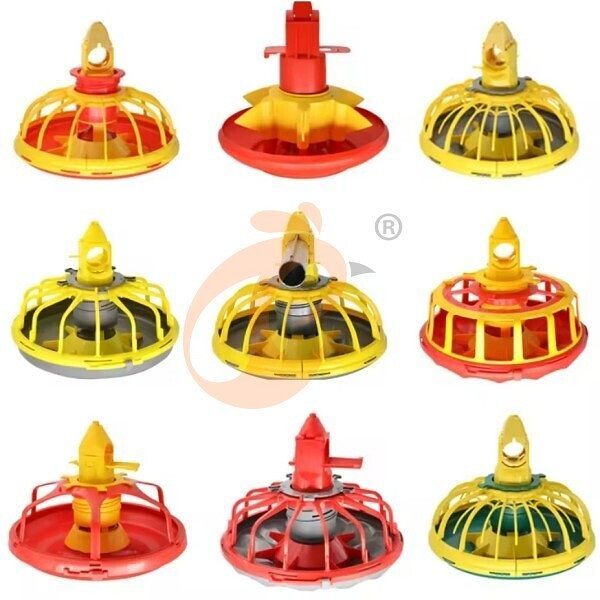

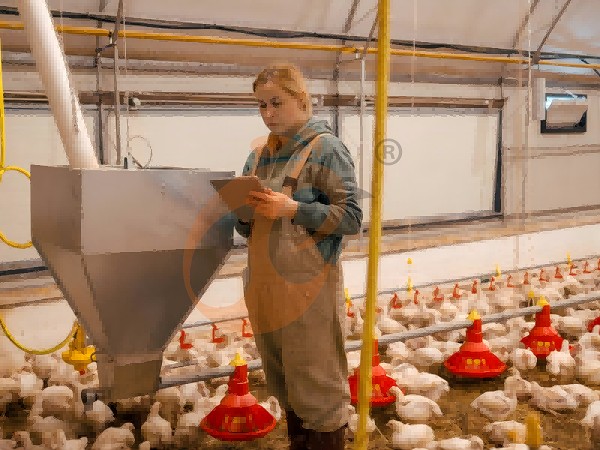

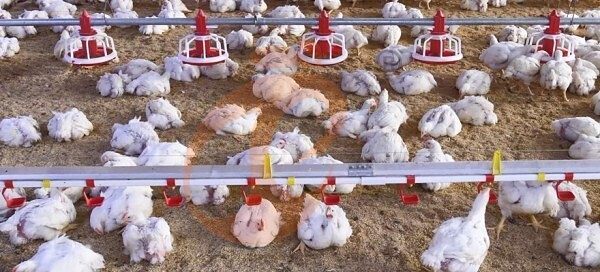

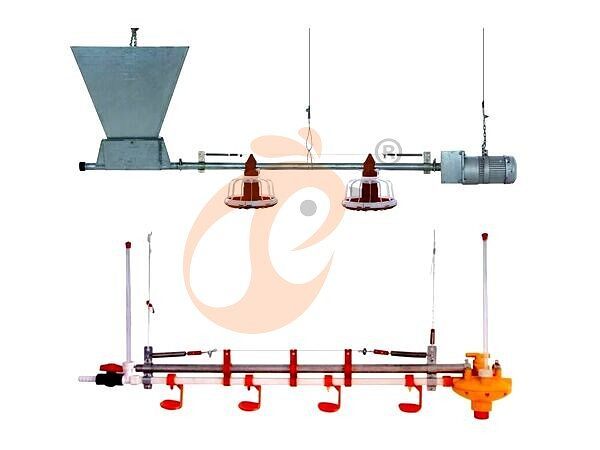

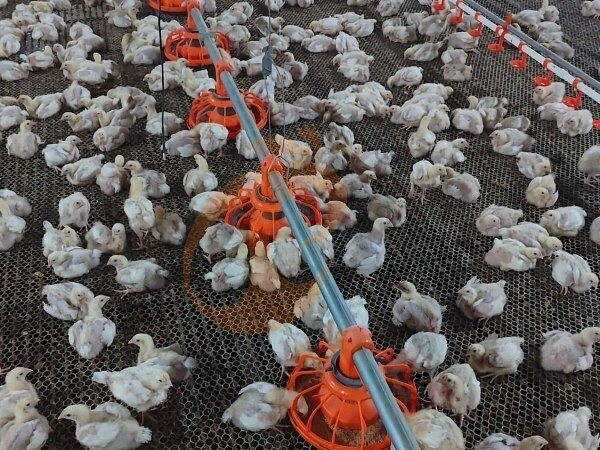

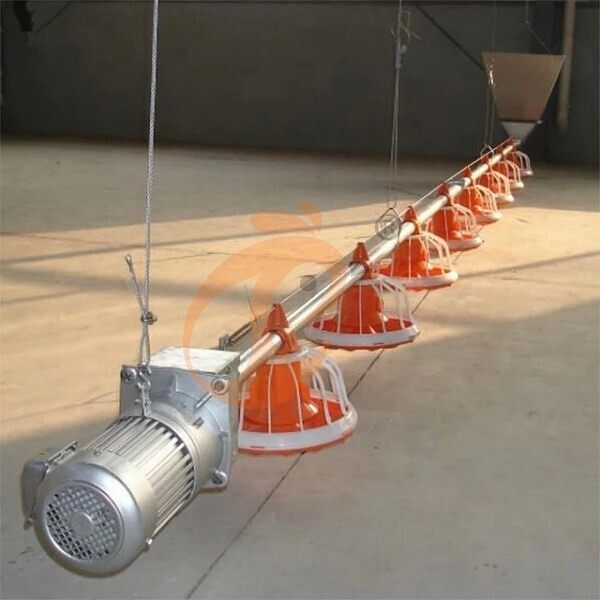

3.Smart feeder system

Fittings

• PVC feed line with adjustable length

• Motorized feed distributor

• Level sensors in hopper

• Integration with IoT App

Working process

• Feed delivered to all lines evenly according to programmed schedule

• Sensors detect feed levels and trigger refilling automatically

• Feeding logs recorded in App, allowing monitoring of feed intake per bird

• Alerts sent if motor failure or blockage occurs

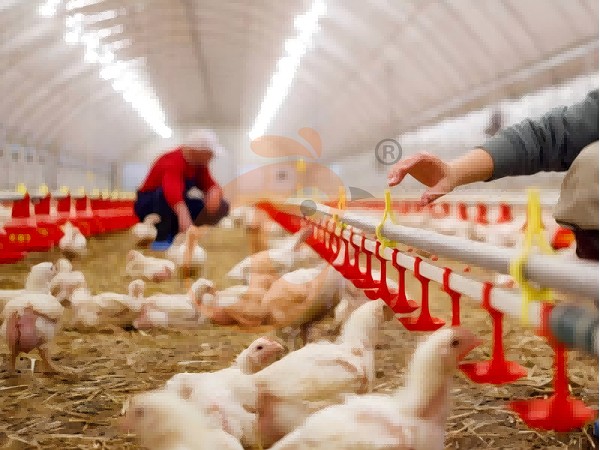

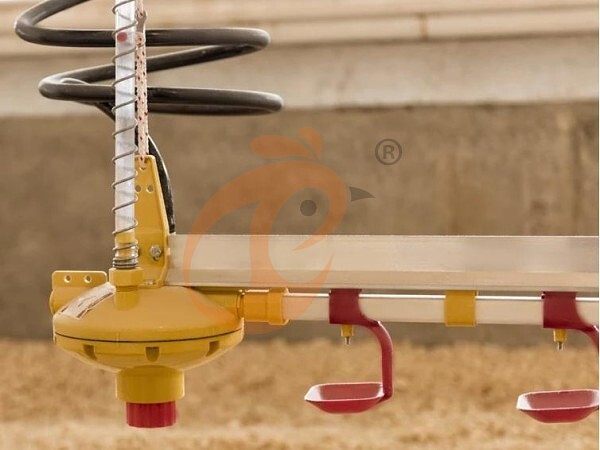

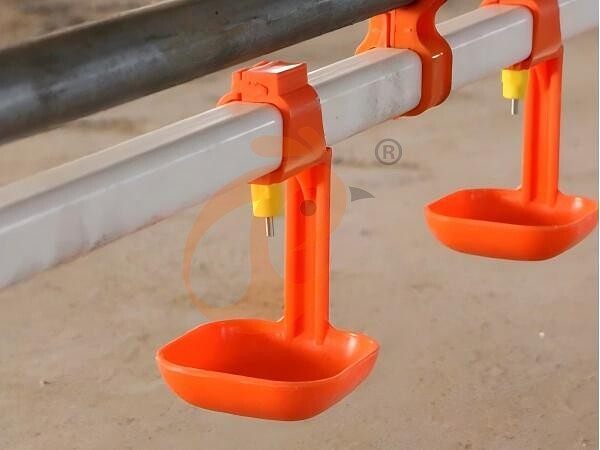

4.Height-adjustable drinker system

Fittings

• Nipple drinkers with flow regulators

• Water supply lines with pressure control

• Connection to central controller

Working process

• Maintain water pressure within optimal range

• Automatically adjust height according to bird growth stage

• Monitor water consumption and detect leaks or blockages

• Alerts sent to App when abnormalities occur

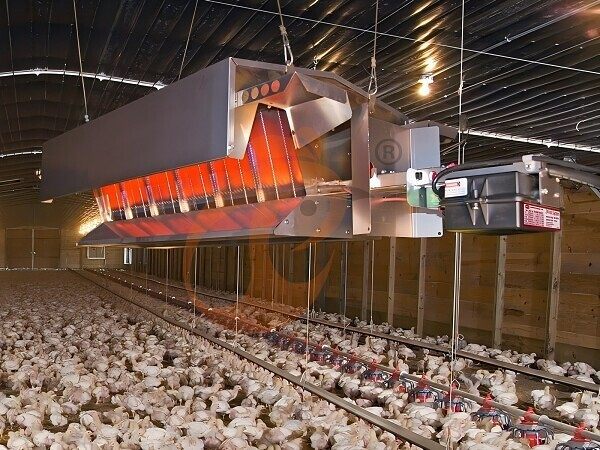

5. Smart Heating System

Fittings

• High-efficiency electric heaters or gas hot air heaters (optional)

• Multi-point temperature sensors installed at bird level

• Hot air circulation ducts and air outlets

• Overheating protection and automatic power-off module

• Intelligent controller integrated with the VCloud IoT App

Working process

• Automatically starts and stops heating equipment based on real-time house temperature and preset target values

• Operates mainly during brooding stages, cold weather, or nighttime to maintain stable house temperature

• Works in coordination with ventilation fans to ensure uniform heat distribution and avoid hot or cold spots

• Triggers alarms and enables remote shutdown in case of temperature abnormalities or equipment faults

• All operation data and energy consumption are uploaded to the App for historical tracking and system optimization

Maintain of broiler deep litter system

1. Turn litter every 2–3 days to maintain aerobic conditions.

2. Adjust fan speed and side curtains according to flock size and seasonal changes.

3. Monitor feed and water daily; analyze trends for early detection of health issues.

4. Clean feeders and drinkers weekly; inspect litter turner and fans monthly.

5. Record environmental data to optimize house management for the next flock cycle.

Packaging, shipping and installation

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

3. Engineers with rich project experience are available to serve you at any time.
