Our case in American poultry farm

Brief introduction

This project is our company's European quality in American poultry farm,

• This poultry farm project was finished in 2005.

• Automatic 8 tiers of chicken cage system, poultry house ventilation system, and so on.

• Using for more than 20 years, although the equipment looks old, it is still sturdy and durable.

• Pictures were taken in 2020 when our engineer visited this poultry farm on the fifth time.

We designed this poultry farm as customer's following request.

• He hopes to have a modern poultry farm, operates automatically.

• Total 1,000,000 chickens 100,000 chickens per poultry house, 10 houses.

• The eggs are directly supplied to supermarkets.

Information of chicken house and chicken cage system

1. Building dimension: 95* 15* 7.7 meters

2. Number of chicken cage tiers: 8 tiers (4+ 4)

3. Number of chicken cage lines: 5 lines

4. Total section each line: 47 sections

5. Total section in one house: 235 sections

6. Chicken cage dimension (section): 1800* 1250mm

7. Cells/ tier: 6

8. Chicken cage dimension (cell): 600* 625mm

9. Birds/ cell: 9

10. Birds/ tier: 54

11. Birds/ section: 270

12. Sq.cm/ bird: 60* 62.5 cm/ 9 birds= 416.67 sq.cm

13. Total birds each house: 101,520 birds

14. Fittings

(1) Chicken cage system

(2) Automatic feeding system

(3) Automatic drinking system

(4) Automatic egg collecting system

(5) Automatic manure removal system

(6) Climate control system

(7) Lighting system

(8) Chicken house control system

(9) Installation tools

Equipment of this poultry farm

1. Equipment outside the chicken house

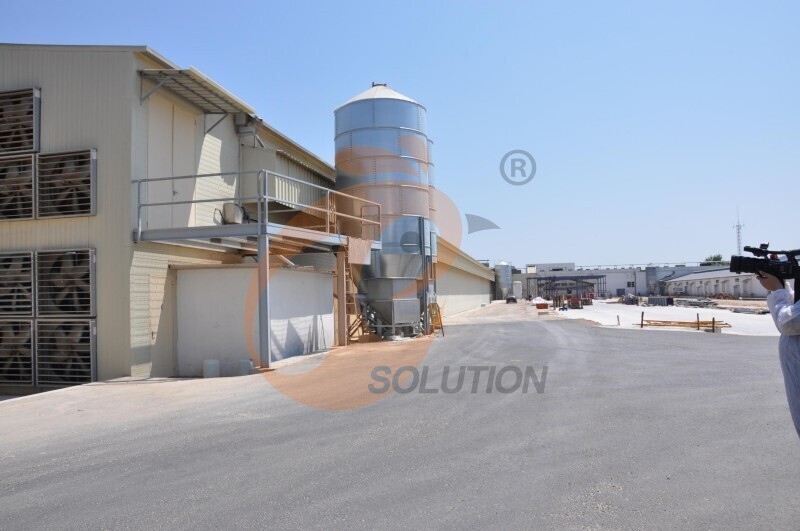

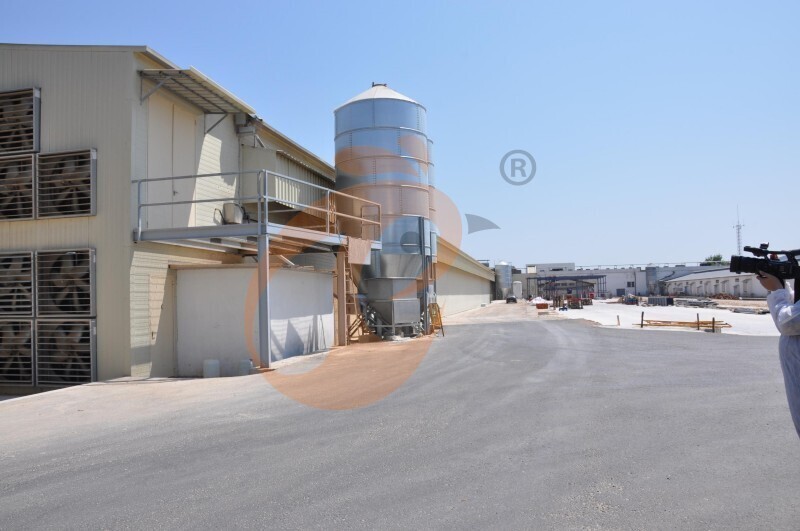

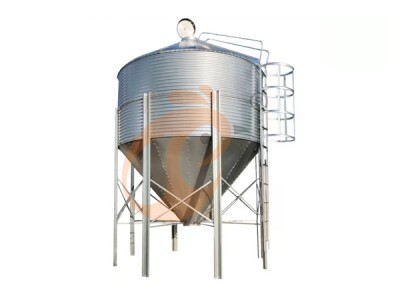

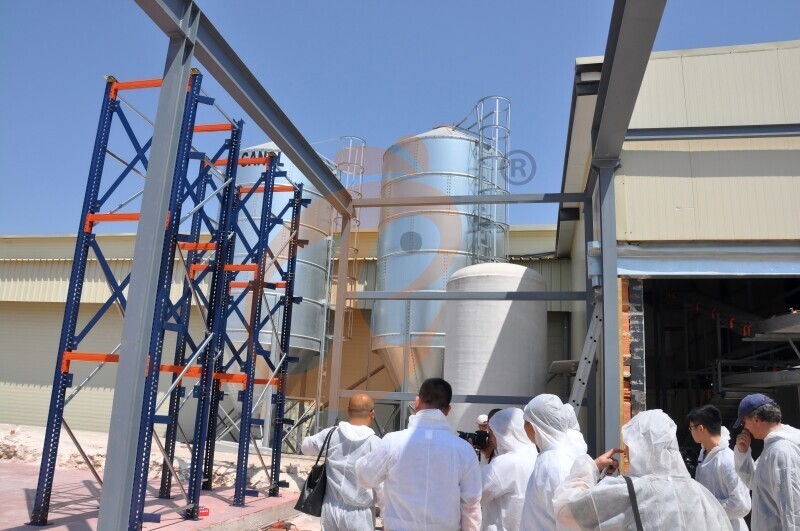

Feed silo

• Two pieces fixed in the beginning and ending of per poultry house. It is connected to the automatic feeding hoppers inner chicken house by augers.

• Weighing device is available, worker records daily chicken feed consumption, to make adjustments to feed quantity for getting even chicken weight.

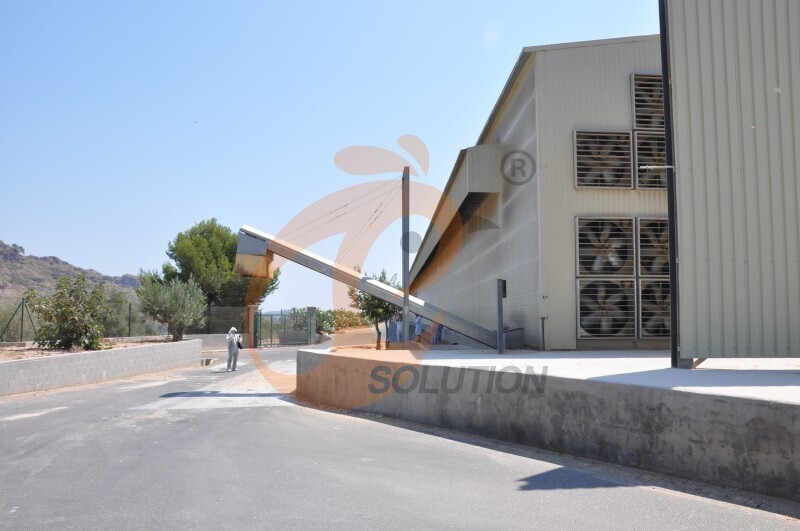

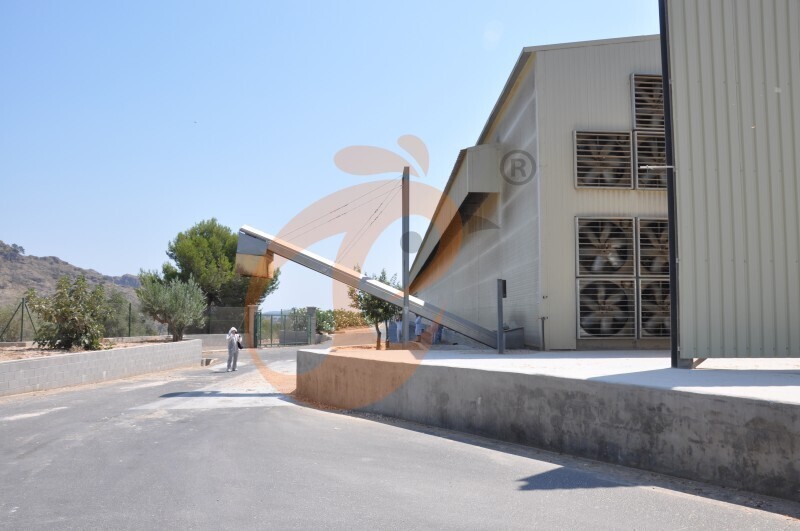

Manure convey system

• The horizontal belt inside the chicken house, the slanting belt outside the chicken house.

• The horizontal belt takes the chicken droppings out of the chicken house and the slanting belt can take the chicken droppings to the truck directly.

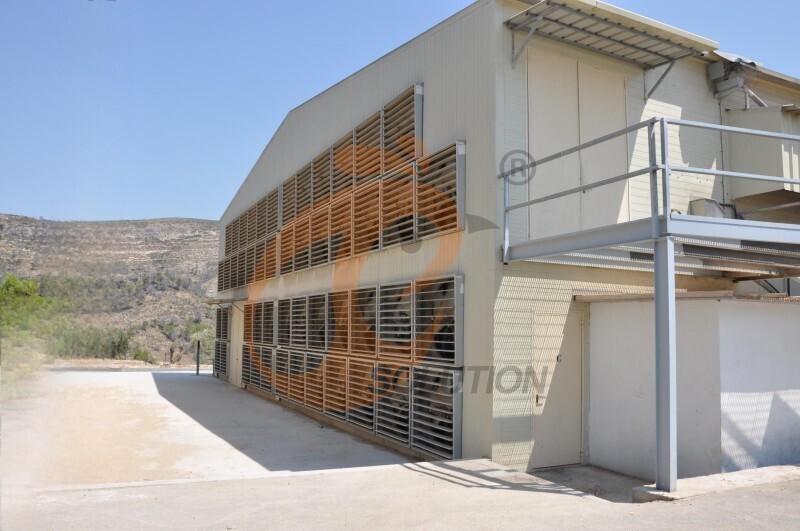

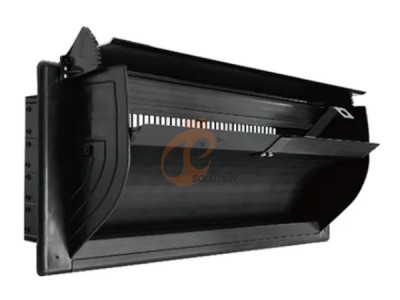

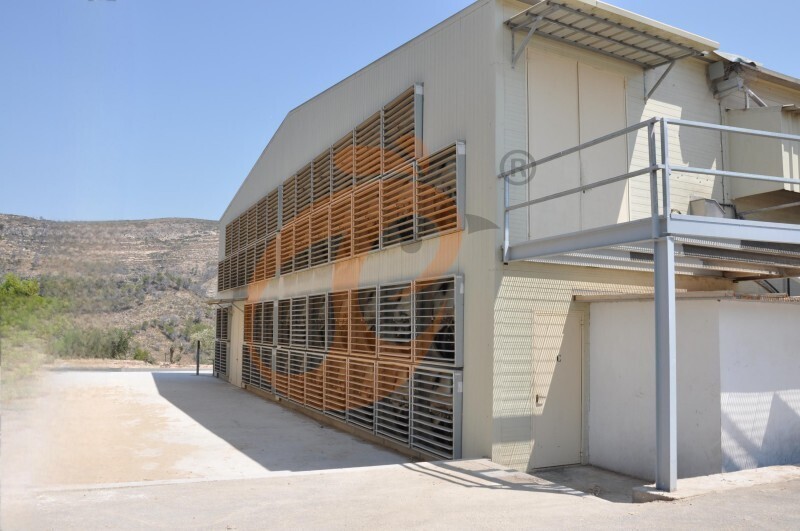

Ventilation system - Fans

• The whole system includes an exhaust fan, cooling pad, deflector, and air-inlet windows.

• The exhaust fan and cooling pad can maintain an optimum temperature range(13″C -26″ C), the best is 22C. Proper temperature can improve the feed conversion ratio, and increase egg production.

• Above 26 degrees, it will increase the difficulty for chickens to dissipate heat, which will lead to stress response and increase mortality.

• Above 43″C, all the chickens will die. Exhaust fan and air-inlet windows make sure fresh air come in, and bring out harmful gas like ammonia gas, ammonia gas which will cause respiratory disease.

• Deflectors change cool air direction, to prevent chickens from catching cold.

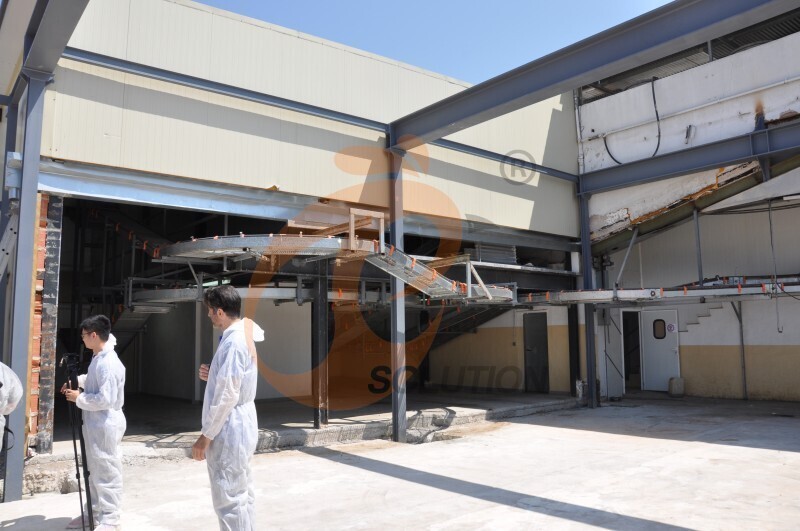

Egg collection system

• Egg conveyor system fixed in outside of all poultry houses and connected all poultry house to a line.

• Eggs are delivered to the egg storage room at last.

2. Equipment inside the chicken house

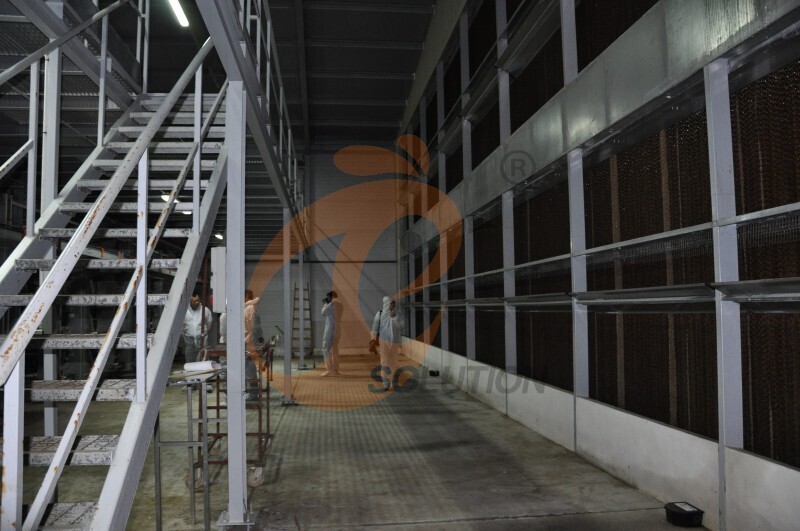

Ventilation system - cooling pad

• It cooperate with exhaust fan, deflector, and air-inlet windows fixed in different side walls.

• Maintain an optimum temperature range(13″C -26″ C).

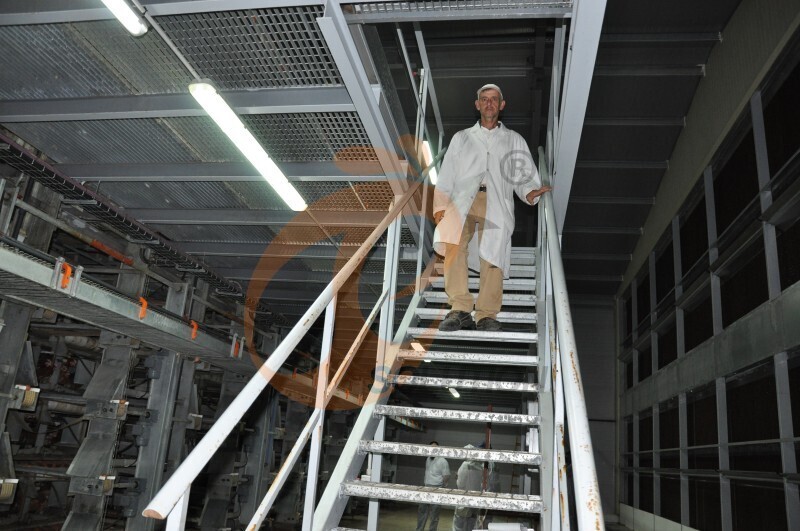

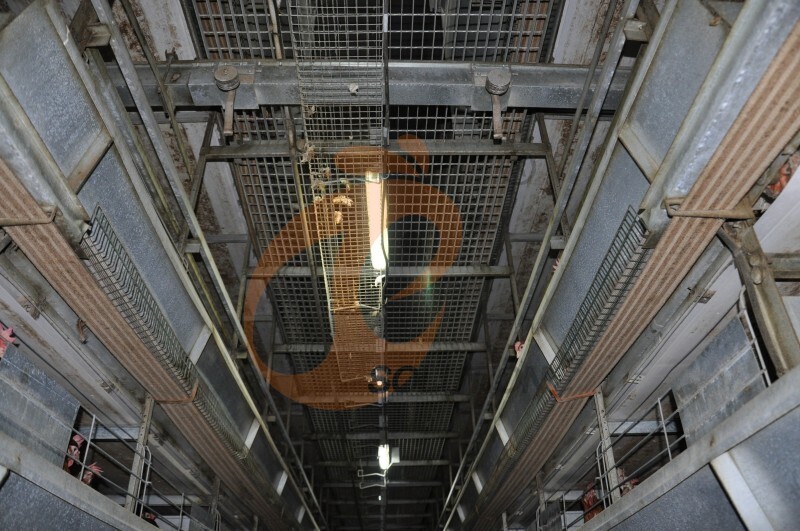

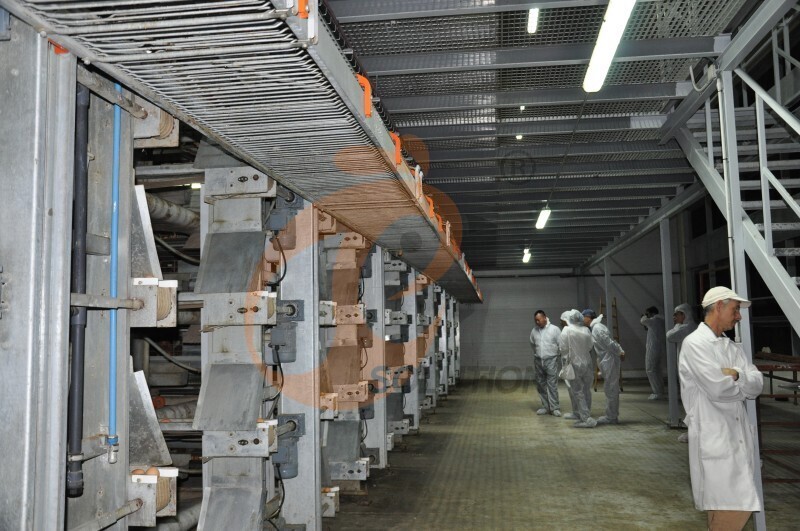

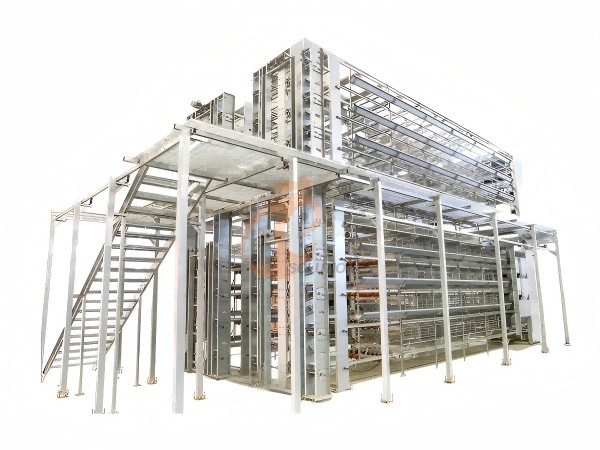

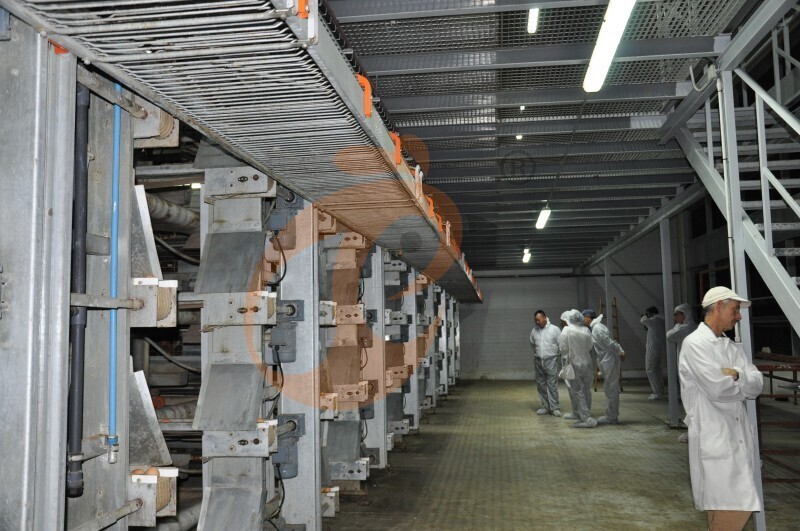

Middle floor

• There is a steel grating floor with stairs for workers walking in the middle of upper 4 tiers and lower 4 tiers.

• This structure greatly increases the number of chickens in a chicken house.

Feeding system

• It is combined with feed hopper, hopper frame and hopper track.

• The feed is stored in the silo outside chicken house, the feed is distributed automatically to the feed hoppers from the feed silos by the spiral augers (from South Africa with the best quality) installed in the steel pipe, feeding hoppers move and drop the feed from the beginning to the end of chicken house.

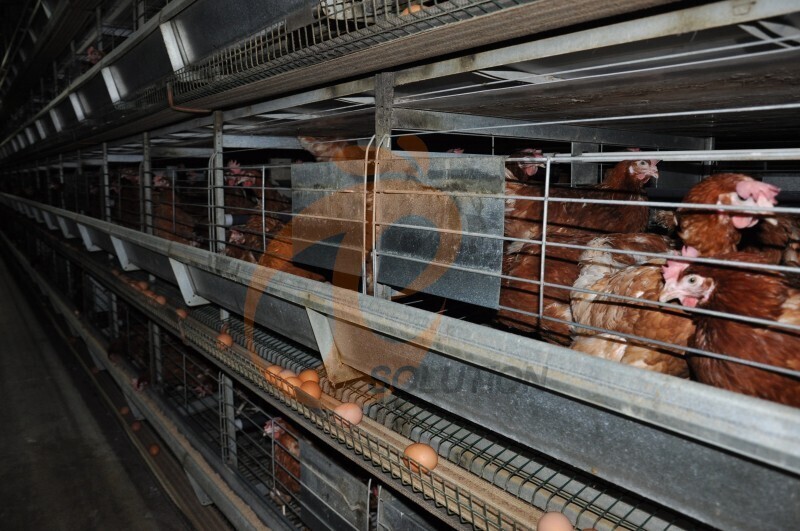

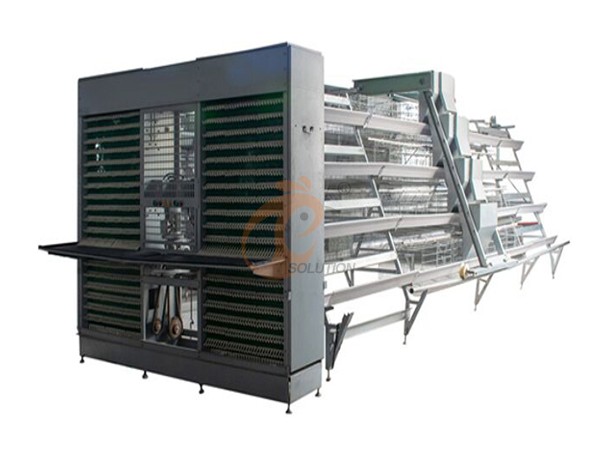

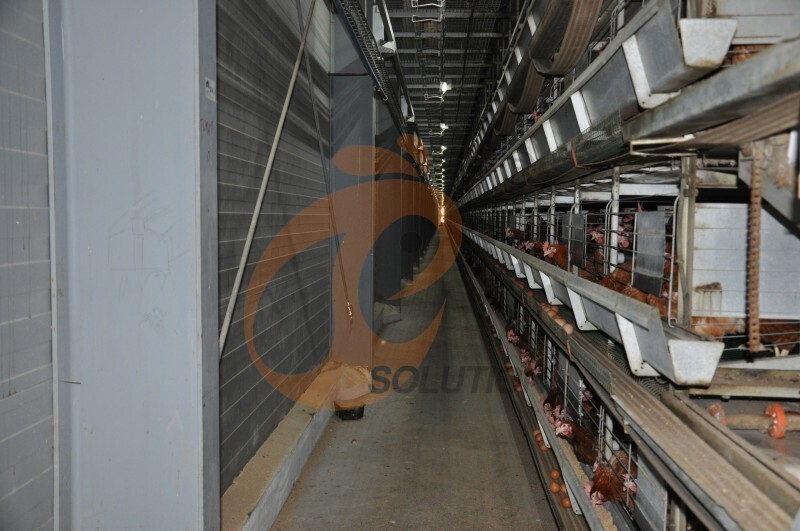

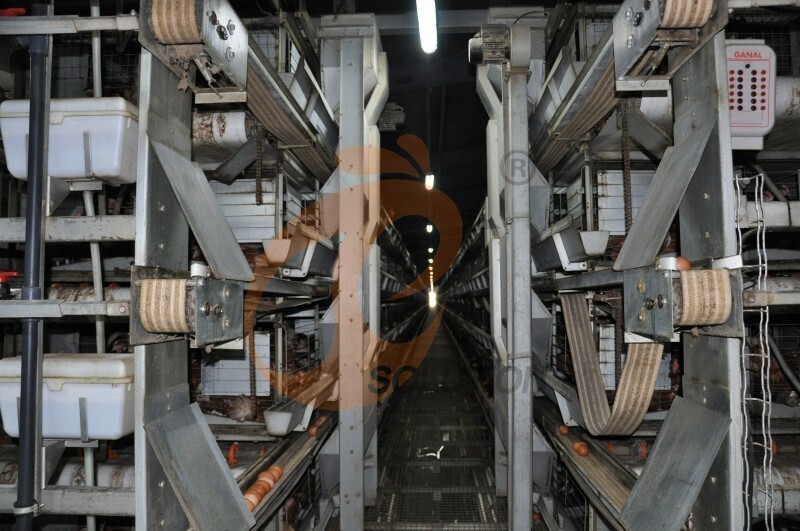

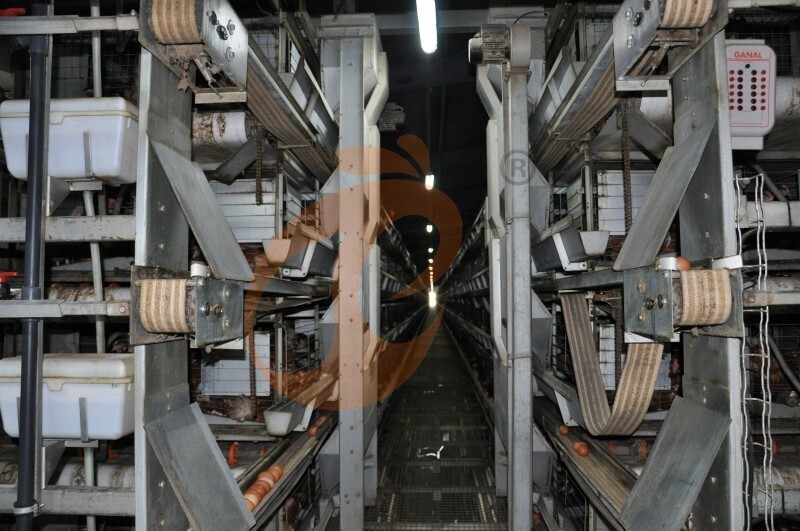

Egg collection system

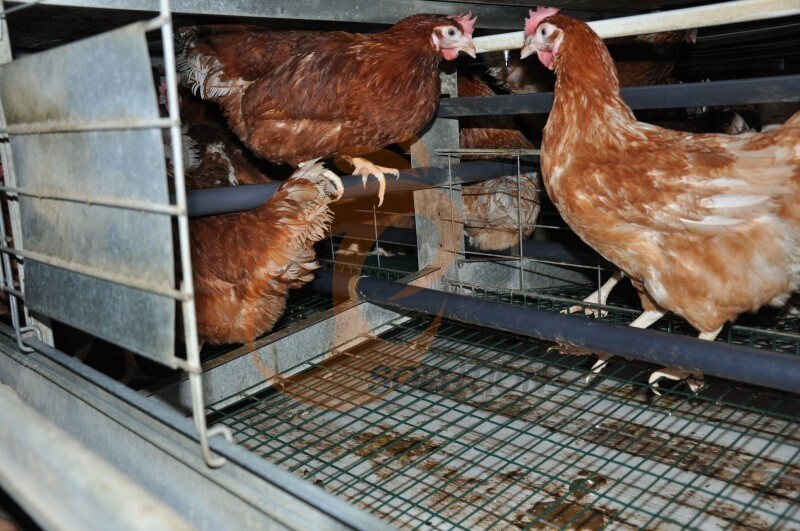

• Chicken drop eggs to bottom cage mesh, egg rolls to egg belt.

• Egg belt deliver all eggs to terminal egg conveyor lifting system inside of chicken house.

• Then to egg conveyor system fixed in outside of all poultry houses, eggs are delivered to the egg storage room at last.

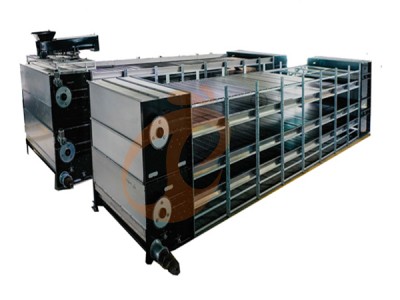

Chicken cage' s structure

• Stronger chicken cage frames

Support the cage body, connecting the upper 4 teris and the lower 4 teris.

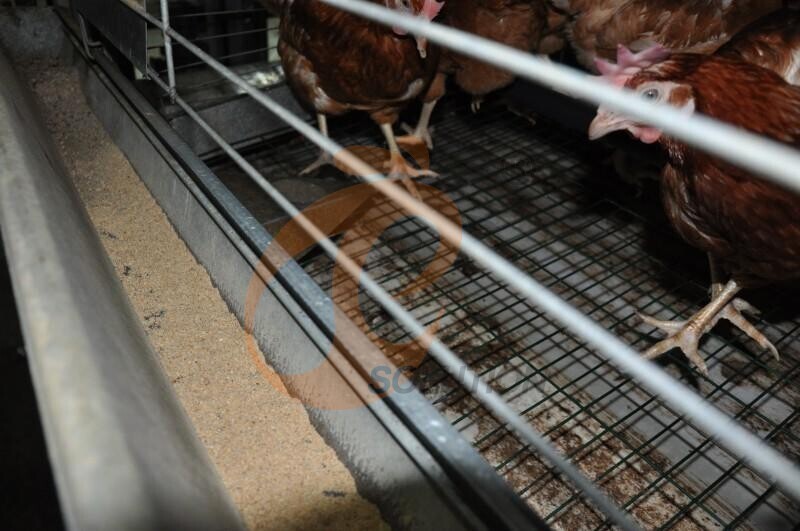

• Custom-made chicken cage meshes

• Whippier bottom chicken meshes

• Custom-made feeding troughs

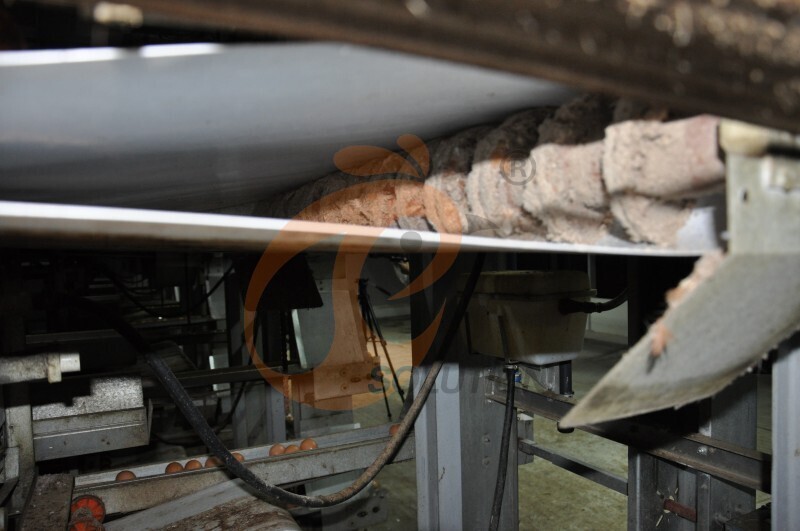

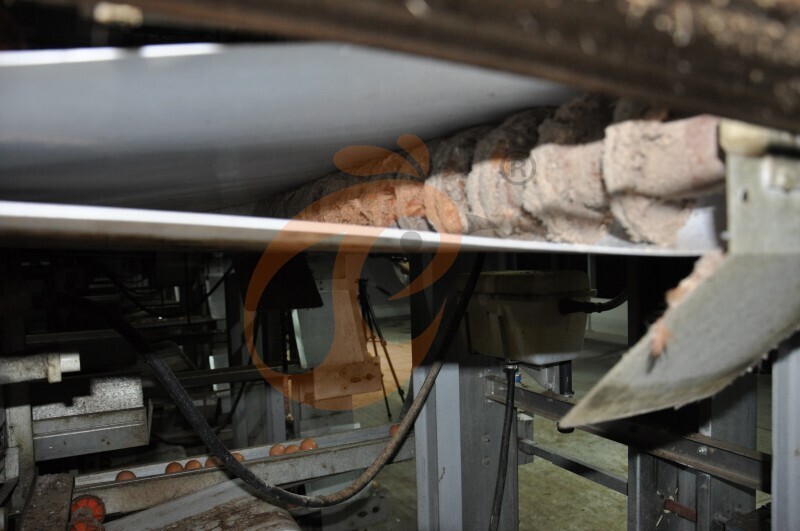

Manure convey belt system

• It is fixed under each tiers of the chicken cage.

• Chicken drops manure to the manure belt, the belt transfer manure to terminal lateral conveyor belt inside of chicken house, then delivered to the oblique conveyor belt outside of the chicken house, truck accept the manure from the oblique conveyor belt.

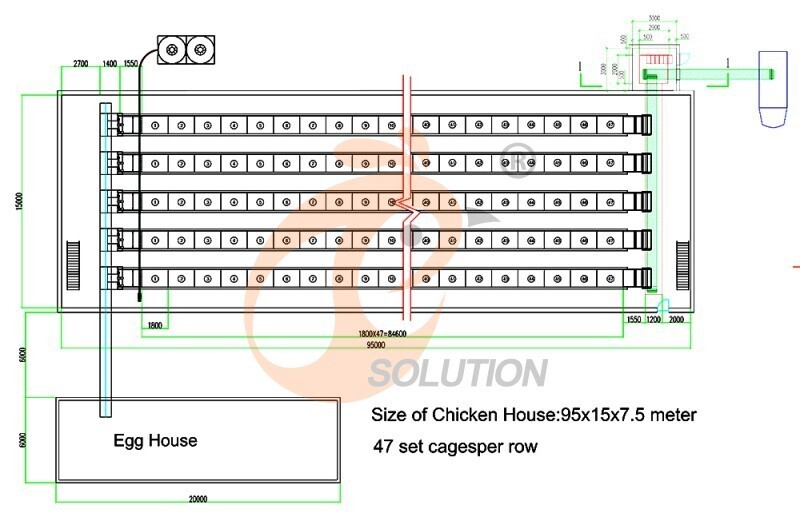

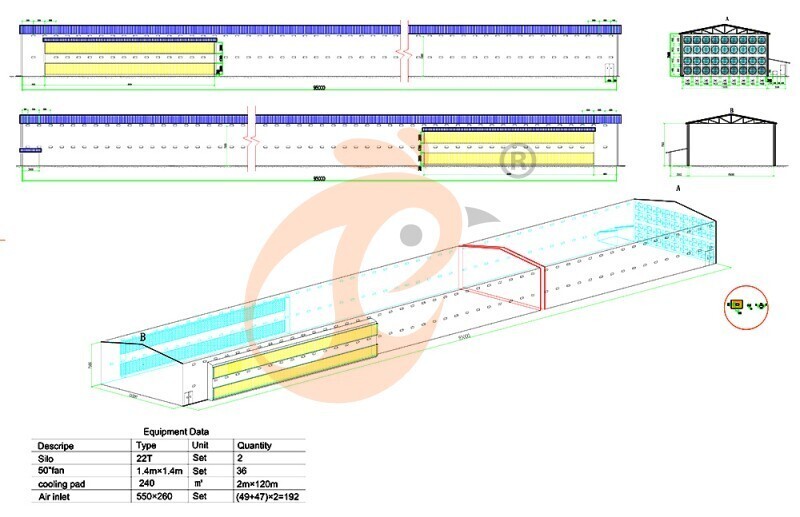

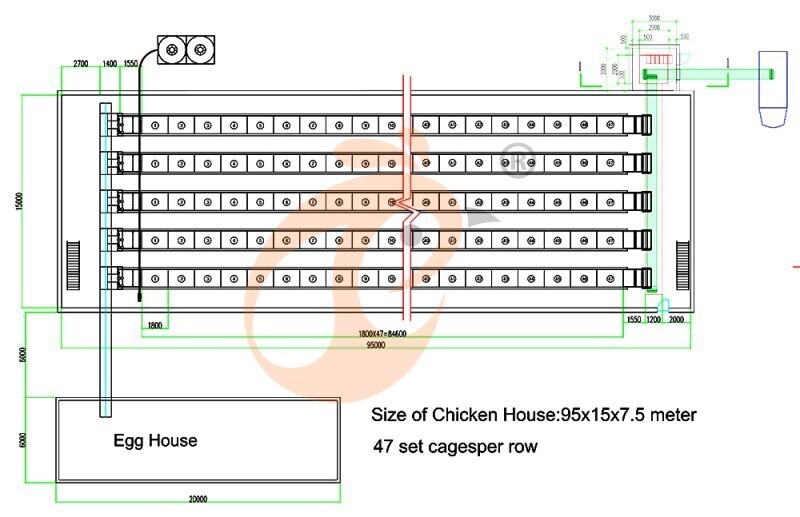

Drawing of per chicken house

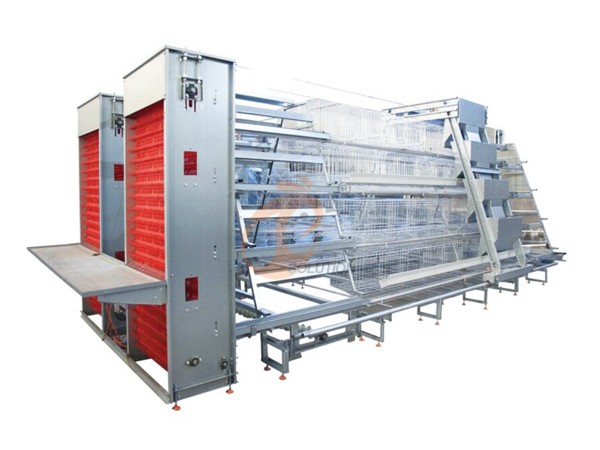

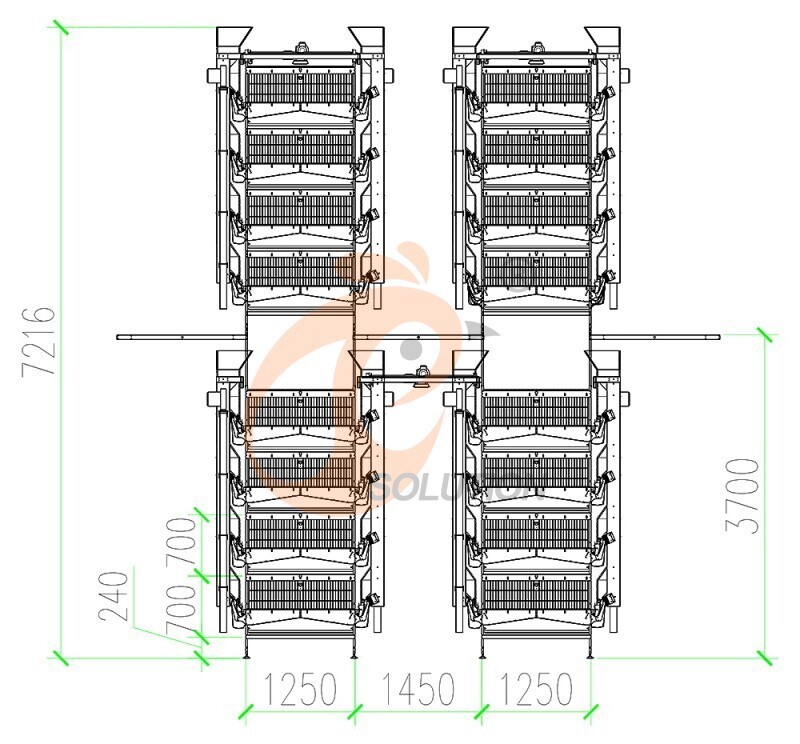

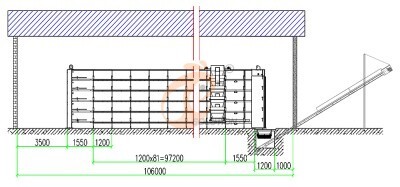

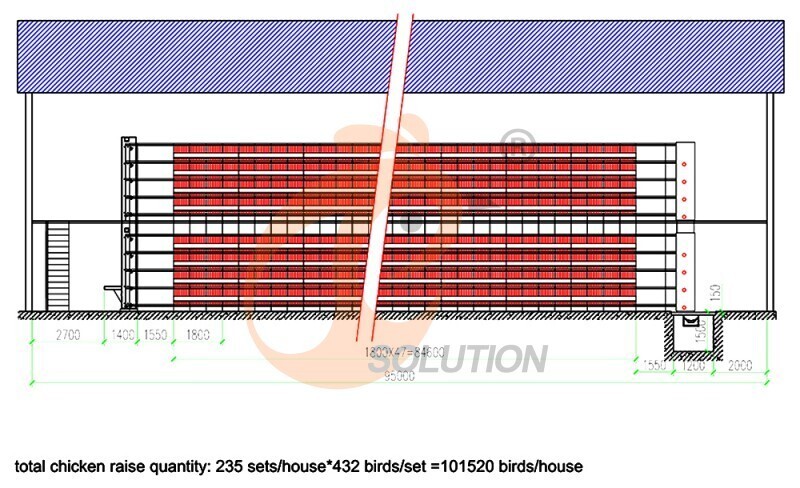

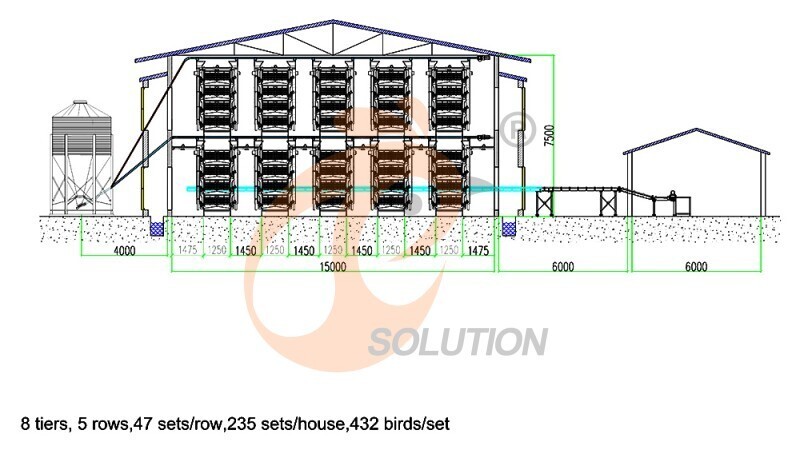

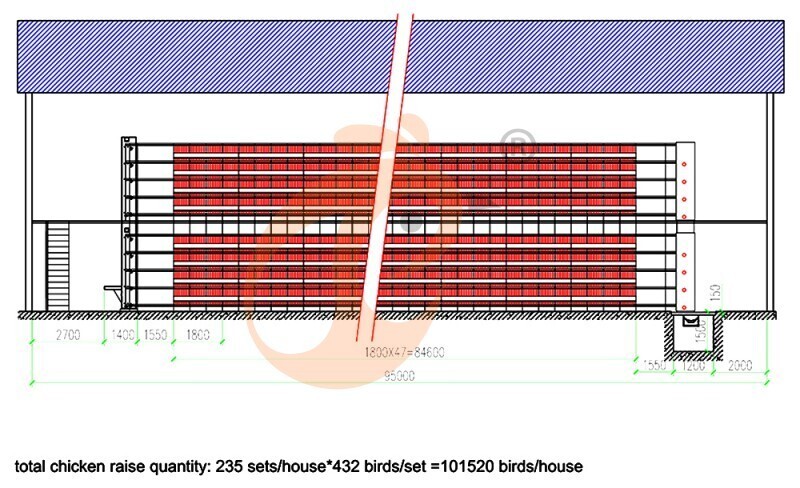

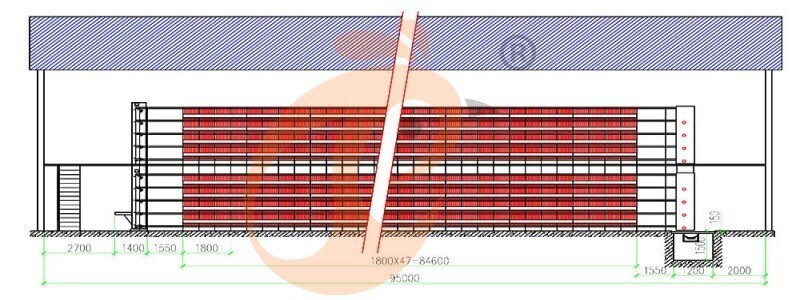

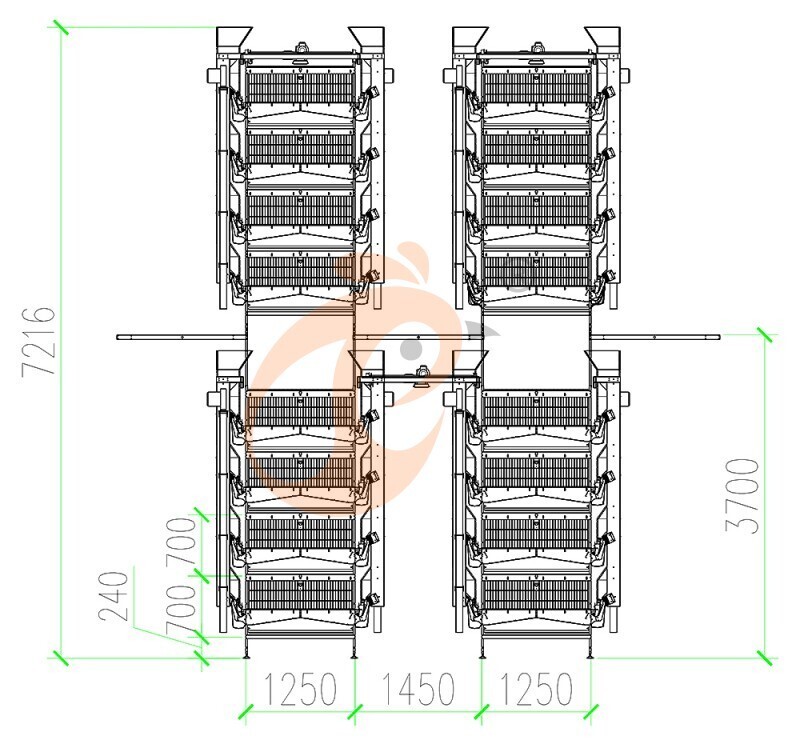

1. 8 tiers of chicken cage

2. Silo, chicken cages, egg collection

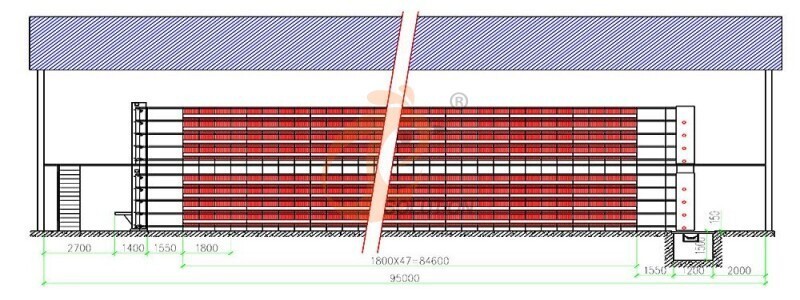

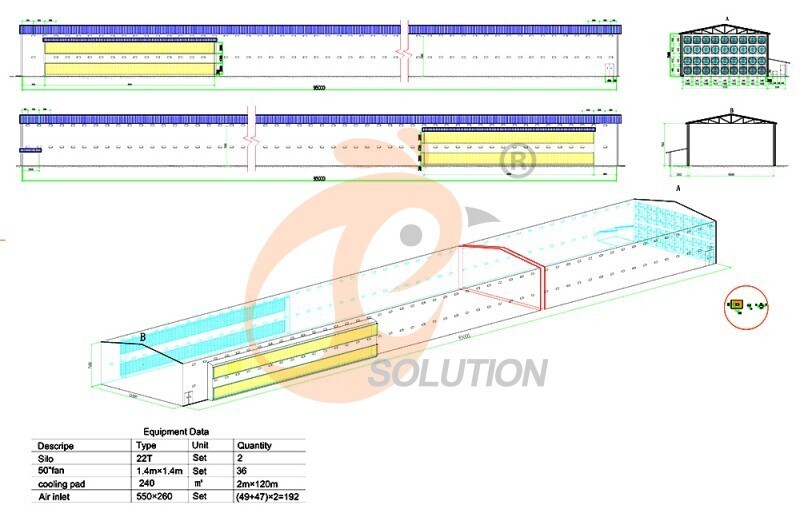

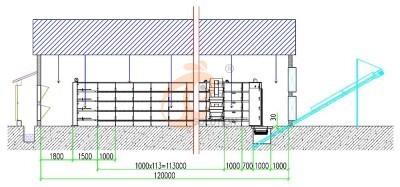

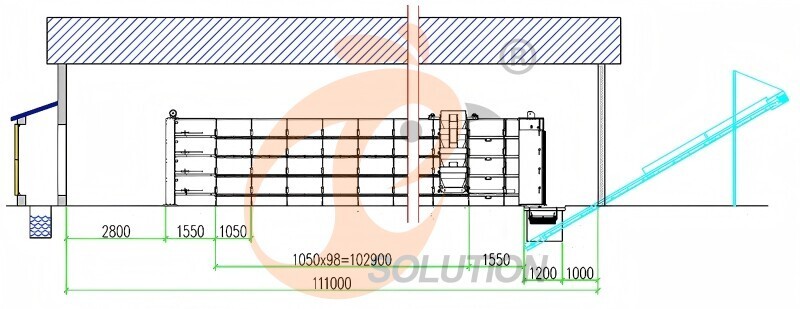

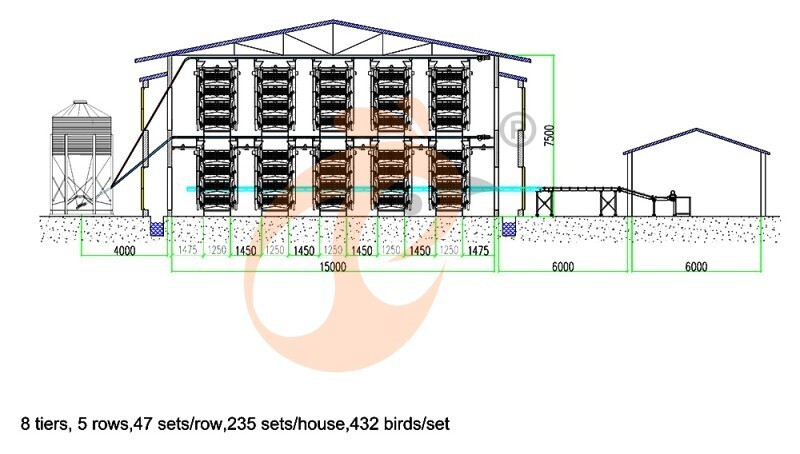

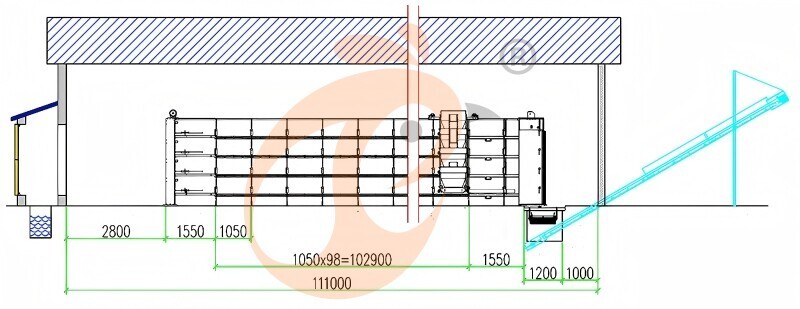

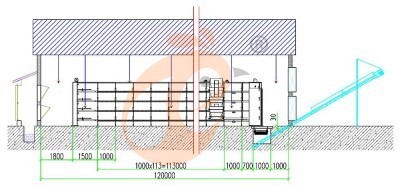

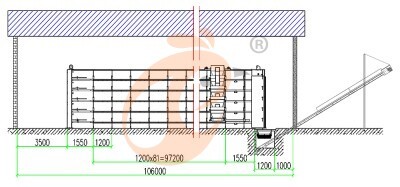

3. Longitudinal section of the chicken house

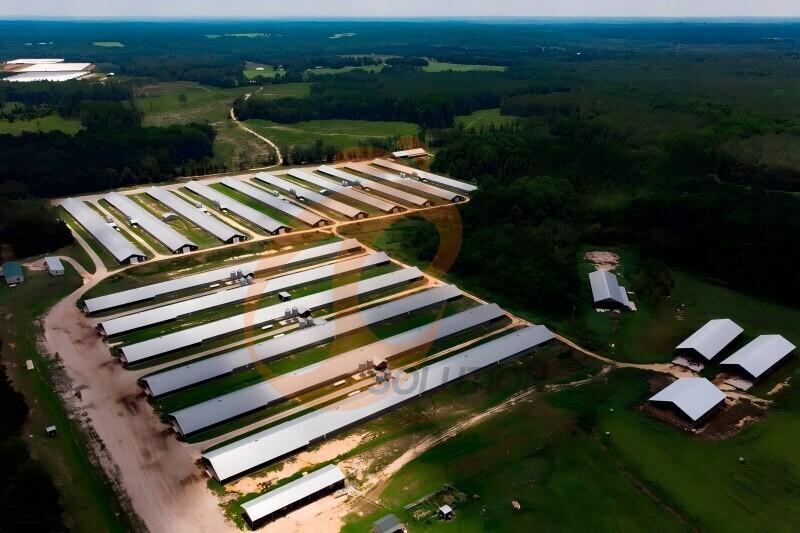

4. Aerial view of the whole system

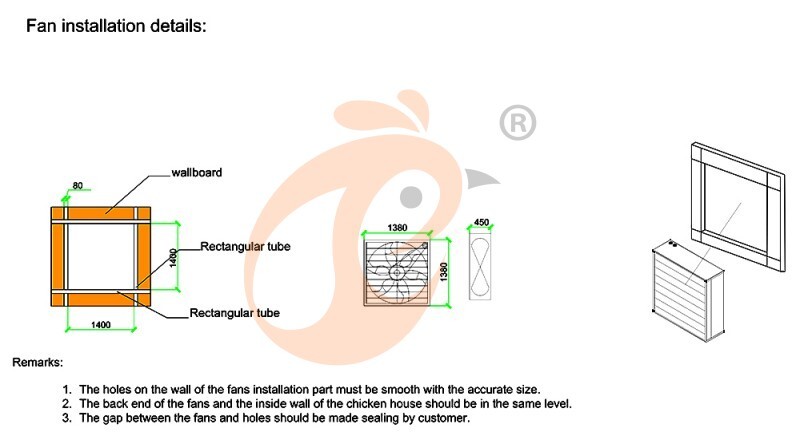

5. Ventilation equipment in the side walls

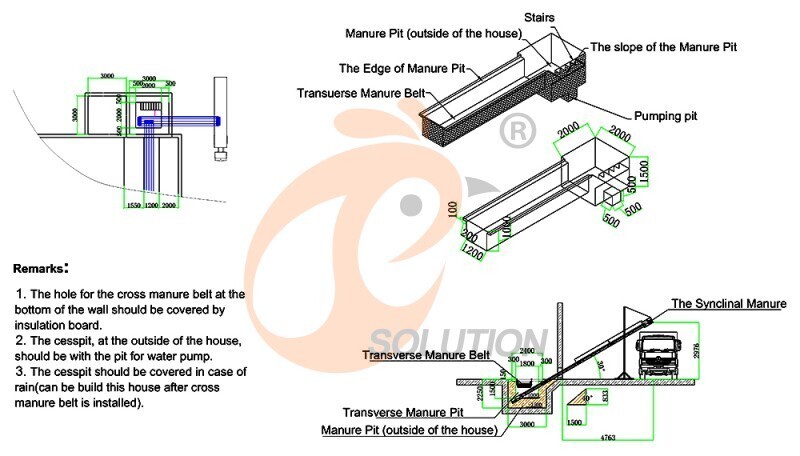

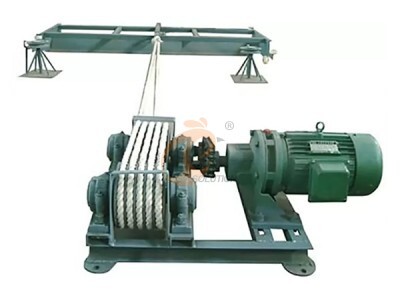

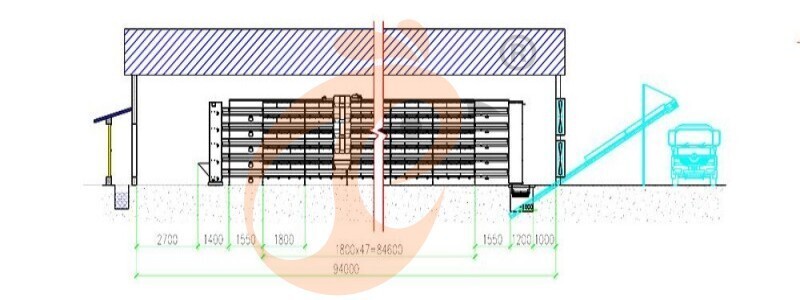

6. Manure removal system

Helpful detailed information

Our brief introduction

1. Headquarter and branchs are studying with each other, keeping continuous communication with Europe.

2. Our design and quality of poultry farm equipment and chicken poultry cage based on EURO standard.

3. Offer modern AI management poultry farm consulting and turnkey project.

• Hong Kong Headquarter Taiyu Industrial Group CO., LTD

• China Hebei Best Machinery And Equipment CO., LTD

• Nigeria Vanke Machinery And Equipment CO., LTD

• Tanzania Best Machinery And Equipment CO., LTD

• Ethiopia Best Hebei Machinery Manufacturing PLC

All-round service

We not only provide our customers with poultry farm solution, chicken poultry cage and poultry equipment,

but also share experiences with our customers, our Chinese and local engineers based in our branches.

• from design schemes of poultry farm turnkey project;

• customers visiting;

• product introduction;

• offer quotation;

• product manufacturing;

• delivery;

• installation;

• equipment maintenance;

• visiting customers and their poultry farms.

Tips of selecting chicken cage and poultry farm equipment

For reference only,

it depends on your actual demands and situation of your poultry farm.

Types of poultry farm equipment

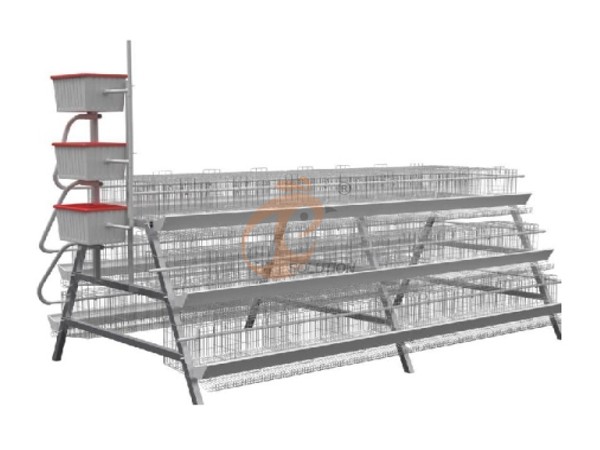

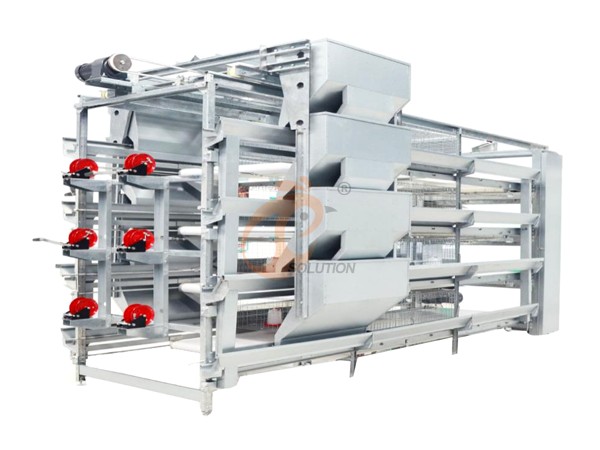

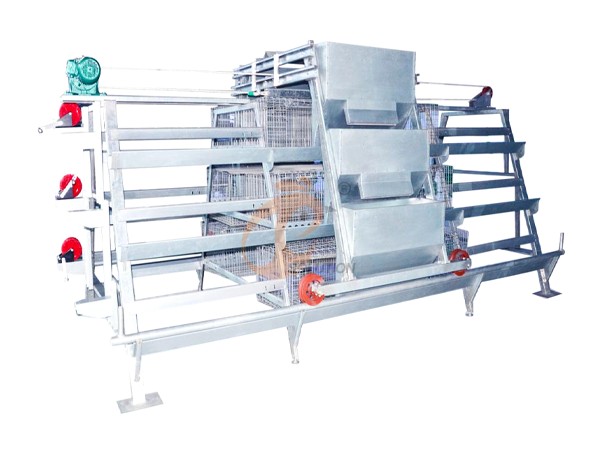

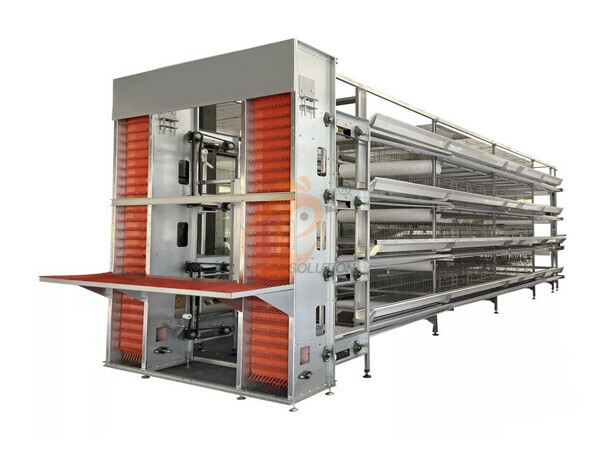

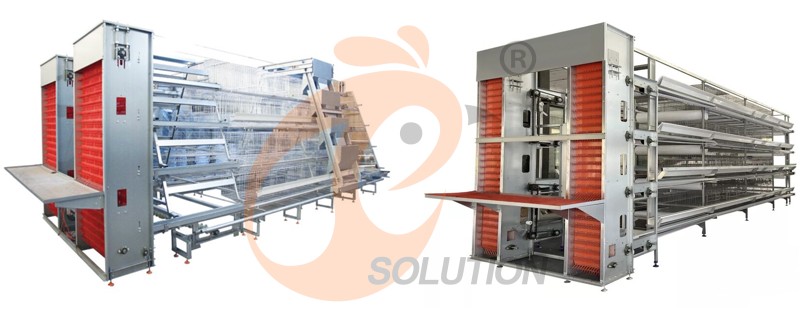

1. Chicken cage

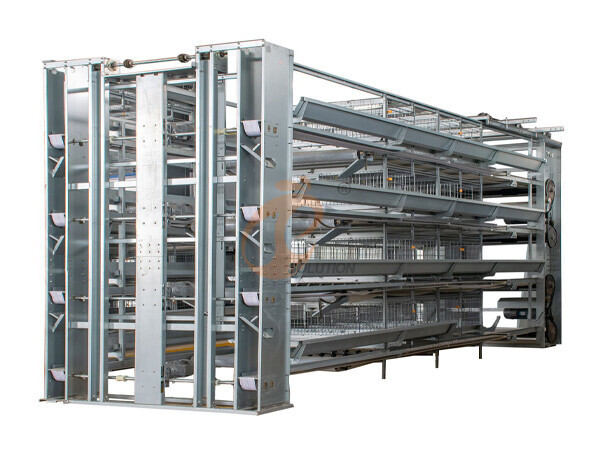

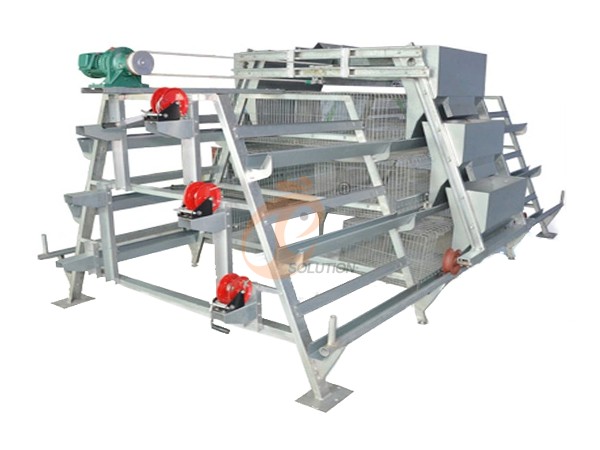

• Layer chicken cages increase the egg-laying rate of laying hens.

• Brolier chicken cages make broilers' weight increasing quickly to be ready for market.

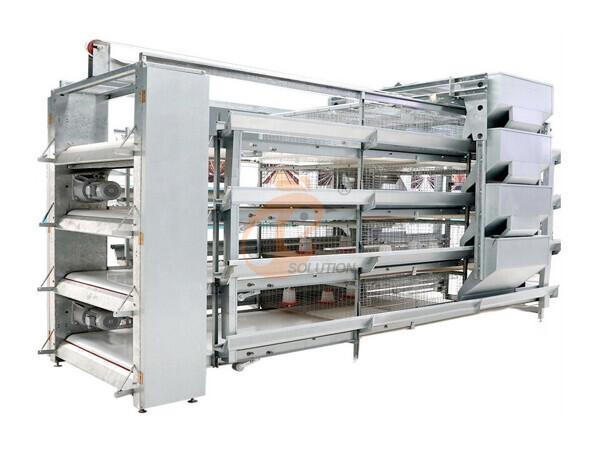

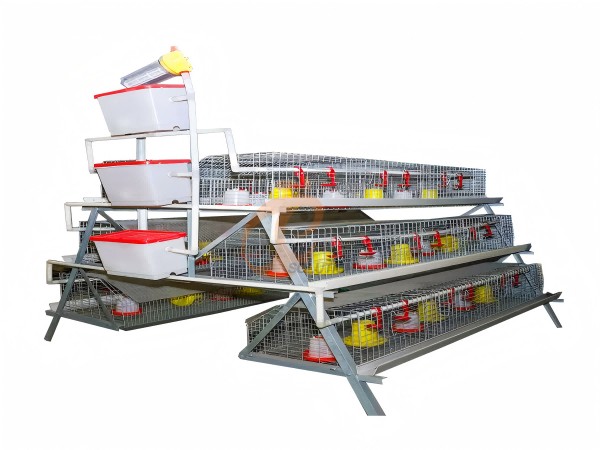

• Brooder chicken cages make the chicks growing fast to be ready for laying.

• Parent chicken cages increase the fertilization rate.

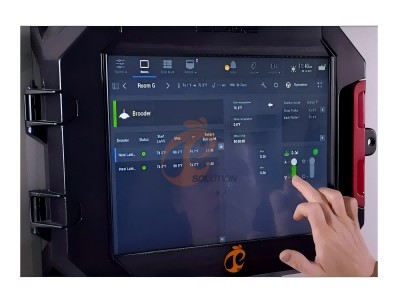

2. AI management of poultry houes and equipment

Artificial intelligent system to manage poultry houses and equipment efficiently,

you can view the data of all poultry houses and equipment at any time by mobile devices, computers,

such as feed usage, egg production and so on.

3. Feed equipment

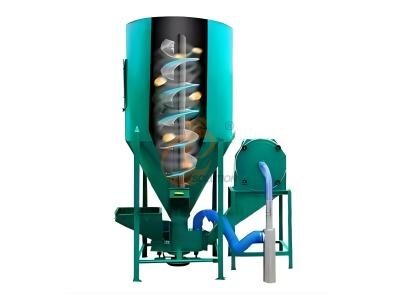

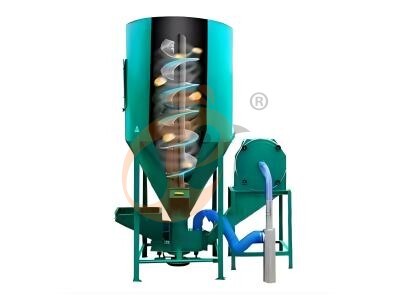

• Feed mill makes the animal feed comprehensive and balanced nutrition.

• Feed storage keeps the animal feed fresh.

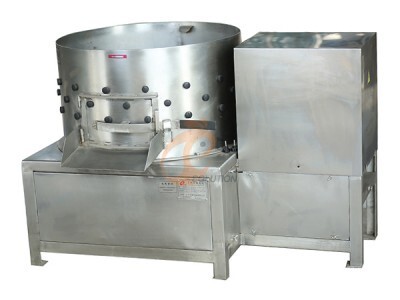

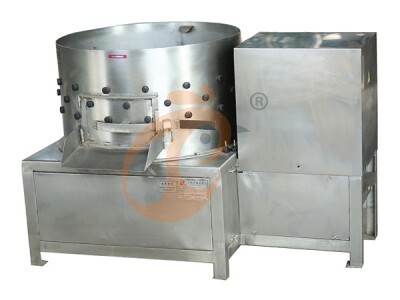

5. Slanghter

Meet the needs of small, middle and large poultry farms.

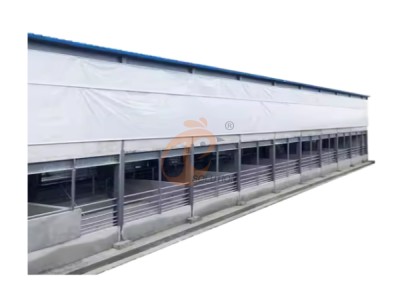

6. Equipment matching opening chicken house and closed chicken house

For your reference only, it is based on the actual needs of the poultry farm and customers.

Visit product to learn more...

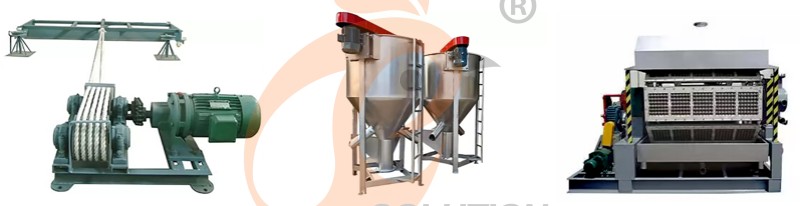

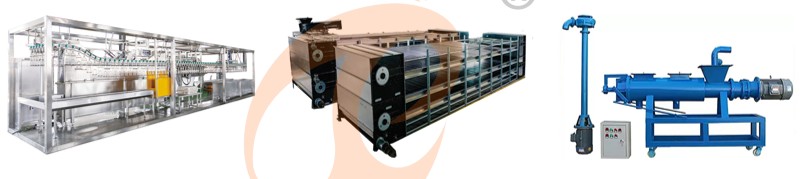

7. Other related equipment

For reference only,

it depends on your actual demands and situation of your poultry farm.

Visit product to learn more...

Offer modern poultry farm scheme

We use artificial intelligence to chicken cage, poultry farm equipment,

it makes poultry farm more intelligent and modern, such as

• AI-Powered recyclable poultry farm

• AI-Managed automatic chicken cage system

• AI-Managed poultry farm equipment

Offer chicken house' s size

• the length 10 to 120 meters

• the width 8 to 20 meters

• the height 3 to 20 meters

The specific dimensions are determined by the actual chicken poultry and poultry equipment.

Offer chicken house's drawing

Based on the length, width, and height of your chicken house,

or the capacity of your birds,

give sizes of working areas of the front, back, and passageway of chicken house.

The specific dimensions are determined by the actual chicken cage and poultry equipment.

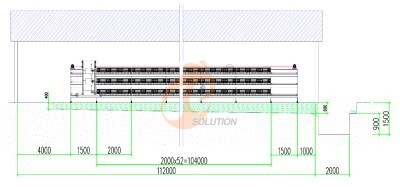

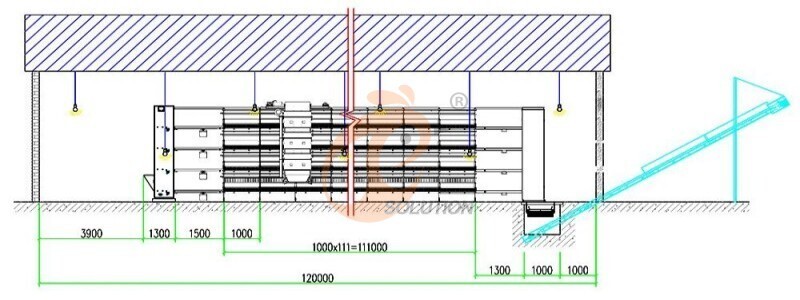

For example the following drawing of layers and brooders, for your reference:

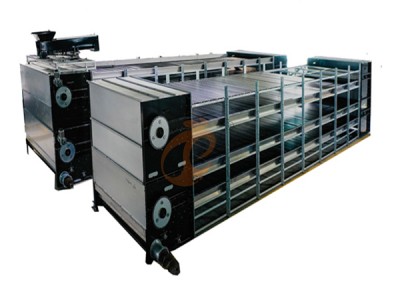

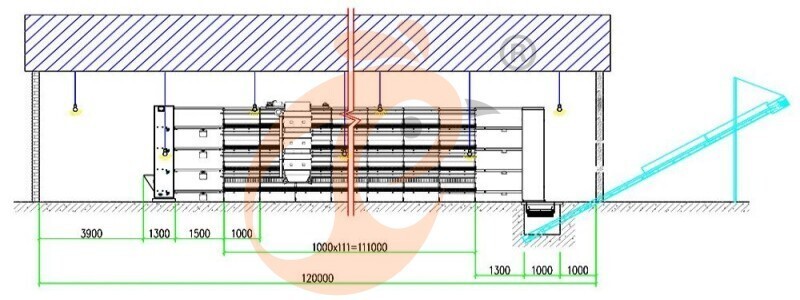

1. Layout of egg laying chicken cages

2. Layout of brooder chicken cages

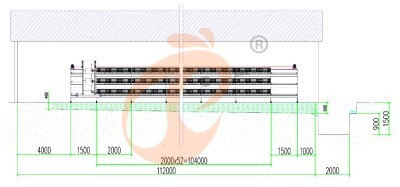

3. Layout of broiler chicken cages

50,000 broilers

Visit solution to learn more...

Six reasons to choose us

1. Multi-country branches, richer local experience

We have rich experience in offering overseas poultry farm solutions,

especially in Africa, we have set up branches and factories in Ethiopia, Tanzania and Nigeria,

also assist customers with transportation, customs clearance and installation.

The following are:

Our branches

2. European technology, personalized customization, lower price

The price of the same or similar European quality is 30% lower than that of Europe.

Our chicken cage and poultry farm equipment based on European design and quality standards.

Together with Euro technology, customizes chicken cage and poultry farm equipment based on

• the temperature and humidity of your countries

• the growth environment

• the weight of your local chickens

Some sample of cases:

American European standrad egg layer chicken cage, poultry farm

The following pictures are our company's European quality in American poultry farm,

automatic 8 tiers of chicken cage, feed mill and ventilation system,

using for more than 20 years.

Although the equipment looks old, it is still sturdy and durable.

Asian customized brooder chicken cage, poultry farm

Abu Dhabi' s customized chicken cage, ventilation system, poultry farm

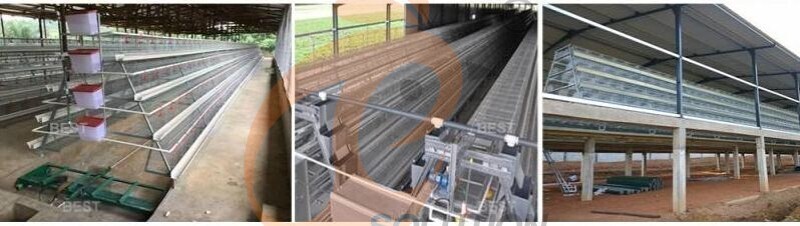

African customized chicken cage, poultry farm

3. Efficient collaboration of our departments

Our teams

• Our company's departments include the service department, R&D department, sales department, production department, and logistics department (including packaging, logistics, installation, etc.).

• These departments' working collaborates with each other to provide customers with one-stop efficient solutions and service guarantees at different stages of orders.

Our stock

• The four branches always have sufficient inventory.

• Even during the busy season, we can still deliver goods on time.

Our production

• We own strong production strength, not only in China branch, but also in branches of Ethiopia, Tanzania and Nigeria.

• The factory has welding machine, bending machine, straight wire machine, injection molding machine, spraying line, galvanized line and so on.

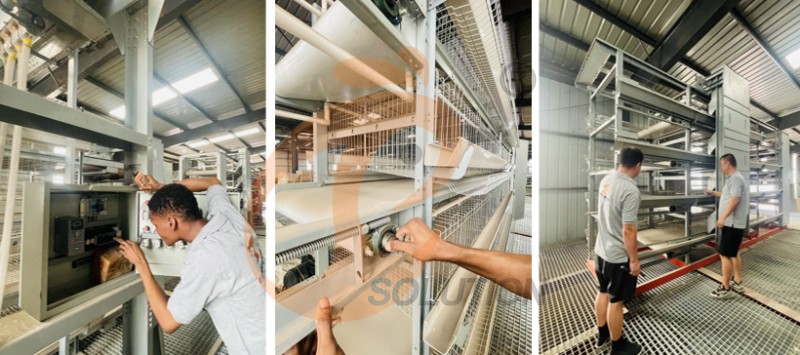

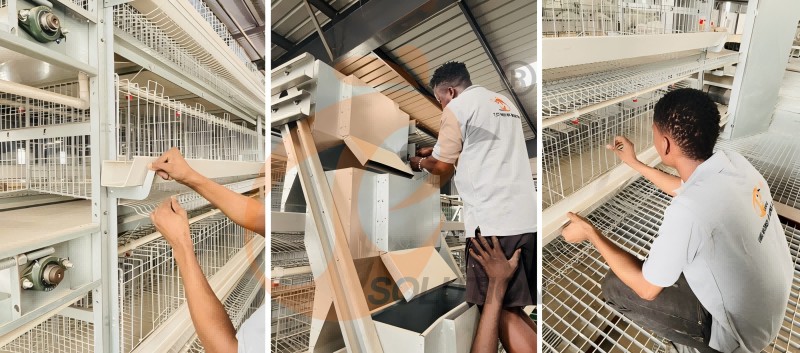

Our transportation and installation

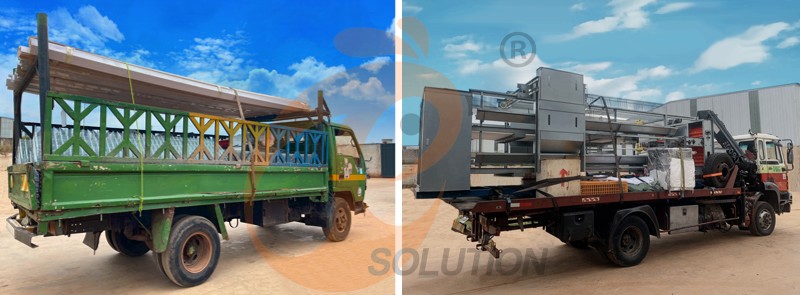

Offer transportation, customs clearance and installation

• Local service of transportation and installation in Ethiopia, Tanzania and Nigeria.

• Package, shipment to other countries.

Installation guide will be sent by email if you importing chicken cage or poultry equipment from China branch; we will send engineers of customized orders.

4. Product diversification strategy

With the expansion of your poultry farm, you will need more equipment, we can always equipped with the latest equipment based on your original equipment.

for example, with the application of AI system in the farm,

our customers begin to use AI system to efficiently manage poultry farm, can at any time on mobile devices, computers to view all the farm data,

such as feed usage, egg production and so on.

5. Keep pace with The Times

• We attend international forums, livestock industry associations, industry exhibitions, etc every year.

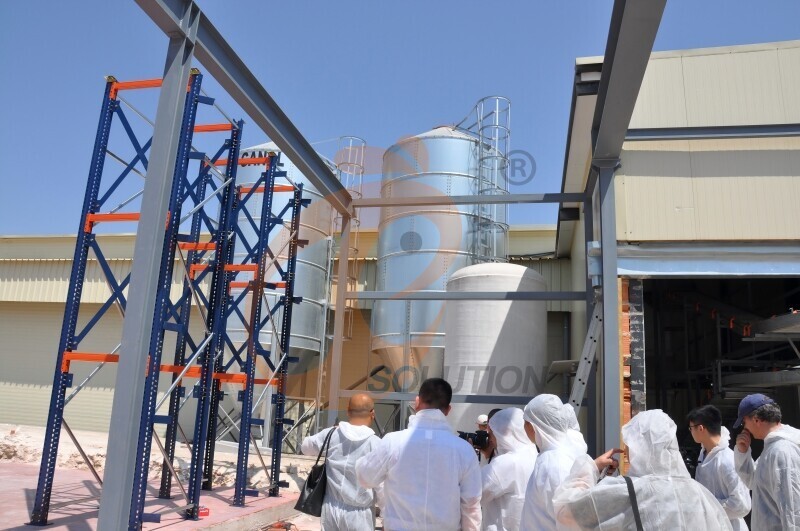

• The following pictures are we were in UAE and Australia; Some livestock industry exhibitions we attended to.

6. Faster after service

• Give solution in 1-3 days, our Chinese and local engineers based in our branches,

for any pre-sales and after-sales, they will arrive at your poultry farm.

• If the machine is damaged due to physical operation of the equipment,

you can easily find parts from our local warehouse and replace them in time.

Product list

night series of poultry farm equipment and chicken cage.

1. AI smart management

2. Egg production equipment

3. Pullet growing equipment

4. Broiler production equipment

5. Poultry house management

6. Feed processing equipment

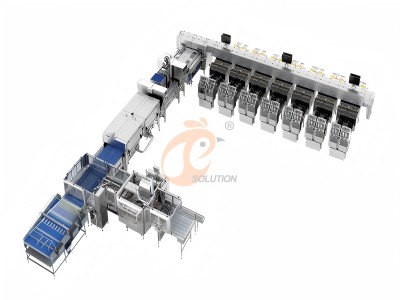

7. Egg processing equipment

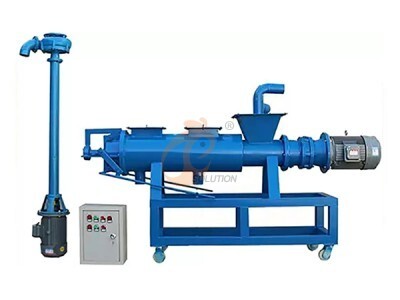

8. Manure processing equipment
