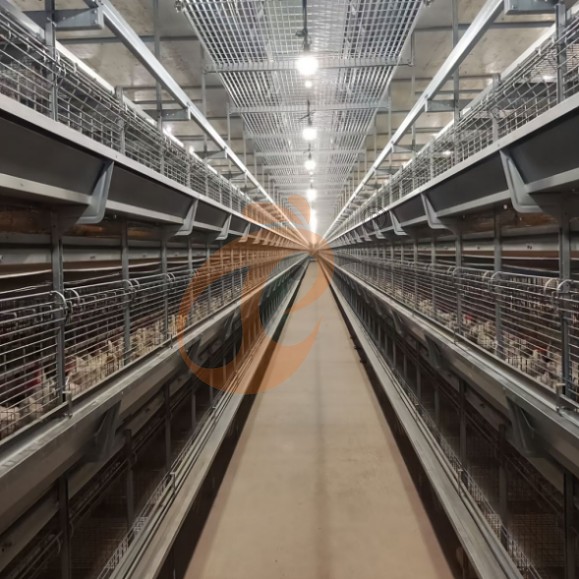

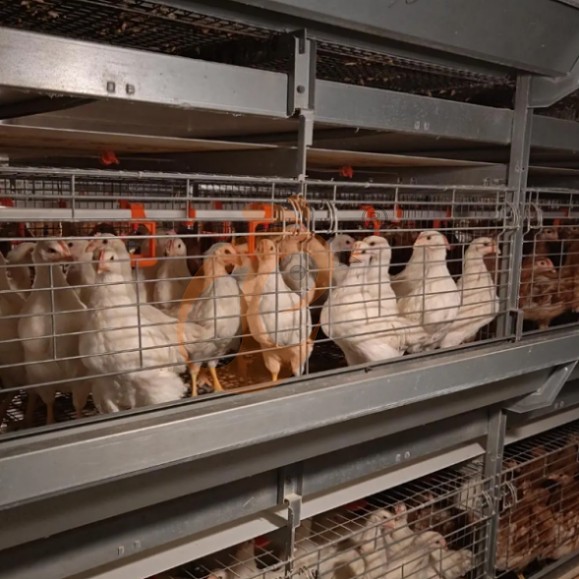

European Standard H Type Automatic Pullet Cage

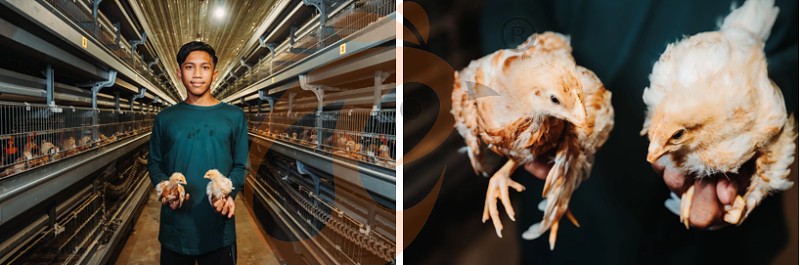

Sample of automatic H type pullet chicken cage

Brief introduction of automatic H type pullet chicken cage

It is for young egg laying chickens at age from 1 week tp 12 weeks. After 12 weeks, pullet chicken are transferred to layer cages.

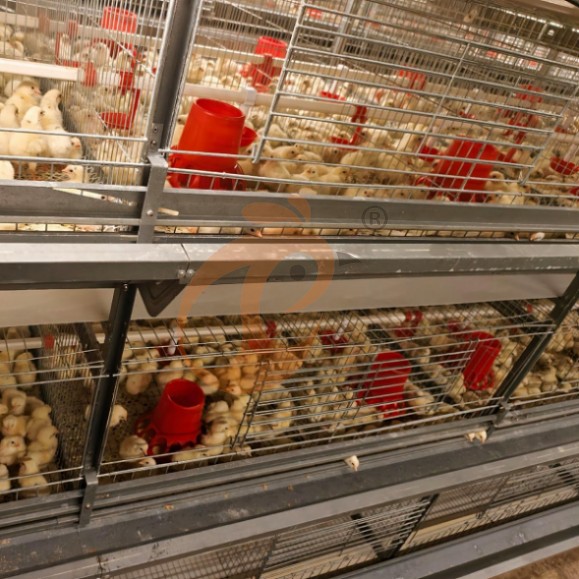

1. Transfer pullets into pullet chicken cage: workers put pullets in the 1st and 2nd tier of pullet chicken cage, pullets standing on the plastic mesh fixed on bottom mesh of pullet chicken cage. After they are 2 weeks to 3 weeks old, moves out plastic mesh and spreads pullets to the whole pullet chicken cage.

2. Heating: air heater gives the warm air during 1 day to 14 days old pullets, or older, it depends your local environment.

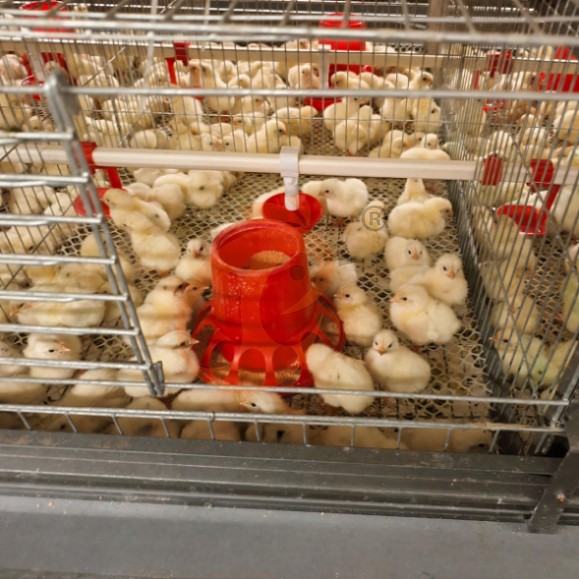

3. Drinking: 1 day to 1 week old pullets are drinking by small drinkers, workers move out small drinkers, pullets are drinking cyclic medicine water by touching nipple drinker of automatic drinking system after 2 week to 3 weeks old.

4. Eating: 1 day to 1 week old pullets eat by small feeders, worker moves out small feeders, older than 2 weeks or 3 weeks pullets are eating feed by automatic feeding system.

5. Manure cleaning: manure are moved by automatic manure removal system.

Why choosing Taiyu Group's pullet chicken cage

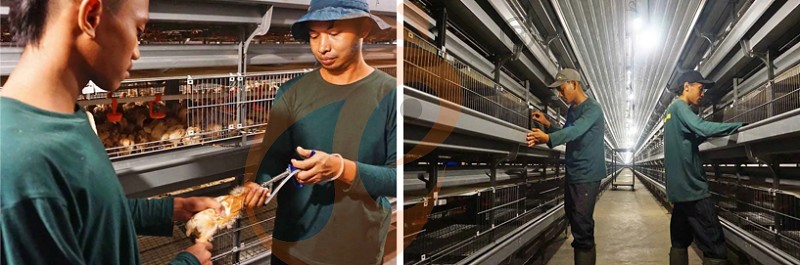

Taiyu Group case 1

1.  The application case of our company's customized automated H pullet chicken cages in Thailand's poultry farm.

2. The photo was taken in 2012, the poultry farm was completed in 2002.

3. The customer has chosen automated H 4 tier pullet chicken cage with equipment.

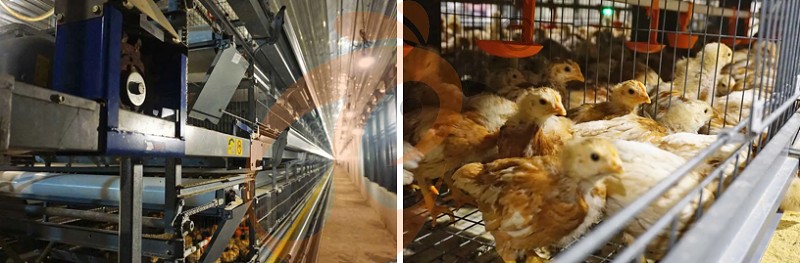

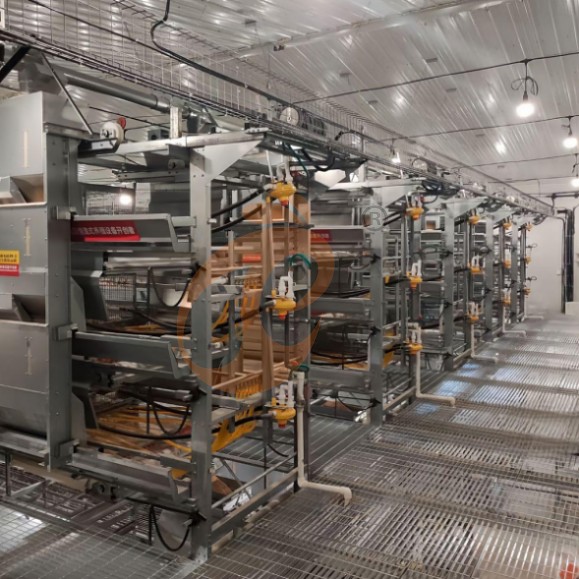

Taiyu Group case 2







1. H6 tiers of pullet cages, middle steel floor makes it to 2 floors.

2. Automatic system with warm system.

3. 80,000 pullets/house.


Advantage of Taiyu Group 's pullet cage

1. Young layers' growing rate is over 20% than common type together with high-quality feed formulas.

   From European design style, our structure is more suitable for the activities of young layers.

2. One person manages 3 or more broiler chicken houses.

   There are intelligent control operation, automated alarm equipment, saves much more labor costs.

3. It is service life of more than 25 years.

   Meets European quality standards, components imported from Japan, Europe, USA, more corrosion-resistant and durable.

4. WhatsApp to +86 18830120193, +2348111199996 – Directly getting detailed introduction, newest price and your poultry house design.

Why choosing Taiyu Group

15 Mins Video Showing Mins Showing Products, Production Department, QC, Logistics Department, Customer Cases...

1. Turnkey solutions from 100 birds to 1,000,000 birds, including design, poultry farm equipment, and smart farm integration.

2. Supplies battery cage and poultry farm equipment to over 3000 farms worldwide with turnkey engineering projects.

3. Comprehensive after-sales, training, and 24/7 technical support available all over the world.

Quantity of pullet/pullet chicken house

For your reference only, the following data are is estimated, The exact data is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.

Layout of 32,000 pullet/pullet chicken house

1. Building dimension: 120* 8* 4 meters

2. Number of cage tiers: 4 tiers

3. Number of cage lines: 2 lines

4. Total section each line: 77 sections

5. Total section in one house: 154 sections

6. Total birds each house: 32,000 birds

7. For reference only

Layout of 105,300 pullet/pullet chicken house

1. Building dimension: 106* 15* 4.7 meters

2. Number of cage tiers: 5 tiers

3. Number of cage lines: 5 lines

4. Total section each line: 81 sections

5. Total section in one house: 405 sections

6. Total birds each house: 105,300 birds

7. For reference only

Size of automatic H type pullet chicken cage

For reference only,

The exact size is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.

Accept customers'special sizes.

Here is drawing of 4 tiers, 8 tiers, and 12 tiers of pullet chicken cage.

Fittings of pullet chicken cage

1. Vcloud artificial intelligent fusion

2. Electric control cabinet

3. Pullet chicken cage body

4. Frame of pullet chicken cage system

5. Automatic drinking system

6. Automatic feeding system

7. Automatic manure removal system

8. Installation tools


Material of pullet chicken cage

1. Galvanized steel and stainless steel pipe and plate.

2. Motor, electric wire, circuit board, sensor, touch screen.

3. Galvanized steel, stainless steel, plastic and imported fittings, installation tools and so on.

Working principle of pullet chicken cage

1. Vcloud artificial intelligent fusion

Fittings

App, hardware

Working process

• Provide comprehensive data

View the data of feed consumption, pullet growing rate, water consumption, drug consumption, house climate, solar power system and so on of each pullet chicken house and all pullet chicken houses through the APP installed on your mobile phone, I-pad or computer.

• Order the equipment to operate

Give instructions to each automated device to start up, run and shut down at scheduled times.

• Alarm and shut down systems and equipment when any equipment in the pullet chicken farm or pullet chicken house operates abnormally for the following reasons

(1) The power supply voltage exceeds the limit, phase failure or three-phase imbalance occurs;

(2) The motor current exceeds the limit or the power exceeds the limit;

(3) Exceed the rated current;

• Monitor the power supply voltage, motor current, sensor operating status and so on in real time.

2. Electric control cabinet

Fittings

Electrical control boards, electrical control cabinets, alarm system cabinets, cables, wires, connecting accessories, etc.

Working process

Controls walking and stopping of the feeding equipment, manure removal equipment.

3. Pullet chicken cage body

Fittings

Pullet chicken cage nets, cage doors, connecting accessories, etc.

Working process

Pullets walk, drink water, lay eggs and engage in other daily activities inside the pullet chicken cage.

4. Frame of pullet chicken cage system

Fittings

Frames of automatic equipment, , adjustment screws of frame legs, connecting accessories, etc.

Working process

Supporting the whole pullet chicken cage system and automatic equipment.

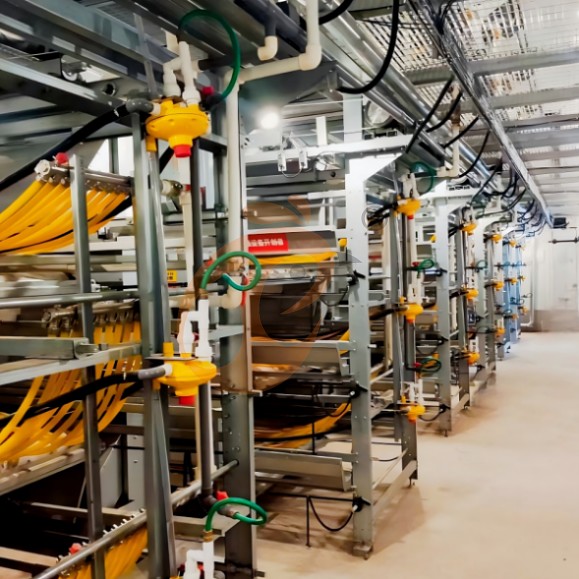

5. Automatic drinking system

Fittings

Automatic drug dosers, water filters, water pressure regulators, water tank, water pipes, water troughs, smaller drinkers, nipple drinkers, automatic cleaning device, connecting accessories, etc.

Working process

Water flows successively into the drug dosers, water filters, water pressure regulators, water tanks, water pipes, nipple drinkers.

1 day to 1 week old pullets drink with small drinker.

After pullets older than 1 week old, worker moves out small drinkers, pullets drink water by touching the nipple drinkers.

The automatic cleaning device regularly cleans the whole drinking system.

6. Automatic feeding system

Fittings

Feed storage silos, transverse feed spiral augers, feed elevator equipment, feed weigher, smaller feeders, feeding carts, feed average system, feeding carts' towing orbits, small feeders, connecting accessories, etc.

Working process

Feed storing in silo is successively into feed elevator equipment, transverse feed spiral augers, feeding carts, and feeding troughs, broilers eat it.

1 day to 1 week old pullets eat with small feeder.

After pullets older than 1 week old, worker moves out small feeders, feed storing in silo is successively into feed elevator equipment, transverse feed spiral augers, feeding carts, and feeding troughs, pullets eat it.

7. Automatic manure removal system

Fittings

Manure belts, belts' frames, rollers, row ending manure collection equipment, horizontal manure convey equipment inside pullet chicken house, slant manure conveyor equipment outside pullet chicken house, connecting accessories, etc.

Working process

Pullets' waste is successively dropped on manure belt under pullet chicken cage, row ending manure collection equipment, horizontal manure convey equipment inside pullet chicken house, slant manure conveyor equipment outside pullet chicken house, to the tuck finally.

Package of pullet chicken cage

All fittings are packed by wooden pallets and boxes, plastic wraps and boxes, nude packing, it depends.

Transportation of pullet chicken cage

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

Installation of pullet chicken cage

1. We will send to you installation guide by email if you importing broiler chicken cage or poultry equipment from China branch, will send engineers for your customized orders to guide the installation and testing of the equipment.

2. Local service of installation from branches of Ethiopia, Tanzania and Nigeria. We have installation teams.

Maintain of pullet chicken cage

1. After installation is completed, clean and disinfect the entire set of equipment first.

2. Daily disinfect and sterilize the pullet chicken house to reduce the incidence of avian influenza and other diseases.

3. Daily check motors and add oil if necessary of corollary system to make sure well working.

4. Daily check the drinking device to ensure that the water quality in the entire drinking water system is good.

5. Daily check the device of feeding, manure removal equipment to ensure that the entire system is operating well.

6. Monthly check other plastic and steel fittings, connectors and so on every to make sure well working.

7. Every time clean pullet chicken cage system and corollary system after move all pullets out, or before put new pullets.
