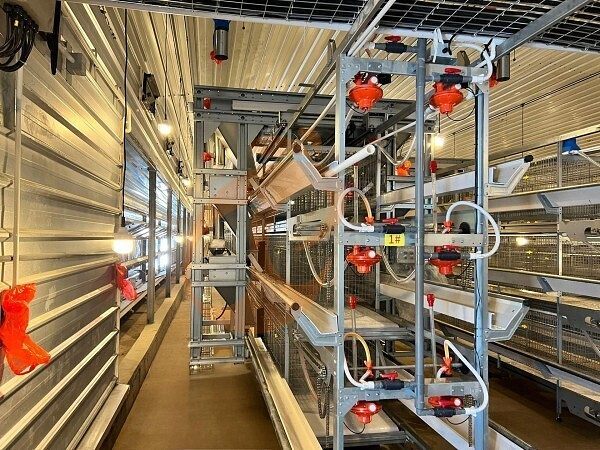

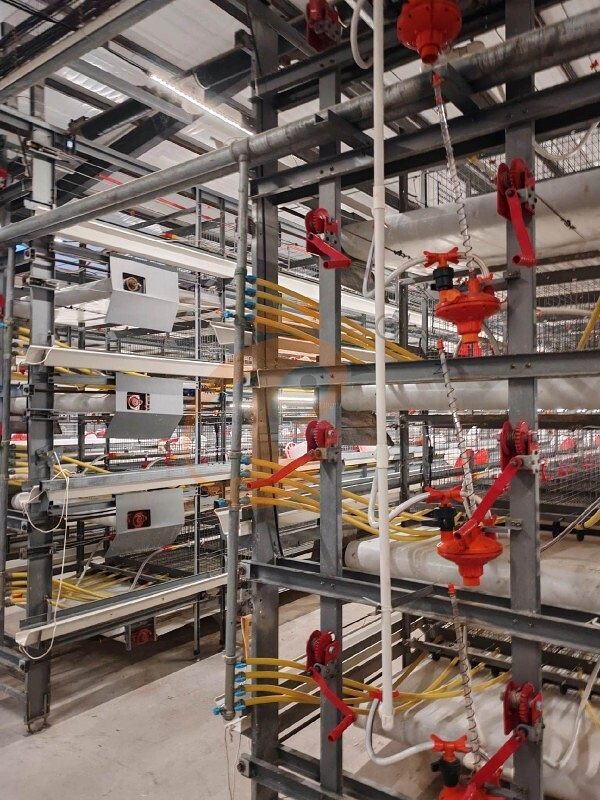

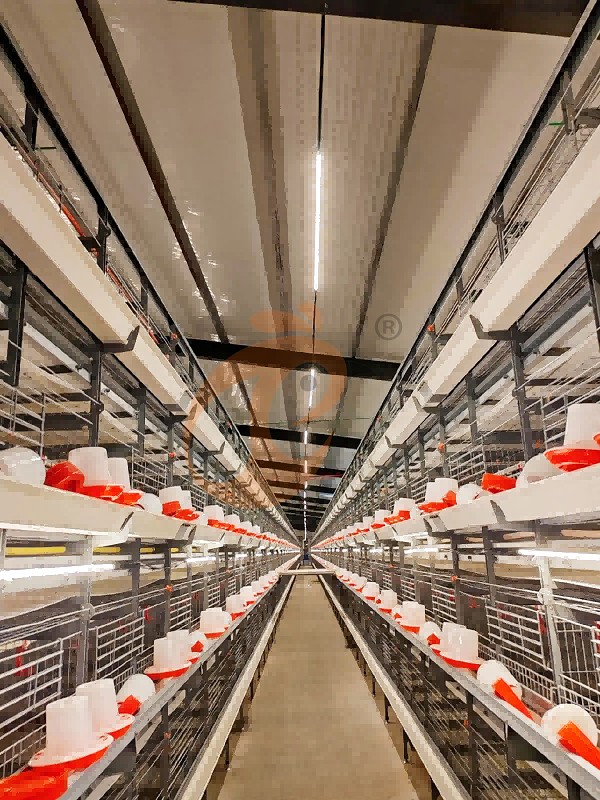

Sample of automatic H type broiler chicken cage

1. The number of tier ranges are from 3 to 12.

2. The sample pictures show the automatic H 4-tier broiler chicken cage.

3. More than 30,000 broilers a house, choose it.

4. Fully automatic equipment such as drinking, feeding and manure cleaning, semi-automatic broiler harvesting.

Brief introduction of automatic H type broiler chicken cage

Taiyu Group's broiler cage case

Why choose Taiyu (HK) groups 's broiler cages?

1. Broilers' growing rate is over 20% than common type together with high-quality feed formulas.

   From European design style, our structure is more suitable for the activities of broilers.

2. One person manages 3 or more broiler chicken houses.

   There are intelligent control operation, automated alarm equipment, saves much more labor costs.

3. It is service life of more than 20 years.

   Meets European quality standards, components imported from Japan, Europe, USA, more corrosion-resistant and durable.

WhatsApp to +86 18830120193 – Directly getting detailed introduction, newest price and your poultry house design.

Tips to distinguish three types of H type broiler cages

Swipe left and right to view the complete table.

Brief introduction

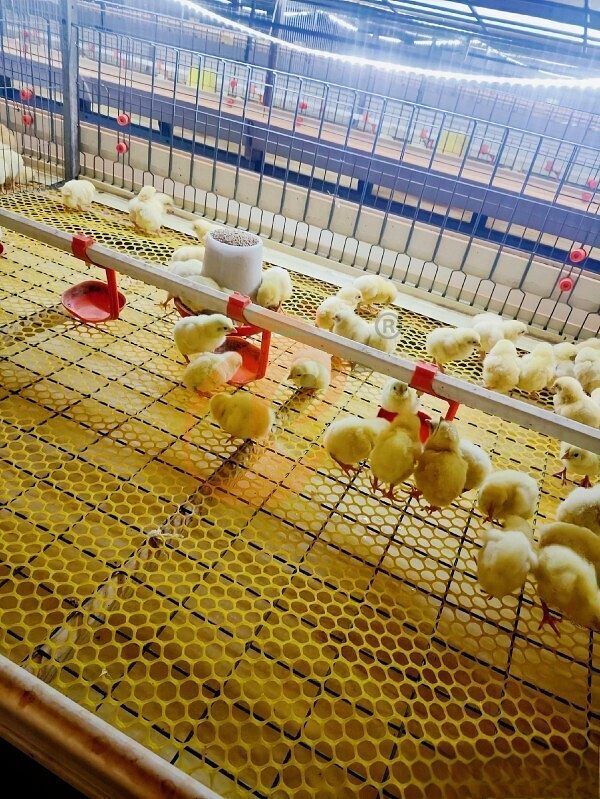

1. Transfer broilers into broiler chicken cage: workers put broilers in the 1st and 2nd tier of broiler chicken cage, broilers standing on the plastic mesh fixed on bottom mesh of broiler chicken cage. After they are 2 weeks to 3 weeks old, moves out plastic mesh and spreads broilers to the whole broiler chicken cage.

2. Heating: air heater gives the warm air during 1 day to 14 days old broilers.

3. Drinking: 1 day to 1 week old broilers are drinking with small drinkers, workers move out small drinkers, broilers are drinking cyclic medicine water by touching nipple drinker of automatic drinking system after 2 week to 3 weeks old.

4. Eating: 1 day to 1 week old broilers eat by small feeders; workers move out small feeders, older than 2 weeks or 3 weeks broilers are eating feed by automatic feeding system.

5. Manure cleaning: manure are moved by automatic manure removal system.

6. Broiler harvesting: manual broiler harvesting, workers pick up adult broiler chicken by hand.

Quantity of broiler/broiler house

For your reference only, the following data are is estimated, The exact data is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.

Layout of 50,000 broiler/broiler chicken house

1. Building dimension: 111* 15* 4 meters

2. Number of cage tiers: 4 tiers

3. Number of cage lines: 4 lines

4. Total section each line: 98 sections

5. Total section in one house: 392 sections

6. Total birds each house: 50,176 birds

7. For reference only

Size of automatic H type broiler chicken cage

For reference only, the exact size is based on the actual needs of the poultry farm and customer requirements, or our exact quotation.

Accept customers'special sizes.

Here is drawing of 3 tiers, 4 tiers, 8 tiers, and 12 tiers of broiler chicken cage.

Fittings of broiler chicken cage

1. Vcloud artificial intelligent fusion

2. Electric control cabinet

3. Broiler chicken cage body

4. Frame of broiler chicken cage system

5. Automatic drinking system

6. Automatic feeding system

7. Automatic manure removal system

8. Installation tools


Working principle of broiler chicken cage

1. Vcloud artificial intelligent fusion

Fittings

App, hardware

Working process

• Provide comprehensive data

View the data of feed consumption, broiler production quantity, water consumption, drug consumption, house climate, solar power system and so on of each broiler chicken house and all broiler chicken houses through the APP installed on your mobile phone, I-pad or computer.

• Order the equipment to operate

Give instructions to each automated device to start up, run and shut down at scheduled times.

• Alarm and shut down systems and equipment when any equipment in the broiler chicken farm or broiler chicken house operates abnormally for the following reasons

(1) The power supply voltage exceeds the limit, phase failure or three-phase imbalance occurs;

(2) The motor current exceeds the limit or the power exceeds the limit;

(3) Exceed the rated current;

• Monitor the power supply voltage, motor current, sensor operating status and so on in real time.

2. Electric control cabinet

Fittings

Electrical control boards, electrical control cabinets, alarm system cabinets, cables, wires, connecting accessories, etc.

Working process

Controls walking and stopping of the feeding equipment, manure removal equipment.

3. Broiler chicken cage body

Fittings

Broiler chicken cage nets, cage doors, connecting accessories, etc.

Working process

Broilers walk, drink water, lay eggs and engage in other daily activities inside the broiler chicken cage.

4. Frame of broiler chicken cage system

Fittings

Frames of automatic equipment, connecting accessories, etc.

Working process

Supporting the whole broiler chicken cage system and automatic equipment.

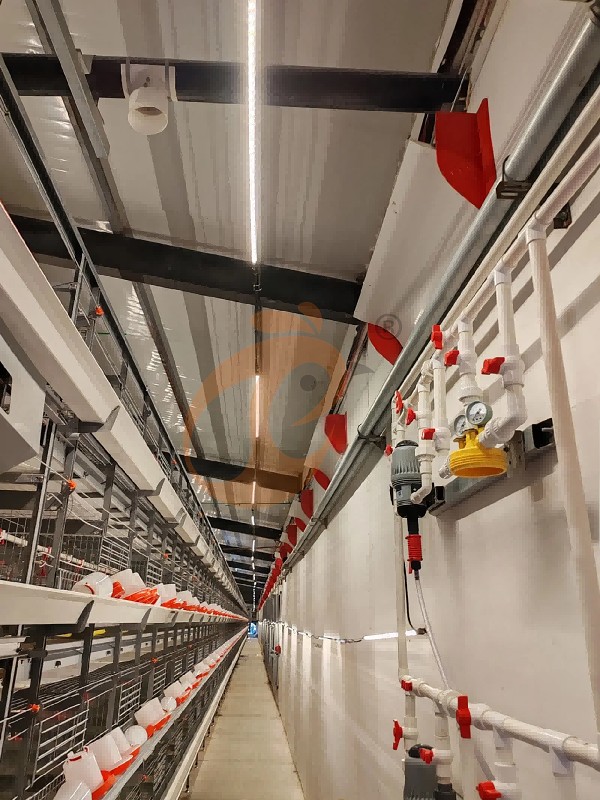

5. Automatic drinking system

Fittings

Automatic drug dosers, water filters, water pressure regulators, water tank, water pipes, water troughs, small drinkers, nipple drinkers, automatic cleaning device, connecting accessories, etc.

Working process

Water flows successively into the drug dosers, water filters, water pressure regulators, water tanks, water pipes, nipple drinkers.

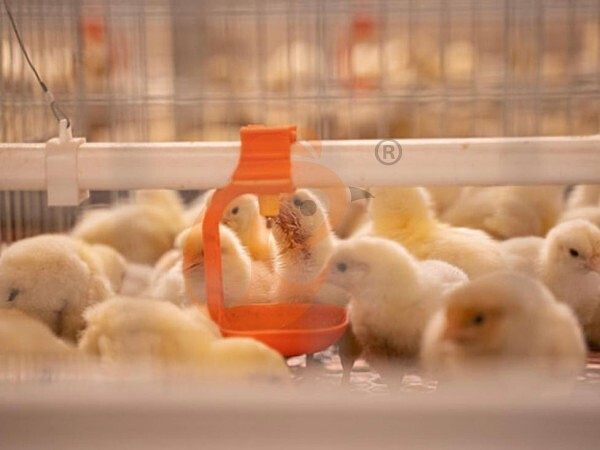

1 day to 1 week old pullets drink with small drinkers.

After broilers older than 1 week old, worker moves out small drinkers, broilers drink water by touching the nipple drinkers. Broilers drink water by touching the nipple drinkers.

The automatic cleaning device regularly cleans the whole drinking system.

6. Automatic feeding system

Fittings

Feed storage silos, transverse feed spiral augers, feed elevator equipment, feed weigher, feeding carts, feed average system, feeding carts' towing orbits, small feeders, connecting accessories, etc.

Working process

Feed storing in silo is successively into feed elevator equipment, transverse feed spiral augers, feeding carts, and feeding troughs, broilers eat it.

After broilers older than 1 week old, worker moves out small feeders, feed storing in silo is successively into feed elevator equipment, transverse feed spiral augers, feeding carts, and feeding troughs, broilers eat it.

7. Automatic manure removal system

Fittings

Manure belts, belts' frames, rollers, row ending manure collection equipment, horizontal manure convey equipment inside chicken house, slant manure conveyor equipment outside broiler chicken house, connecting accessories, etc.

Working process

Broilers' waste is successively dropped on manure belt under broiler chicken cage, row ending manure collection equipment, horizontal manure convey equipment inside broiler chicken house, slant manure conveyor equipment outside broiler chicken house, to the tuck finally.

Package of broiler chicken cage

All fittings are packed by wooden pallets and boxes, plastic wraps and boxes, nude packing, it depends.

Transportation of broiler chicken cage

1. Full or less container from China branch by sea.

2. Local warehouse from branches of Ethiopia, Tanzania and Nigeria.

Installation of broiler chicken cage

1. We will send to you installation guide by email if you importing broiler chicken cage or poultry equipment from China branch, will send engineers for your customized orders to guide the installation and testing of the equipment.

2. Local service of installation from branches of Ethiopia, Tanzania and Nigeria. We have installation teams.

Maintain of broiler chicken cage

1. After installation is completed, clean and disinfect the entire set of equipment first.

2. Daily disinfect and sterilize the broiler chicken house to reduce the incidence of avian influenza and other diseases.

3. Daily check motors and add oil if necessary of corollary system to make sure well working.

4. Daily check the drinking device to ensure that the water quality in the entire drinking water system is good.

5. Daily check the device of feeding, manure removal equipment to ensure that the entire system is operating well.

6. Monthly check other plastic and steel fittings, connectors and so on every to make sure well working.

7. Every time clean broiler chicken cage system and corollary system after move all broilers out, or before put new broilers.

Equipment of broiler chicken farm customers order too

For your reference only, it is based on the actual needs of the poultry farm and customers.

Equipment matching opening chicken house and closed chicken house

For your reference only, it is based on the actual needs of the poultry farm and customers.

Working process

• Climate control system

1. The indoor temperature can be fixed between 13 and 26 degrees Celsius, which is achieved through the cooperation of fans and wet curtains. The fans at one end of the chicken house sucks away the hot air inside. Under pressure, cooling water vapor comes from the wet curtains at the other end of the chicken house enters.

2. The indoor fresh air circulation in the chicken house is by the air windows on the side walls and roof.

• Poultry house light system

Promote the normal growth of broilers and chicks, reduce the incidence rate and mortality rate; extend the laying period of egg-laying hens, increase the egg production, through control of lighting time, selection of lighting color, design of layout of lighting system of poultry cage or poultry cage free in poultry house.
