45,000 Egg Chickens Per Poultry House Design Drawing

  • 45,000 Egg Chickens Per Poultry House Design Drawing

45,000 Egg Chickens Per Poultry House Design Drawing
1. 45,000 egg chickens poultry house design drawing
2. L × W × H: 85 × 12 × 4.2 (m)
3. House size and equipment list
4. Reception /WhatsApp NO. : +8618830120193,+2348111199996
The Contact: Amy Fan
Email : sales@bestchickencage.com
Contact us

Product description


45,000 Chickens Poultry House Design Drawing


We offer turnkey engineering solutions, operation, production, quotation installation and long-term maintenance of poultry farm.

Slide the table left and right to view the full content.

Category

Parameter

Customer input

Poultry house information

Poultry type

Layer

House type

Closed house

House dimensions

L × W × H: 85 × 12 × 4.2 (m)

House floor area

Total 1,020 (㎡)

House orientation

East–West / North–South

Production capacity

Planned bird capacity

45,360 birds

Equipment system

Cage system

Cage tiers

5 tiers

Birds per set

270 birds/set

Cage system

Cage size

L × W × H: 1.8 × 1.25 × 3.6 (m)

Cage material

Hot-dip galvanized wire / Al-Mg alloy wire / Stainless steel wire

Cage quantity

168 sets

Feeding system

Feeding method

Fully automatic

Feed silo

Yes

Feed transport

Auger feeding or Chain feeding

Drinking system

Drinking system

Nipple drinker

Nipple ratio

2–4 birds per nipple

Water system components

Filter, medicator

Manure removal system

Cleaning method

Automatic

Manure conveying

Longitudinal + transverse conveyor

Egg collection system

Egg collection method

Automatic

Egg collection equipment

Egg belt + Central egg collection line

Egg collection area

Egg collection room

Ventilation & cooling system

Ventilation type

Open house: Natural ventilation

Closed house: Mechanical ventilation

Cooling equipment

Exhaust fans, cooling pads, air deflectors, air inlets

Lighting system

Lighting type

LED lighting

Lighting control

Manual or automatic lighting control

Smart control system

Control system

Automatic environmental controller

Controlled equipment

Fans, cooling pads, lighting, heating, etc.

Remote access

Computer, IPad, Mobile APP

Alarm system

Power failure, high temperature, equipment fault alarms

CCTV monitoring system

Monitoring locations

Poultry house, feed silo area, egg room, entrance, etc.

Storage system

Network Video Recorder (NVR)

Main components

Cameras, cables, signal transmitters

Remote viewing

Computer, iPad, Mobile APP

Auxiliary systems

Heating system

Required when indoor temperature is below 20°C

Power supply

Distribution cabinet, backup generator

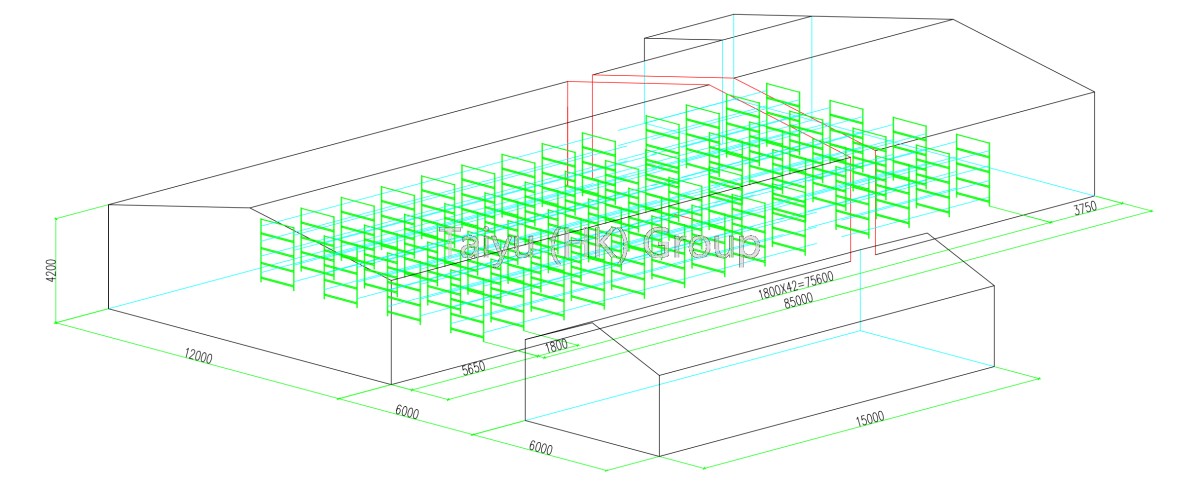

poultry house size and drawing (1)

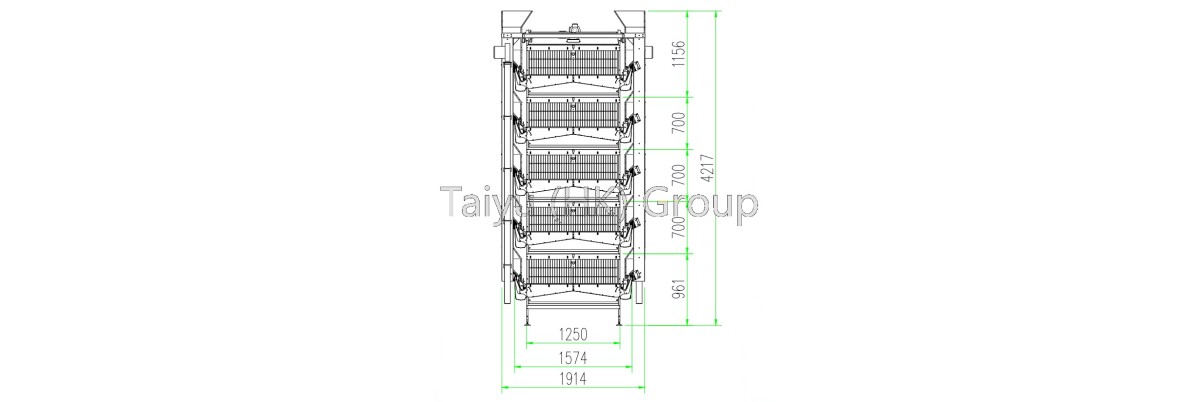

poultry house size and drawing (12)

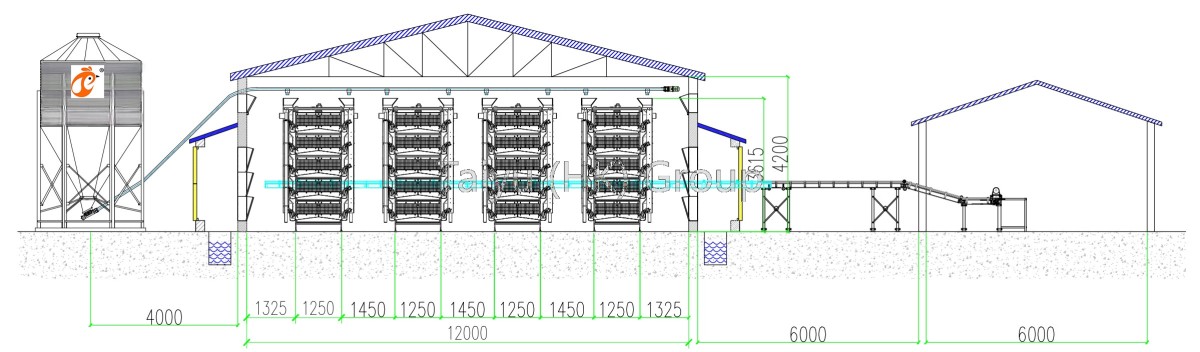

poultry house size and drawing (2)

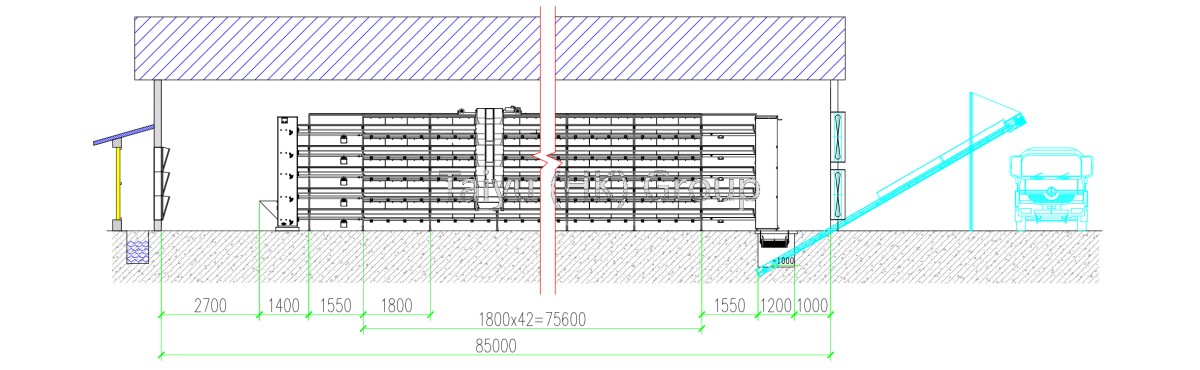

poultry house size and drawing (3)

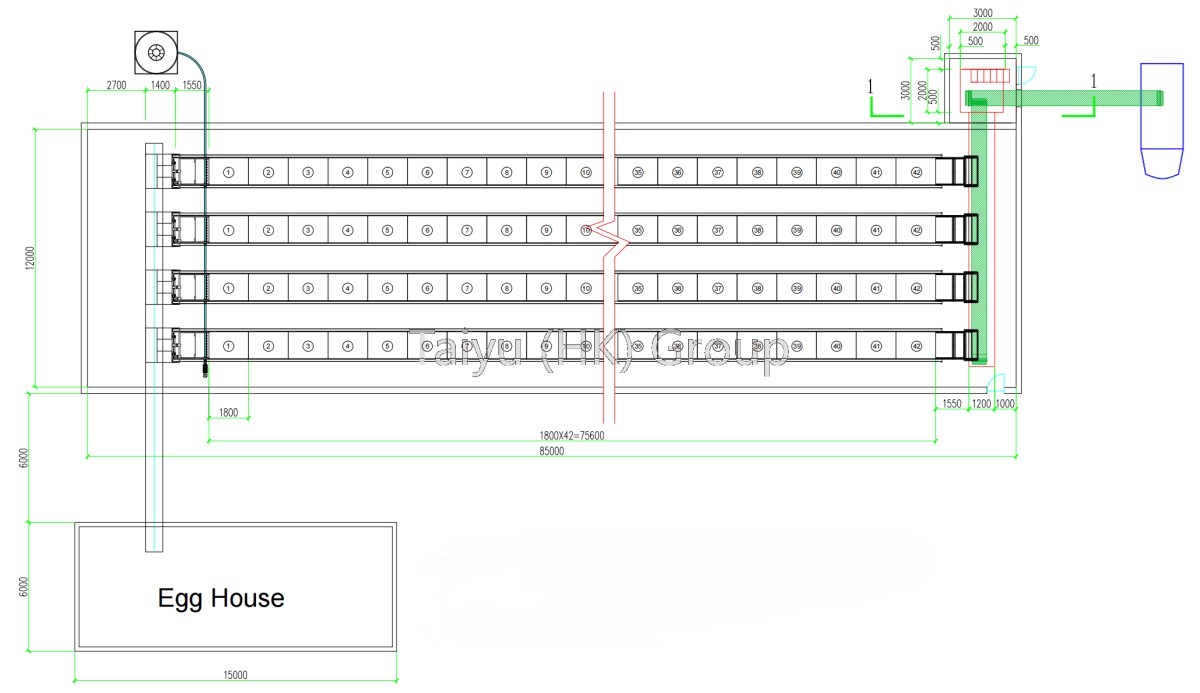

poultry house size and drawing (4)

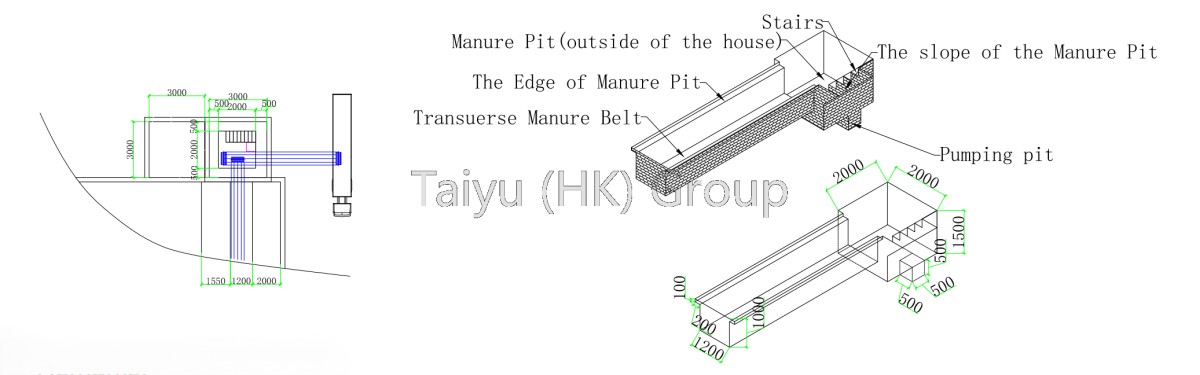

poultry house size and drawing (5)

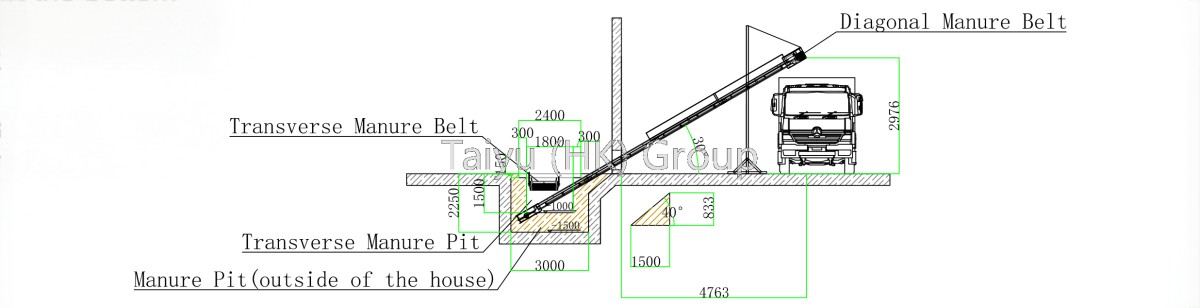

poultry house size and drawing (6)

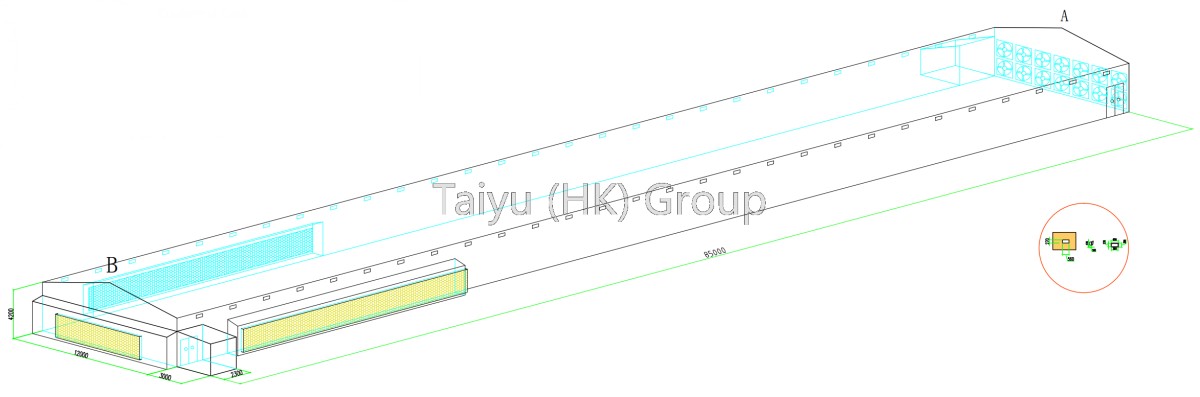

poultry house size and drawing (10)



poultry house size and drawing (9)

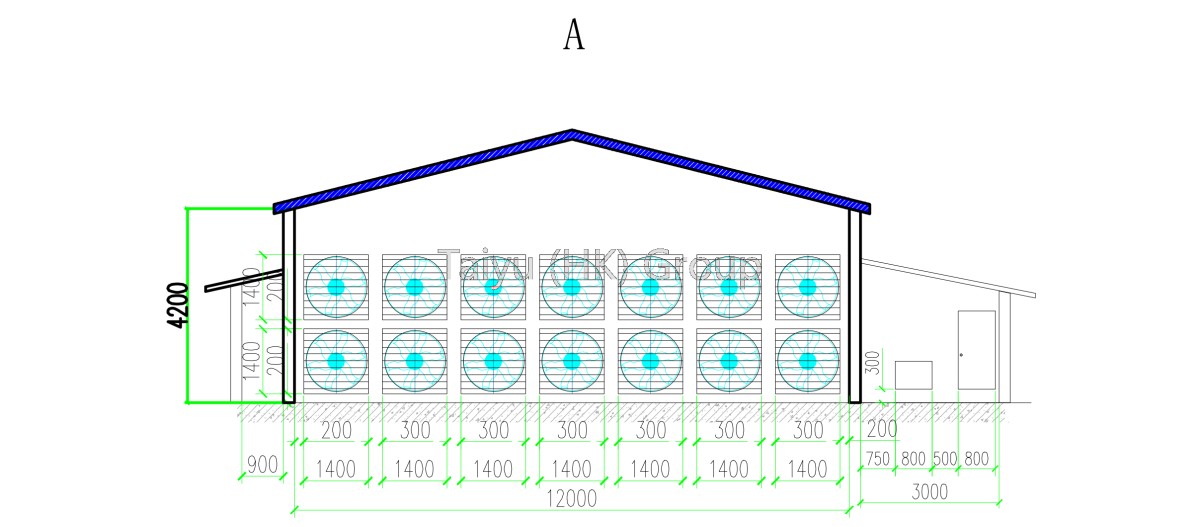

poultry house size and drawing (7)

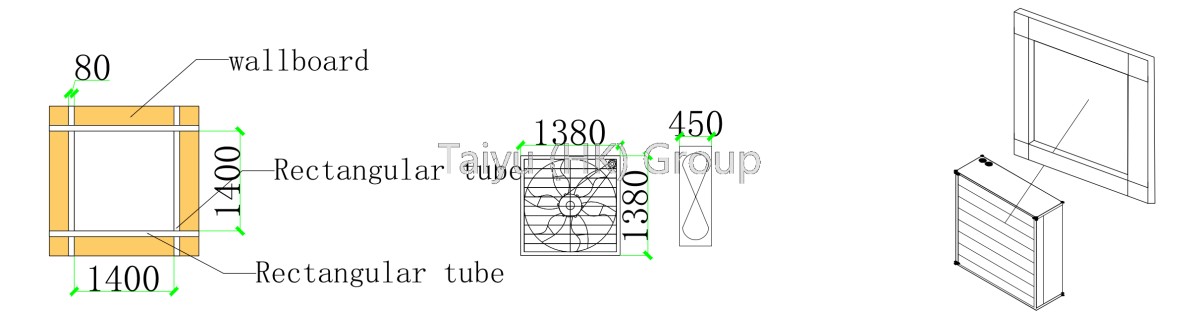

poultry house size and drawing (11)

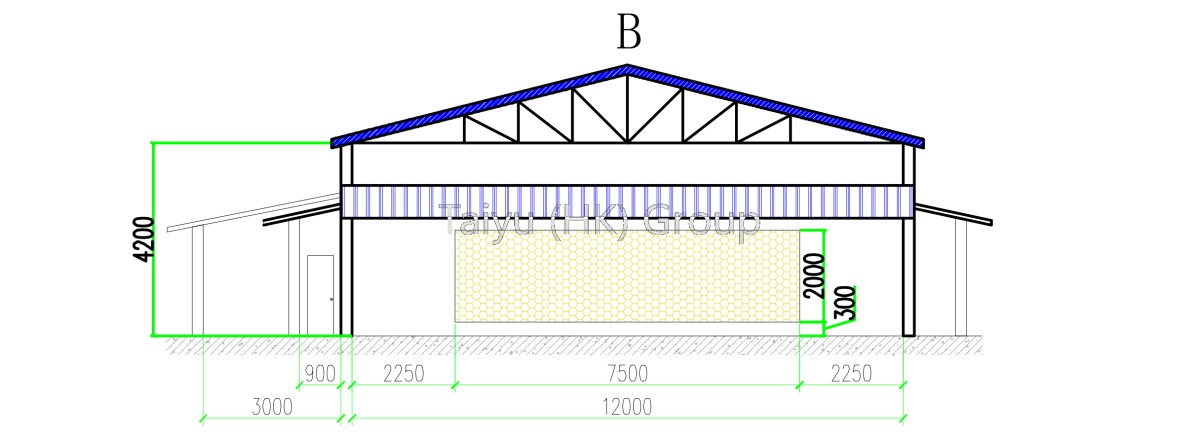

poultry house size and drawing (8)
