Basic information

Broiler floor system is a system carried out before the production of chicken cages. It is a process of raising chickens on the floor and this is commonly known as slatted floor raising. First of all, the quantitative advantage is very clear. This type of broiler farming is adopting the floor system to raise them. It can save the area of chicken house and increase the amount of broiler quantity

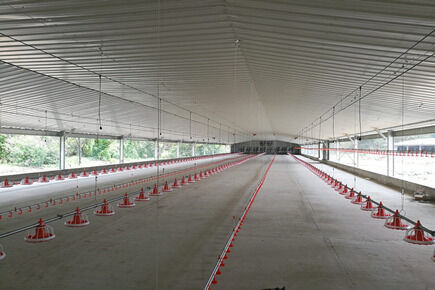

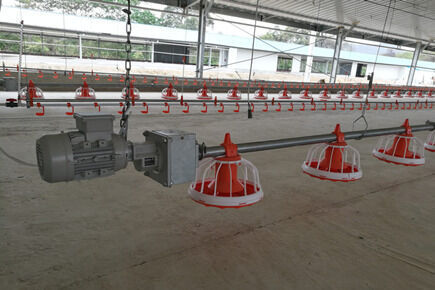

So, our company’s broiler project is carried out to find out the scale and estimation of raising 500,000 broilers on floor system with the aid of automatic feeding and drinking system. The broiler floor system is designed to make the birds have a healthy living.  Broiler floor system is made of high-strength, wear-resistant polypropylene, the poultry flooring is designed for cage free chicken farm to replace wood floors in poultry house

Broiler poultry flooring system can separate poultry and manure, thereby inhibiting bacterial reproduction and growth. The dimension of the broiler house is 112.0m long, 15.0m wide and 2.05m high. The breeding cycle of broilers is short, the use of broiler floor system can minimize the initial investment cost, and the use of automatic feeding and drinking lines can reduce labor costs, a chicken house only needs 1-2 workers to ensure lesser load of work in the poultry farm

Specification

The sizes of most customers choosing of chicken cage system/equipment and floor raising chicken system/equipment are

1. Egg laying chicken cage

128 birds/set, 4 tiers/set, 32 cells/set, LXWXH/cell: 2mX2.5mX2.12m,

LXWXH/cell: 1960mmX350mmX380mm

2. Broiler chicken cage

120 birds/set, 3 tiers/set, 6 cells/set, 20 birds/cell, LXWXH/cell: 1.1mX2.3mX2.56m,

LXWXH/cell: 1050mmX1000mmX635mm

3. Pullet chicken cage

96 birds/set, 4 tiers/set, 8 cells/set, 12 birds/cell, LXWXH/cell: 1.25mX1.5mX2.9m,

LXWXH/cell: 1200mmX600mmX625mm

4. Breeder chicken cage

280 females and 40 males/set, 4 tiers/set, 8 cells/set, 35 females and 5 males/cell,

LXWXH/cell: 3.66mX2.6mX3.7m, LXWXH/cell: 3600mmX1250mmX800mm

5. Broiler floor raising system/equipment

80 birds/m2, LXWXH/chicken house: 100mX10mX4m

6. Pullet floor raising system/equipment

100 birds/m2, LXWXH/chicken house: 100mX10mX4m

Features

1. It is easy to clean the plastic structure is anti-corrosive, anti-microbial and easy to discharge waste therefore the litter is kept dry

2. The broiler floor system combines the characteristics of feeding, drinking, lightning and environment to guarantee productivity and growth of the chicken

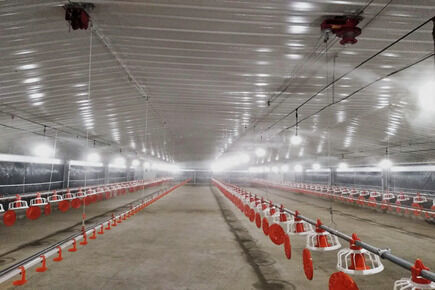

3. It has a ventilation system which is customized according to the needs of the environment to ensure growth and productivity. The lighting system is designed to provide the correct amount and intensity of light which is essential for the ideal development of the animal

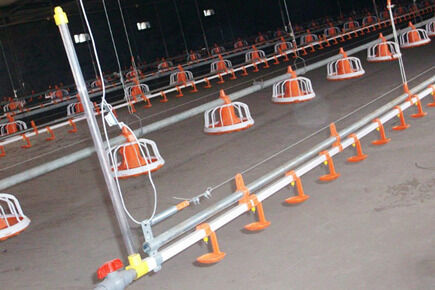

4. The broiler floor system has a drinking and feeding system which consists of tubes that run the entire length of the available area and provide the correct amount of water through the nipples equipped with saving drop caps that prevent water from falling to the ground, keeping 5. Broiler floor system is strong and durable and is made of high impact solid polypropylene, with high impact resistance and abrasion resistance

6. The broiler floor system is compliant and accessible to animals of any age. The feeding pan allows an easy use for the animal and an easy inspection and maintenance for the operator. Broiler has access to the right amount of food that allows continuity and uniformity in their growth

Advantages

1. Reasonable high-density raising and high land utilization rate

2. It keeps a precise and stable temperature which meets the requirement of the birds

3. It helps in determining the holding capacity of a particular rearing pen and avoiding overstocking or under-stocking

4. It helps to prevent space-related losses

5. It enhances the welfare and performance of the flock

6. It eases planning such as pen design plan and feeding plan

7.  Advanced designing concept of environmental control system meets local climate requirements

8. The controller is easy to operate leading to a high degree of automation

9. Reasonable grille design of feed pan can effectively reduce the waste of feed and avoid the death caused by cage stocking

10. The key components are of international well-known brands leading to stably running

Our services

1. We primarily focus on producing quality poultry equipment

2. We render valuables services on poultry equipment

3. We give customers detailed information on the product they want to buy

4. After purchasing our poultry equipment, we do follow up on our customers about the equipment they purchased

5. We offer the best equipment which meets our customer’s every requirement

6. We give customers detailed information on the product they want to buy

Frequently ask questions

Q: What is broiler floor system in poultry?

A: This broiler floor system is commonly practiced for rearing birds for hatching eggs production, particularly meat-type breeders. Here, a part of the floor area is covered with slats. Usually, 60% of the floor area is covered with slats and rest with litter. Feeders and waterers are arranged in both slat and litter area

Q: What do you place on the floor for broilers?

A: lay plastic plates 0.6m on the broiler floor system above the ground in the breeding area of the chicken house. Chicken manure falling into the net can reduce the infection of digestive tract disease, especially the control of coccidiosis

Q: Can broilers be raised in cages?

A: Broilers can be housed on deep-litter, slatted or wire floor or cages. However, cage, slat and wire floor rearing of broilers are not as popular as litter floor rearing, due to problems like breast blisters, leg weakness and higher initial investment
