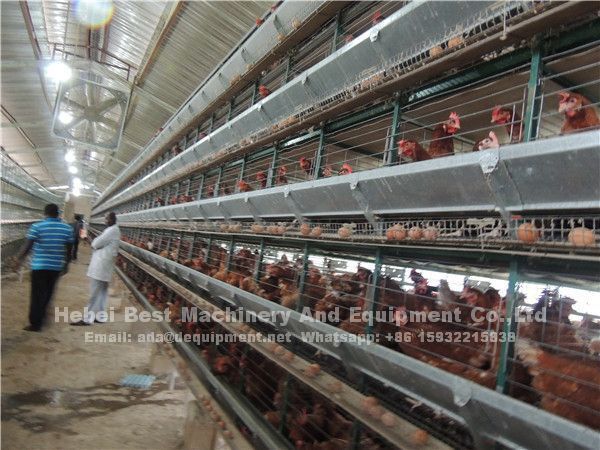

There are A type full automatic layer cage and H type full automatic layer cage, in general, less than 30,000 layers then use A type automatic layer cage system is better and more economical, more than 50,000 layers then could consider with H type full automatic system

Advantage of full automatic poultry layer cage system
1. High degree of automation, one person can control a chicken house to complete all works such as feeding, egg picking, ventilation, temperature adjustment and so on
2. The fully automatic chicken cage equipment breeding system improves the continuous production capacity, the production resources are re-developed and utilized, and the economic benefits are improved
3. The number of tiers can be selected, up to 10 tiers, the breeding density per unit space is high, the breeding output is large, and the benefit can be reasonably doubled
4. Automatic feeding and drinking saves labor, increases labor productivity
5. Eggs are automatically collected, reducing labor costs, high efficiency and good stability
6. Belt automatic manure cleaning type, dry, hygienic, labor-saving, and can be cleaned many times a day, greatly reducing the respiratory diseases of chickens
7. Centralized feeding can reduce the mobile contact of chicken house staff, which is beneficial to the prevention and control of chicken diseases

80,000 layers farm sample
1. Cage type: H Frame 5 tiers Layer Chicken Raising Equipment
2. Rearing period: 16-80 week
3. chicken house dimension: 117 by 15 by 5 meter
4. Cage layout: 60 sets per row, 5 rows, total 300 sets cage
5. Capacity: 270 birds per cage
6. Electricity Instruction: AC, 3PH/380V, 50HZ, 0.75-4.0KW for the motors of machines

Talk with Ada now to get more farm knowledge ,invest budget ,house design and farm product information
Tel & Whatsapp & Viber & Wechat: +86 15932215838
E-mail: ada@dequipment.net
Facebook & Skype & Linkedin: Ada Wang
Facebook homepage: www.facebook.com/Poultry-farm-chicken-cage-and-equipment-manufacturer

Specification of BEST chicken cage and equipment

1. Main cage structure
The layer cage is the place where the layer live. Whether the structure of the layer cage is reasonable directly affects the egg-laying performance of the flock. Considering that the chickens should have sufficient space for movement, the average cage bed area for each chicken is 450cm2. When raising 5 to 6 laying hens in a single cage, the size of the chicken cage is 600mm deep, 450mm wide, 430mm high. The density of the bottom mesh of the chicken cage should be appropriate, the strength and elasticity of the bottom mesh should be appropriate, and the rolling angle should be reasonable. The egg roll angle is 9, and the egg breaking rate is less than 1%. The bottom net should be made of high-strength, high-elasticity high-quality materials to meet the technical requirements of comfortable walking for chickens, smooth egg rolling, low egg breaking rate and low dirty egg rate. The cage door generally adopts a horizontal sliding door structure, so that it is easy to open, and there will be no chickens running away

2. Conveying and feeding system

The feeding and feeding process does not require anyone to operate, and the whole process is completely automatic. The basic working process is as follows: The horizontal feeding system sends the feed in the feed tower to the feeding hopper of each row of cages, and the hopper on each layer of the feeding car corresponds to each trough to evenly sprinkle the feed on the trough, each chicken can eat fresh feed freely

3. Automatic drinking water system
The water supply line of the layer cage equipment is set in the middle of the top of each layer of chicken cages, each cell is set with 2 nipples, and a V-shaped sink is set under the nipples to connect the water splashed by the chickens when they drink water. down and then evaporate naturally. In this way, the water splashed by the chickens will not fall into the chicken manure, making the chicken manure more dry. Filters, smart water meters, dosing and pressure reducing regulators are provided at the front end of each water line

4. Manure cleaning system
There is a longitudinal manure removal belt under each layer of chicken cage, so that the chicken manure of each layer of chickens will fall on the manure removal belt, and under the action of longitudinal flowing air, most of the moisture of the chicken manure will be taken out. Outside the house, the moisture content of chicken manure is greatly reduced. When the manure is cleaned, because the manure removal belt is flat and smooth, the chicken manure removed from the house is in the form of pellets. Such chicken manure can be directly sold to farmers or processed into compound fertilizer, which not only improves economic benefits, but also avoids environmental pollution

5. Automatic egg collection and conveying system

The automatic egg collection and conveying system is an important part of the stacked layer cage equipment. In the process of egg collection and transportation, any link may affect the egg breaking rate. The eggs from the egg collector are gently rolled onto the central egg delivery line in an arrangement, and the eggs do not collide with each other. A smooth transition from the egg collector to the central egg transfer line, through which the eggs are sent to the egg storehouse for grading processing

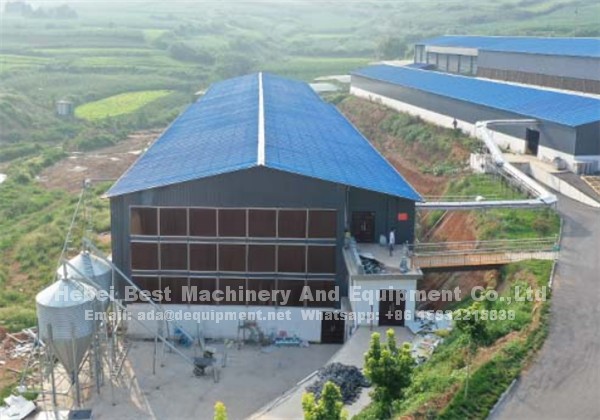

6. Automatic ventilation and cooling system
The automatic ventilation and cooling system is the basis for the automation of laying hen cage equipment. Since high-density laying hens are raised in fully enclosed chicken houses, mechanical negative pressure ventilation is generally used, wet curtains are installed, and water circulation is used to cool down. The climate in the house is completely controlled by the automatic ventilation and cooling system. Install at least 6 temperature sensing probes, 2 humidity sensing probes, and 2 negative pressure sensing probes in the house

Frequently ask questions
Q: Any building drawing u can give me?
A: Sure, according to the number of breeding, we will give you the corresponding design drawings and the number of equipment needed
Q: How long does it take to receive the goods after payment?
A: Production 4 weeks,shipping in general 6-8 weeks, clearance time 2 weeks
Q: Do the cages require any assembly onside or do they come with fully assembles?
A: They come in bulk and need to be installed after receive. Comes with installation tools and installation instructions,also could arrange our engineer install for you
