30,000 layers pen house design with full automatic chicken cage

Why choose battery cage to raise chickens

Battery cages were invented to curb problems such as risk, loss, danger, disease and many poultry farmers have faced in the past. Battery cages now come in different sizes to suit different species. It is woven from wire, does not put livestock waste to prevent them from getting sick, is well ventilated or properly ventilated, an automatic feeder reduces feed spills, and an automatic drinker provides enough water according to the proportion of water each bird can drink. The health of livestock can also be improved by reducing fear, aggression, feather pecking, and increasing bone mineral density

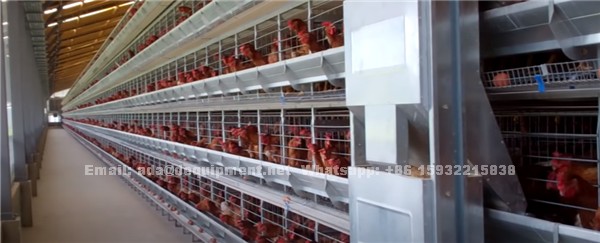

Introduction of automatic chicken cage and several important equipment

Capacity of one pen house30,000 layers each pen
Pen house layout Pen house size is 105m length, 10m width and 4m height

One pen 3 rows cage, one row 80 sets cage, total 240 sets cage 30,000 layers

Cage system4 tiers, H type, 128 birds per set cage

Vertical type battery cage with PP belt manure removing

Height of cage legs can be adjusted to suite floor condition

All of cage frames are made of aluminum-zinc material and wire mesh is made of galvanized Q235 material

Feeding systemAutomatic feeding machine motor is 0.75kw, speed is 5--7 m/min

3 phase, 380v, electric cable and feeding machine included

Refining device will be installed on hopper to make feed more uniform

Feeding hopper will be driven by low power motor to make it more effective

With 15 tons silo

Chicken manure removal

Belt sloping manure conveyor, complete with support, cover and 3HP motor

System of support of horizontal manure conveyor by hot dipped galvanized shelves

Environmental control system

50'ventilation fans 1.5HP, 3 phases

15CM paper pad

Egg collection

Egg conveyor is on egg collection belt to transport eggs on each tier into one egg room Width of egg conveyor is 65cm

Motor is 0.75kw, speed is 5-6 m/min

Lighting systemLED 5W, SL-D40 DC 220V

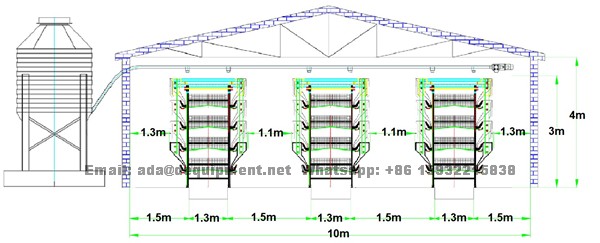

Chicken pen house design diagram
1. Pen house size: 105m length, 10m width and 4m height

2. Cage layout: one row 80 sets cage, 3 rows total 240 sets cage, total 30,000 layers one pen

3. Pass-way between two rows cage: 1.1m, should not be less than 0.7 meters, so that workers can observe chickens

4. Pass-way from cage to wall: 1.3m

5. Pen house front pass-way: 5m

6. Pen house end pass-way: 4m



Why choose BEST company be your partner

1. More than 40 years factory history, hundreds of production experts, advanced production line

2. IS0 9001, SGS, SONCAP, CCVO certification

3. Trade amount is NO.1 in the same industry

4. We have office, factory, warehouse and agent in Nigeria, Kenya, Uganda, Ghana, Tanzania and other African countries

You can check quality of the poultry battery chicken layer cage system easily

5. Recommend the most economical way to start your poultry business

6. Design the poultry farm chicken laying house for you freely


Any question and inquiry, talk with Ada now, sales manager with 6 years service experience

Tel & Whatsapp & Viber & Wechat: +86 15932215838

E-mail: ada@dequipment.net

Facebook & Skype & Linkedin: Ada Wang

Facebook homepage: www.facebook.com/Poultry-farm-chicken-cage-and-equipment-manufacturer


The advantages of using fully automatic chicken cage raising system

1. Improve production efficiency, greatly increase production capacity, and have significant economic benefits

The automatic chicken raising equipment has extremely high breeding density per unit space and large breeding output, which can realize a reasonable doubling of benefits. Use automatic chicken raising equipment, professional manure cleaning and feeding equipment, so that the manure in the chicken house can be cleaned out in time, and at the same time, it also ensures the cleanness and pollution-free environment of the chicken house, and provides a good housing for the chickens. Environment, using the automatic feeding system to feed the chickens can ensure uniform feeding, which can improve the uniformity of chicken growth, and the laying hens can improve the egg production rate


2. Reduce manpower and greatly reduce production costs

Using automatic chicken raising equipment to raise chickens, all equipment can automatically work instead of labor, so that farmers can save the use of labor costs and reduce the cost of hiring labor for farmers. In the past, it might take more than a dozen people to raise 50,000 chickens manually, but the automatic chicken raising equipment only needs one person to raise 50,000 chickens, which can save a lot of manpower


3. Easy to manage and reduce farming risks

The automation equipment realizes the automatic management of the temperature, humidity, ventilation, whether the lighting degree is evenly distributed, the fan cooling pan and so on to ensure the healthy growth of chickens and the safety and high quality of eggs


4. Improve product competitiveness and enhance brand capabilities

The automation equipment adopts closed feeding management, which is conducive to the control of epidemic diseases and the control of drug residues, creating conditions and laying a foundation for the realization of chicken hygiene and safety requirements. Egg broilers are of good quality, which is conducive to export and improves market competitiveness



What are the steps in poultry farm to start a layer farm

1. Choose an area of speciality

2. Set up your business plan

3. Research more on layer poultry farming

4. Get a suitable area ready

5. Get the suitable chicken cage and equipment

6. Get the layer birds

7. Market your eggs


Several factors affecting egg production

1. Layers need a complete and balanced diet that includes energy, protein and calcium

2. Food residue and scraping feed are often an inadequate source of nutrients in themselves that can prevent egg production

3. Diseases and poor management practices in intensive laying rooms can lead to a reduction in the number of eggs and abnormal shape and color of eggs

4. Provide cooling water to avoid heat stress

5. When the light goes out, the chicken does not eat, resulting in low egg production

6. The lamp should be checked and cleaned regularly to avoid darkening

7. There are many other reasons that can also affect egg production
