Manual layer cage

Manual cage is also called semi-automatic cage, it can be 3 tiers or 4 tiers as customer's requirement

1. Manual layer cage capacity

A type 3 tiers, size(L*W*H): 2*2*1.45m, 96 birds capacity per cage

A type 3 tiers, size(L*W*H): 2.2*2.4*1.65m, 120 birds capacity per cage

A type 4 tiers, size(L*W*H): 2*2.4*1.85m, 128 birds capacity per cage

A type 4 tiers, size(L*W*H): 2.2*2.4*1.95m, 160 birds capacity per cage

2. Manual cage structure

Cage mesh, cage frames, drinking system and feeding system, drinking system is automatic, it includes water tank, water pipe, nipple drinkers, filers, etc, water tank connect with water source and water pipes, nipple drinkers on the pipe, when birds touch the nipples, water will flow into their mouth automatically, while feeding system include feeding trough, feeder connectors and covers, workers need to put food into feeders manually

3. Manual cage features

No necessary to use electricity, simple structure, simple operation

Economical and smaller investment, which is popular for 500 to 15,000 birds poultry farm

Easy to installation, we supply detailed installation instruction and video, poultry farm designers understand very well and fix cages by themselves

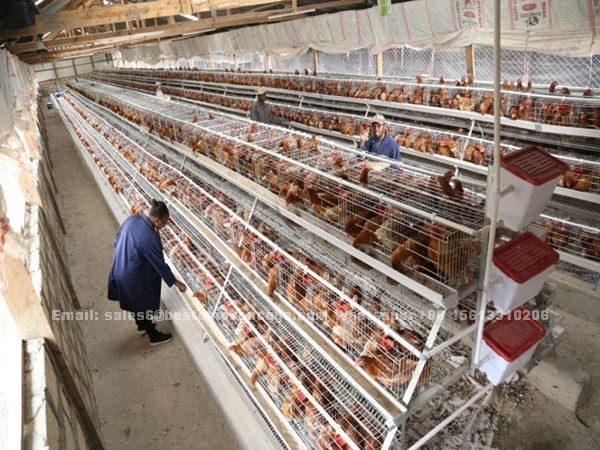

4. Poultry farm cases of manual cage

Poultry house location: Kenya

Poultry house construction: 2 chickens houses, each house 5,000 birds

Cage type: A type 3 tiers 120 birds manual cage

Other Poultry rearing equipment: 2 units manure scraper machine, one manure dewatering machine, one feed mixer and grinder machine, feeding trolley machine

Poultry house dimension: 40 meters long by 9 meters wide by 3.5 meters high

Full automatic layer cage

Full automatic chicken cage system includes cage mesh and cage frame, automatic feeding system, automatic drinking system, automatic manure cleaning system, automatic egg collection system and automatic environment control system

1. Automatic feeding of automatic cage

Ladder type automatic layer cage come with feeder hopper machine, each tier with two hoppers, the thickness is 1.2mm, the material is hot-dip galvanized steel and capacity of each hopper is 60kg

The trolley track is 48mm*2.75mm hot-dip galvanized steel

The material of the soil is hot-dip galvanized steel sheet and the actual capacity is 90%. The feed density is 0.65ton/m3, anti-corrosion and long service life

2. Automatic drinking system of automatic cage

Water is a substance that cannot be found in chicken breeding, so drinking fountains are one of the necessary buildings. From the perspective of water conservation and prevention of bacterial contamination, nipple drinking fountains are water supply buildings that can control the ambition and can achieve eggs and broilers drink water automatically and do not require farmers to feed water manually, which is highly efficient. However, farmers should pay attention to the need to choose a high-quality water-tight drinking fountain

3. Automatic manure cleaning of automatic cage

The scraper type manure removal machine is suit for ladder type layer cage, it includes control cabinet, motor, scrapers, wheels and ropes, poultry farmer need to dig a dung pit on the floor, it needs three phase electricity, chicken manure follows the manure scraper to the end and falls into the manure removal belt to be transported to the manure pulling truck, which can improve the environment in the house and reduce the incidence of diseases

4. Automatic egg collection of automatic cage

Egg collecting machine with hot-dip galvanized 1.5mm side plate, speed 2.95m/min

Egg conveying belt material is PP woven belt, thickness 1.2mm, width 100mm

The central egg conveying system directly transport eggs into the egg storage. It raise the working efficiency and reduces the labor cost and percentage of egg broken

5. Automatic environment of automatic cage

Fan with hot-dip galvanized steel frame, cooperate with cooling pad produce the wind chill effect, insure air exchange frequency 65-80 times per hour

Cooling pad include aluminium frame, water pipe, filter, pump, sink and anti-bird mesh. Corrugated paper with special chemical composition, high strength and corrosion resistance with long using life. For large evaporation area to cool and purify the air. Cooling pad combined with fans is the most efficient way of reducing the temperature in summer

6. Automatic layer cage features

Use three phase electricity, all work can be done by machine, save labor cost

Easy operate, easy to repair and maintain

Initial investment is relatively bigger than manual cage, which is suitable for over 15,000 birds poultry house

7. Poultry farm case of automatic cage

Poultry house location: Philippines

Poultry house construction: 20,000 birds in one chicken house

Cage type: A type 4 tiers 160 birds manual cage

Other Poultry rearing equipment: 126 units automatic layer cage, 3 manure scraper machines, one manure dewatering machine, one feed mixer and grinder machine

Poultry house dimension: 105 meters long by12.5 meters wide by 3.5 meters high

Our service

1. Recommend the most economical way to start your poultry business

2. Share helpful advice on poultry house construction

3. Cage factory, office and warehouse in Nigeria, Ghana, Uganda, Zambia, etc; Free sample available for checking quality before order

4. Door to door service, we could transport goods to your near sea port or directly to your farm

5. Installation manual and video can be shared freely

6. Chicken raising knowledge shared every week

7. Visit customer farms 2-3 times every year to help customers solve equipment problems or farm problems

What other poultry rearing equipment do you supply

1. For chicks: egg incubator and hatching machine, brooder cage, brooder heater, manual feeder and drinker

2. For broilers: broiler cage, automatic feeding and drinking line for floor system, broiler process line, chicken feather removal machine, chicken slaughter machine

3. For layers: semi-automatic layer cage, full-automatic layer cage

4. For poultry feed: feed pellet machine, feed mixer and grinder machine, soil to storage poultry feed, feeding trolley machine and automatic feeding machine to feed the birds more easily

5. For poultry waste: manure removal machine to clean chicken waste out of chicken house, manure dewatering machine to dry chicken waste and make money

6. For eggs: egg collection machine, plastic and paper egg trays, egg trays making machine, egg grading and sorting machine

7. Other products like: cold room, blast freezer, etc
