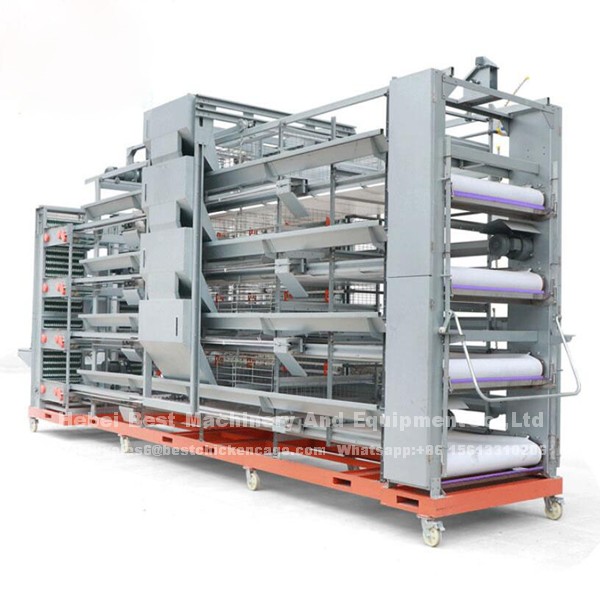

1. H type automatic layer cage: the number of tiers can be designed according to the height of the chicken house, generally 4-8 tiers, and more than 50 chickens can be cultivated per square meter, the breeding density per unit space is high, the breeding output is large, and the benefits can be reasonably doubled

2. Automatic feeding system: the fully automatic feeding hopper adopts a fully enclosed design to avoid the entry of dust and reduce the occurrence of respiratory diseases in chickens

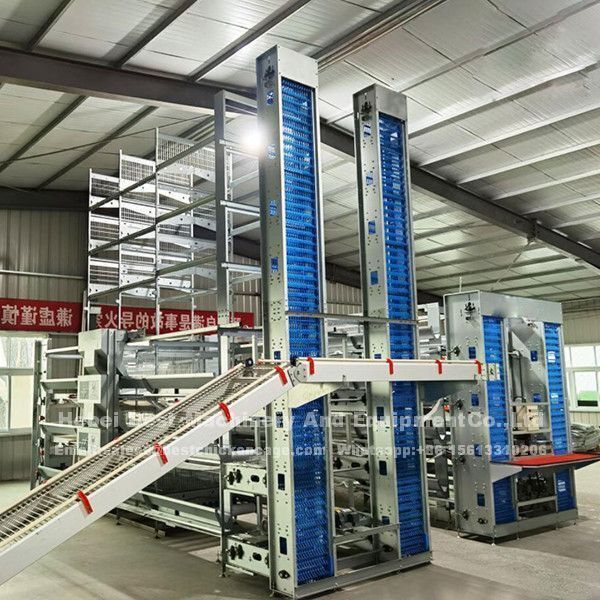

3. Automatic egg collection: it can directly transport eggs into egg storage room, reducing labor costs, high efficiency and stability

4. Conveyor-type automatic manure cleaning: drying and sanitation, saving labor, and manure can be cleaned many times a day, which greatly reduces the respiratory diseases of chickens

5. Automatic temperature control system: environmental temperature, humidity and wind speed also have certain influence on chicken egg production. It is generally believed that the optimal environmental temperature for chicken egg production is 13-23 ℃, and the optimal temperature is 16-20 ℃. Low temperature in winter or high temperature in summer can affect chicken egg production. The influence of humidity is generally not too serious, but too much humidity at high temperature or too much humidity at low temperature can significantly reduce egg production, so it is important to use an automatic temperature control machine to keep a stable environment for chickens

Poultry farm project of 100,000 birds

Project location: Kazakhstan

Poultry farm house quantity: security room, staff dormitory, brooder room, 4 laying hens houses, egg store room, poultry feed and drugs room, etc

Farm capacity: 100,000 layers totally, 4 layers houses, each house 25,000 laying hens

Layer house poultry equipment: H type automatic layer chicken cage, automatic feeding system, automatic drinking system, automatic egg collection system, automatic belt manure removal system, automatic temperature controlling system

Layer house dimension: 224 sets H type cage in house, 112 birds per cage, totally is 25,000 birds, house length is 120 meters, house width is 8 meters, house height is 4 meters

How to maintain automatic chicken raising equipment

Chicken raising equipment is a good helper to assist farmers in raising chickens. Farmers should carry out regular maintenance of machinery and equipment to ensure that machinery and equipment can work normally for farmers for a long time, improve the efficiency of your chicken farm

1. Automatic feeding system

When the automatic feeder is working, no items can be placed on it, otherwise it is likely to cause the motor to be overburdened and burn the motor

2. Automatic drinking system

Check the deep well pump water supply once a week

Water lines should be swayed relatively high to reduce crash damage

Clean water pipes regularly or before and after immunization and after medication

The water line should be leveled and the water pressure should be suitable

Booster pump bearings are lubricated once every six months, and waterline elevators are lubricated once per batch of chickens

3. Automatic egg collection machine

Poultry farmers should be train to learn how to operate the automatic egg collection properly, if the wrong operation will easily lead to the harm of the machine

After using the egg collection machine, be sure to pay attention to frequent disinfection and sterilization, because the equipment is inevitably left with some chicken excrement, feather dusters and other items containing pathogenic bacteria in the whole process of application, if the machinery with pathogenic bacteria are used all the time and are not cleaned frequently, the quality of eggs will be poor

4. Automatic manure cleaning machine

After farmers use the manure cleaner for a period of time, the manure removal belt will stretch and loosen. If this happens, the farmer should cut a section off and re-weld

Farmers should check bearings regularly. And the rubber roller, the bearing should be lubricated regularly, and the rubber roller should be kept pressed and not loose

5. Automatic ventilation system

Regularly maintain the fan motor and thermal relay to reduce motor damage

When cleaning the chicken house, wrap the motor with a plastic sheet to prevent water from entering, and clean the fan and shutters so as not to put debris in the fan and damage the fan blades

Maintain the tightness of the fan belt and replace damaged belts and bearings in time

The blower bearings are lubricated every six months

What service can i get from your company

1. We will recommend the most economical way of starting a poultry farm as your requirement or budget

2. Chicken house design drawings and cage layout can be provided freely

3. We can ship the poultry equipment to your near sea port, in some Africa countries, like Nigeria, Ghana, Uganda, Kenya, Zambia, etc we could also provide door to door service

4. We could provide poultry cage and equipment installation manual or videos freely

5. Chicken raising knowledge shared every week

6. Visit customer farms from time to time to help customers solve equipment problems or farm problems

What other poultry equipment do you supply

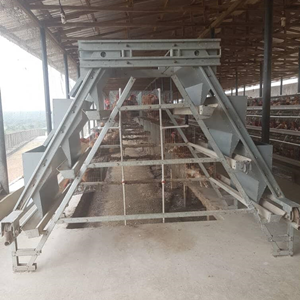

1. For layers: besides this H type automatic cage, we also have A type automatic layer cage and manual cage

For a 2,000-10,000 birds poultry farm, we advice you use manual cage, it’s drinking system is automatic, feeding and egg collection by manual

2. For chicks: egg incubator and hatching machine, brooder cage, brooder heater, manual feeder and drinker

3. For broilers: broiler cage, automatic feeding and drinking line, broiler process line, chicken feather removal machine, chicken slaughter machine

4. For poultry feed: feed pellet machine, feed mixer and grinder machine, soil to storage poultry feed, feeding trolley machine and automatic feeding machine to feed the birds more easily

5. For poultry waste: manure removal machine to clean chicken waste out of chicken house, manure dewatering machine to dry chicken waste and make money

6. For eggs: egg collection machine, plastic and paper egg trays, egg trays making machine, egg grading and sorting machine

7. Other products like: cold room, blast freezer, etc
