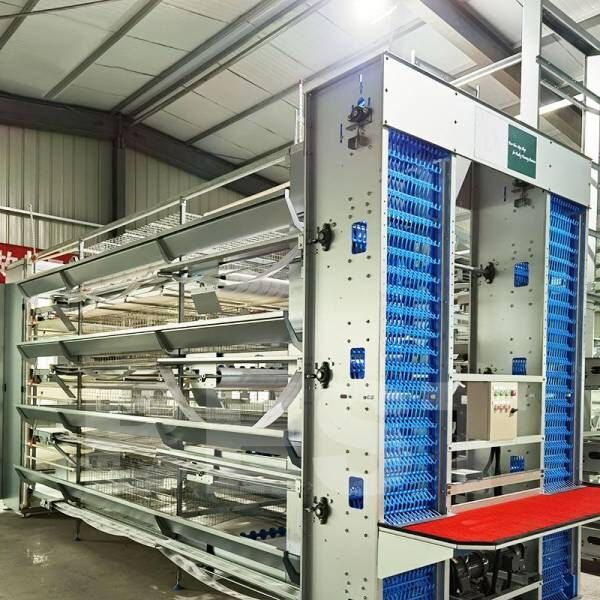

Automatic chicken cage details

1. A type 3 tiers chicken cage

Cage capacity:120 chickens per set

Cage size:length 2.2m,width 2.4m,height 1.7m

Surface treatment:hot deep galvanized

2. A type 4 tiers chicken cage

Cage capacity:160 chickens per set

Cage size:length 2.2m,width 2.4m,height 2m

Surface treatment:hot deep galvanized

What poultry farm quantity need use automatic system

Usually the number of chickens raised exceeds 20000 chickens,so you can consider using a fully automatic system

How to build chicken house

The temperature in Africa is hot and humid,if the automatic temperature control system is not used,the farm needs to build the chicken house into an open plan

As my many years poultry experience,and feedback from different customers

Under normal conditions chicken house type as below

Chicken house roof:galvanized steel sheet and wooden type

Chicken house pillar:galvanized steel

Chicken house floor:flat concrete and pit

Chicken house fence:aluminium mesh,aperture small,prevent birds and sanke enter

Also need to commence bore hole water system and drainage system

For chicken house size suggestion,our company's professional design department,professional artists will provide you with chicken house design drawings,according to the number of chickens you raise,land planning,local climate,etc

Typical case:20000 chickens in a chicken house,using 128 sets of 4 tiers layer chicken cages,the size of the chicken house is recommended to be length 99 meters,width 15 meters,height 4 meters

What is included in the full automatic system

1. Chicken cage automatic drinking system,water drip cups and water pressure regulators,terminals,splits,water filters and medicator from France,the water is clean and no harmful to the chickens

2. Automatic feeding machine,provide accurate feed and save feed,feed is distributed automatically to the feed carts from the feed silos by the spiral augers located in a pipe

3. Automatic egg collection system,automatic transport clean eggs,fully automatic egg conveying reduces egg breakage rate and keeps eggs clean,egg belt hooks and egg conveyor system to deliver all eggs from different houses to egg storage room

4. Automatic manure cleaning system,regularly and automatically clean the feces every day to keep the chicken house clean and tidy,so that the chicken house has no peculiar smell,thereby ensuring the health of the chickens

5. Environment control system,let the chicken house hit the ideal state of constant temperature and humidity,and increase the egg production rate

Why choose automatic feeding system in poultry farm

Intensive management and automated control,achieve automatic feeding,drinking,manure cleaning,egg collecting and environment control,can help to improve working efficiency and save labor cost

Have sufficient feed,water position and health uniformity are better chicken,chicken limited to the minimum amount of exercise,energy consumption,save feed

Chicken manure and chickens are completely isolated,manure can be directly down to the ground,chicken house dust greatly reduced,less chance of disease from infected feces,greatly reduced the mortality of chickens

High density raising,saves land and investment,the chicken cage could easy to observe birds,clustering or choose weak easily
