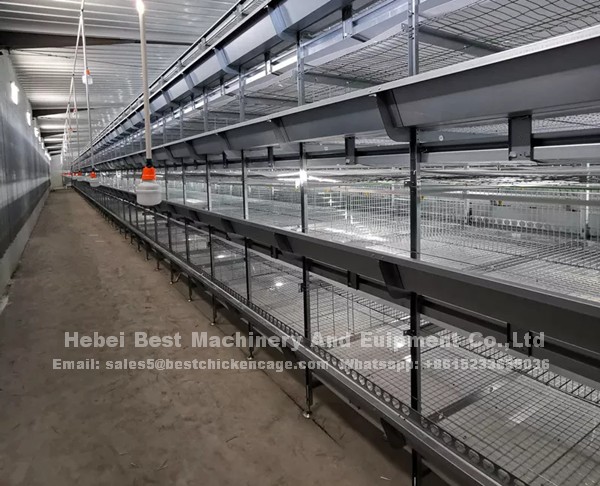

Introduction of H type layer cage systems

1. Aluminum zinc or galvanized  wire mesh ensures the best anti rust performance

2. Improved design of cage and frame structure will provide stable quality and better living condition for chickens

3. Depending on our close contact with local farmers, we can provide customized product to meet any specific requirement

Hopper feeding system

1. The main feed line can work automatically. Feed will be dispensed evenly in the feed trough

2. V-shaped feed trough may avoid feed left at edge to prevent the feed from accumulating and mildewing

3. The magnetic end device can effectively clean the accumulated feed to avoid mildew, ensure birds healthy and save labour

4. Proven design and stable running can prevent maintenance for the most part

Automatic egg collecting system

1. High quality PP egg belt (woven or perforated belt), low extension rate, little contraction or expansion caused by changing temperature

2. Optional egg saving wire ensures that eggs will roll smoothly to the longitudinal egg belt. Belt moving time and interval can be adjusted as per customer requirements

3. Proven design ensures stable running, maintenance free and lower broken egg ratio

4. Transversal egg conveying system can be chosen. All eggs will be delivered to outside of poultry house. This can save labor cost and reduce the contact of workers with birds

Manure removal system in house

1. High efficiency motor ensures the belt transmission stable and reliable

2. Rubber-coated driving roller and partial rubber-coated tension-roller make sure that manure will be cleared away from belt and no slippery of belt

3. The manure scraper is a little soft, effectively protects the conveyor belt. Double scraper ensures the cleaning effect of the conveyor belt. PU material, replaceable, with long service life

4. The two sides of conveyor belt support is a little higher, prevent the manure from spilling out

5. High precision products can ensure that manure belt will not deviate from the right position

Manure removal system out of poultry house

1. Entirely galvanized steel frame can provide better anti rust performance outside the poultry house

2. High quality rubber manure belt ensures maintenance freely

3. Proven design and reliable running prevents the manure from dropping on ground

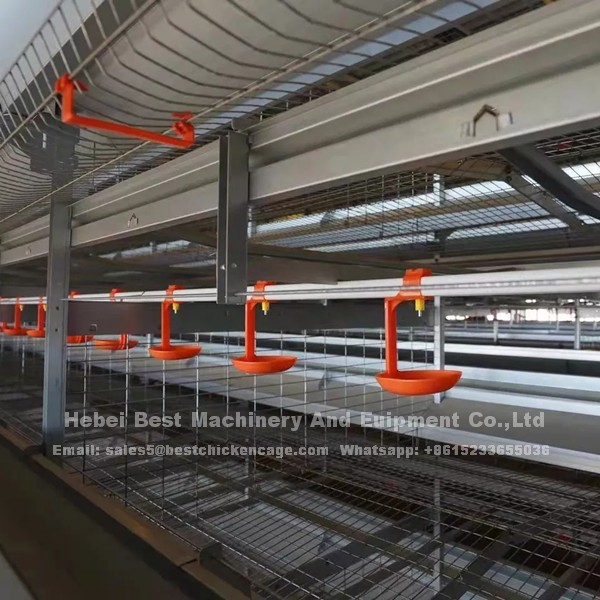

Drinking system

1. Water front kit: High quality filter, pressure control valve, and electronic water meter to record water consumption

2. Pressure regulator: Water pressure in the drinking line can be adjusted by turning the knob under the regulator. When you want to rinse the drinking line, just turn to flush position, then water will be forced through the pipe at high pressure

3. Drinking line: Layer cage system is equipped with a V shaped water trough. The nipple drinker is double sealing, which will ensure no water leakage

4. Optional alarm system will give an alarm whenever there is no water at the end of drinking line

5. Water flow rate of nipple drinker is 40 to 50ml per minute, which can meet the drinking demand of layers at the same tie keep manure dry

Smart ventilation control system

It plays a key role in success of poultry production, broiler or layer. Reliable control of in house temperature and proper air exchange determines the quality of living conditions of the birds. Our company has rich experience in designing ventilation systems, in hot climate, tunnel ventilation can help to reduce the temperature effectively. In this ventilation mode, fans and cooling pads will work collaboratively to exhaust hot air from the house and bring in fresh air into the house. In cold climate, fans and air inlet will work collaboratively to exchange air at regular intervals

Reasonable layout of chicken houses

The structure of the house is economic and practical, and its orientation is in line with the local natural and geographical conditions, with good lighting, easy ventilation and easy to operate. The house layout is reasonable to distinguish the production area from the non production, the non production area and the water source are in the upper direction of the chicken farm, and the manure farm is located in the lower direction of the chicken farm, the breeding farm and the breeding farm are located in the upper direction of the chicken farm. The site should be selected in the far away from the residential areas, convenient transportation, far away from the road.The terrain is dry and sunny. The area is larger, leaving room for development. Rich in water resources and pollution free, easy to use, sufficient power and guaranteed. Understand the local poultry disease epidemic situation, and try to avoid the affected areas or areas where outbreaks have occurred

Frequently asked questions

Q: You are manufacture factory or trading company?

A: We are manufacture factory. And you are welcomed to visit us for inspection. The quality control flow will show you Our professional. Also you will enjoy the best price and competitive price

Q: Is your price competitive with other companies?

A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost

Q: Do you offer service for installation?

A: We will give detailed installation drawings and video for free. And if you need, we could send engineers as installation director even a team

Q: Do you accept container loading inspection?

A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time

Q: Do you offer designing service for us?

A: Yes, we could design full solution drawings as your requirements. They use software such as Auto CAD, PKPM, MTS, 3D3S, etc. We will be glad to establish sincere business cooperation with you in the near future

Q: What is the delivery time?

A: Delivery time depends on order quantities. Generally, the delivery time will be 30 days after receiving deposit

Q: How can you get a quotation for your projects?

A: You can chat with me anytime via trade manager to offer me your detail information or you can just fill out our question send back to us. We will give you the best quotation as soon as possible. Thanks for your kind cooperation
