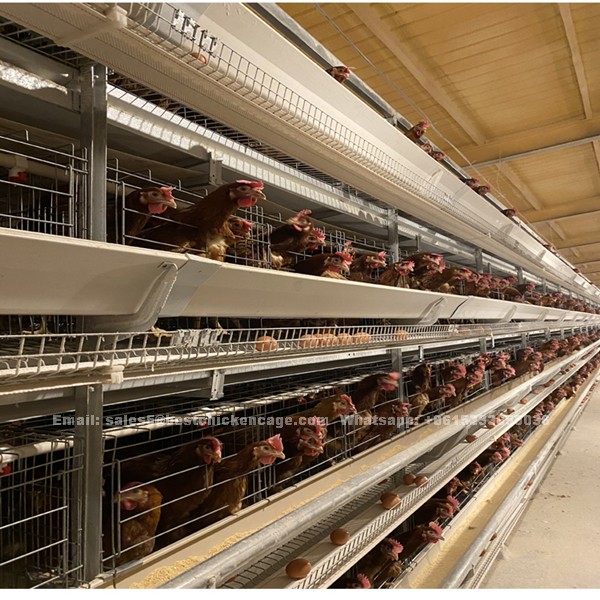

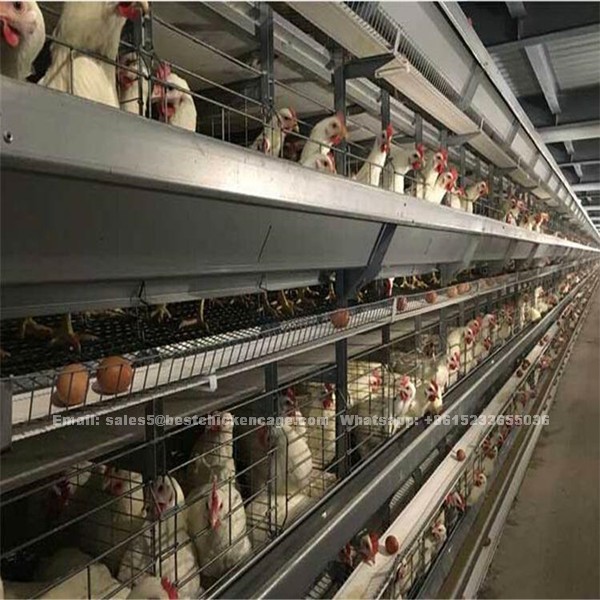

A type automatic layer chicken cage used in poultry farm

1. A frame cage, 4 steps

2. Whole cage size (l*w*h): 2.2m by 2.4m by 1.95m

3. Cage basket size (l*w*h): 215cm* 38cm* 34cm

4. Singe cage size: 215mmx380mmx340mm

5. Raising capacity: 4 layers/cell, 160 layers/set

6. Cage with drinking system (basic configuration, manual)

7. Automatic feeding system (not mandatory option)

8. Automatic drinking system (not mandatory option)

9. Automatic manure cleaning system (we have two types, belt type and scraper type, not mandatory option)

10. Automatic ventilation cooling system (close house need it, open house don't need it)

Layer chicken cage description

Material: Hot dipped galvanized wire, or stainless-steel wire ss430, ss304, and so on

Weave: Hot dipped galvanized after welded, or hot galvanized before welded

Feature: Firm welding with strong anti-corrosion and anti-oxygen. It's good to use and not easy to be broken

Type: Ladder type, two side, A type and H type, 3 and 4 and 5 floors one side, 4 and 5 and 6 cells one floor, 3 or 4 chicken one cell

One sets include: Cage legs, nipple drinkers, water pipes, water tank, water pipe connector, water tank connector, feeder, feeder connector, clip of assemble, pincer of assemble

To us it is quality that matters, not only quantity. We always have a workable solution for any possible problem, visiting our product list to learn more, click the words directly

1. Automatic or semiautomatic broiler, pullet and egg laying chicken cage system

2. Necessary poultry farm equipment

The designer, manufacturer and supplier of your poultry farm turnkey project, leave message on our website now to getting your own solution and enquiry for your poultry farm

The reason of using eggs laying chicken cage

1. The environment of chicken house is controllable, which is conducive to the physiological and production needs of chicken

2. Automatic drinking, feeding, manure cleaning, eggs collecting, saving manpower, reducing raising cost, multi-layer cage saves more space than floor raising, high land utilization rate, saving chicken house construction and land cost

3. Due to the good isolation between the close chicken house and the outside, the chance of cross contamination of chickens will be greatly reduced, which is conducive to the prevention and control of epidemic diseases, and save the cost of epidemic prevention

Drinking system

1. Water front kit: High quality filter, pressure-control valve, and electronic water meter to record water consumption

2. Pressure regulator: Water pressure in the drinking line can be adjusted by turning the knob under the regulator. When you want to rinse the drinking line, just turn to “flush” position, then water will be forced through the pipe at high pressure

3. Drinking line: Layer cage system is equipped with a V-shaped water trough. The nipple drinker is double-sealing, which will ensure no water leakage

4. Optional alarm system will give an alarm whenever there is no water at the end of drinking line

5. Water flow-rate of nipple drinker is 40-50ml/min, which can meet the drinking demand of layers at the same tie keep manure dry

Hopper feeding system

1. The main feed line can work automatically. Feed will be dispensed evenly in the feed trough

2. V-shaped feed trough may avoid feed left at edge to prevent the feed from accumulating and mildewing

3. The magnetic end device can effectively clean the accumulated feed to avoid mildew, ensure birds healthy and save labour

4. Proven design and stable running can prevent maintenance for the most part

Automatic egg collecting system

1. High quality PP egg belt (woven or perforated belt), low extension rate, little contraction or expansion caused by changing temperature

2. Optional egg saving wire ensures that eggs will roll smoothly to the longitudinal egg belt. Belt moving time and interval can be adjusted as per customer’s requirements

3. Proven design ensures stable running, maintenance-free and lower broken egg ratio

4. Transversal egg conveying system can be chosen. All eggs will be delivered to outside of poultry house. This can save labor cost and reduce the contact of workers with birds

Manure removal system in cage

1. High efficiency motor ensures the belt transmission stable and reliable

2. Rubber-coated driving roller and partial rubber-coated tension-roller make sure that manure will be cleared away from belt and no slippery of belt

3. The manure scraper is a little soft, effectively protects the conveyor belt. Double scraper ensures the cleaning effect of the conveyor belt. PU material, replaceable, with long service life

4. The two sides of conveyor belt support is a little higher, prevent the manure from spilling out

5. High precision products can ensure that manure belt will not deviate from the right position

Smart ventilation control system

Plays a key role in success of poultry production, broiler or layer. Reliable control of in-house temperature and proper air exchange determines the quality of living conditions of the birds. BEST has rich experience in designing ventilation systems

In hot climate, such as Africa climate, tunnel ventilation can help to reduce the temperature effectively. In this ventilation mode, fans and cooling pads will work collaboratively to exhaust hot air from the house and bring in fresh air into the house. In cold climate, fans and air inlet will work collaboratively to exchange air at regular intervals

Drawing of a type laying hens cages introduction about 25,000 birds

1. A type 4 tiers laying hens cage with full automatic system

2. Cage type: A type 4 tiers automatic layer cage

3. House size: 115*15*4m

4. Cage size: Length is 2.2m, width is 2.4m, height is 1.95m

5. 160 layers/set, 51 sets/row, 3 rows/house

6. Total: 3*51sets=153sets, 153*160 layers/set= 24,480 layers/house

7. One set manure removal machine with 3scrapers, 3 sets eggs collections machine, 3 sets feeding hopper machine, one set 2t/h feed mill, 10 t silo machine, one set manure dryer machine

Note: It is suggested that the maximum length and width of the house should not exceed 130 meters and 25 meters respectively
