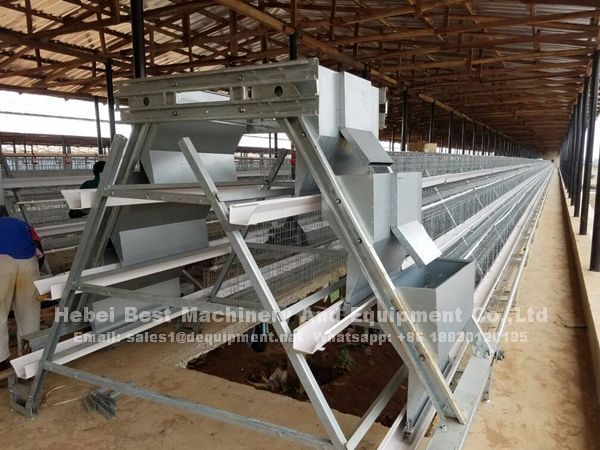

1. A type basic cage system: it comes with cage mesh, cage frame, water tank, nipple drinker, water pipe, water pipe connectors, feeder, feeder connectors. Drinking system is automatic. Feeding and egg collection will be finished by workers. For the chicken waste, worker can use tools and water to clean it. Or there is manure removal machine that can clean the chicken waste automatically

2. A type full automatic system: cage system, hopper feeding machine, egg collection machine, scraper type manure removal machine, ventilation system and so on. Drinking system is automatic. Feeding, egg collection, manure removal will all be finished by machine. Workers only need to operate the control box

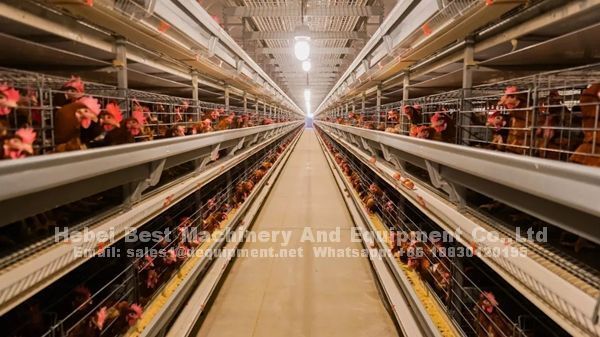

3. H type full automatic system: cage system, hopper feeding machine, egg collection machine, belt type manure removal machine, ventilation system and so on. Machine will finish all of the tasks. 1-2 workers can manage the whole poultry house

The advantage of A type automatic battery cage system

1. The initial investment is relatively small. It is a good choice for farms with tight capital, low land capital and relatively cheap labor

2. Simple operation, strong and durable

3. According to the capital situation, you can choose artificial feeding, water supply, and manure cleaning or choose automatic feeding, water supply, and manure cleaning system

4. Generally 3-4 tiers, 10-12 chickens can be raised per square meter. The cage has no special requirements for the chicken house

5. Compared with the H type chicken cage, its stocking density is relatively low, the management cost is increased, the use of vaccines, the cost of medicines are increased, and the feed-to-egg ratio is also high. Because of its low requirements on the chicken coop, the type A chicken coop is generally not very airtight, the degree of automation is low, and the flock is greatly affected by the environment, so the use of vaccine drugs has been increased

The advantage of H type automatic battery cage system

1. High stocking density, saving land. Compared with the A type cage system, it saves about 70% of the land

2. Centralized management to save energy and resources. Reduce the incidence of poultry diseases

3. The unique cage door design can effectively prevent the chickens from shaking their heads up and down when feeding and wasting feed

4. Adopt advanced ventilation system, lighting system and automatic control system to fully save energy consumption, improve labor productivity and improve material-to-egg ratio

5. Conveyor belt type manure removal is adopted to dry chicken manure into granules, reducing environmental pollution, high reuse rate of chicken manure, and ecological and environmental protection

6. The number of tiers can be designed according to the height of the chicken house, generally 4-8 tiers, and more than 50 chickens can be cultivated per square meter. It is generally recommended to build a closed chicken house and install a closed water curtain. At the same time, it should also be equipped with automatic water supply, material feeding, manure cleaning, egg collection and environmental control systems. The environmental control system includes automatic adjustment of environmental factors such as temperature and humidity

7. The initial investment is large, and it is difficult to dilute the cost when the production scale is small. High degree of automation and high requirements for feeding and management personnel. The most important thing is that because it is fully automated, power outages and water interruptions are its flaws, so emergency equipment is needed and the investment is large

Our suggestion on how to choose A or H type automatic battery cage system

We usually suggest customers to choose the proper cage system according to the chicken quantity

1. When the chicken is less than 5,000 birds, customers usually choose basic A type cage system (3 or 4 tiers) with automatic manure removal machine. Feeding and egg collection are by workers

2. When the farm is middle scale, about 5,000-20,000 birds, they consider basic A type cage system(3 or 4 tiers), manure removal machine and sometimes add the feeding machine. Egg collection are by workers

3. When the chicken is 20,000-30,000 birds, they use A type cage system, feeding machine, egg collection machine, manure removal machines. It is full automatic system

4. When the chicken is more than 50,000 birds, they consider H type cage system (4 or 5 tiers most), feeding machine, egg collection machine, manure removal machine. It is also full automatic system

Company introduction

1. Manufacturer in China, more than 40 years factory history, trade amount is NO.1 during our industry

2. Began to export to Africa from 2000 till now

3. Africa is one of our main markets and we have customers in Kenya, Uganda, Zambia, Zimbabwe, Tanzania, Botswana, South Africa, Namibia, Angola, Ghana, Nigeria, Cameroon, Niger, Senegal and so on

4. We have set up branch office, warehouse and factory are in Lagos, Nigeria

5. Agent, stock and farm sample in Kenya, Uganda, Ghana, Zambia, Tanzania and so on

Company services

1. Recommend the most economical way to start your poultry business

2. Design the poultry house for you freely

3. Agent and sample project in Tanzania, Kenya, Uganda, Ghana, Zambia, Nigeria for you to check quality before payment

4. Visit our African customers 2 times each year, check cage quality and solve problem for them

5. VIP customer group for whole African farmers to share and learn from each other

6. China expert to share rearing knowledge, supply China feed formula for farmers to increase their feed quality

Frequently asked questions

Q: What's the power does the machine require?

A: The automatic battery cage requires three-phase electricity, 380v voltage

Q: How long is the warranty?

A: We give one year warranty for the machine motor and maintenance

Q: Who do installation?

A: We have professional installation team who can install the cages and equipment for you

Q: What's the lifespan of your cage?

A: Our cage lifespan is more than 25 years

Q: What's your model of payment?

A: 40% as advance payment, we finish the production

    60% as balance payment should be paid when we send scanned shipping document to you

Q: How long can I get the equipment?

A: Production time is about 20-25 working days, shipping time is about 50 days
