20,000 chicken farm, what type of chicken layer cage to choose

Nigeria has a tropical monsoon climate with high temperature and rainy season. The whole year is divided into rainy season and dry season The surface of the cage is hot-dip galvanized, corrosion-resistant, high temperature, 10 years without rust, and more than 20 years of service life. It is recommended that 120 cages with large capacity on the third floor of type A have large space for chickens to move, so as to improve the comfort of chicken feet, so as to improve the egg laying rate. The cages themselves do not overlap, and the chicken dung will directly fall to the ground, which will not corrode the cage And the ventilation effect is good

20,000 fully automatic egg hen cages, which farm equipment should be selected

Automatic feeder, automatic egg picking machine, automatic dung cleaning machine, fan, wet curtain, feeding tower, mixer, egg tray, egg sorter, cold storage, generator, etc

What is an automatic feeder

Automatic feeder. Some customers are used to calling this equipment a traction feeder, a straddle feeding system, a travelling feeder or a cascade feeding system This fully automatic equipment is suitable for medium or large-scale farms and automatic feed conveying equipment The working principle of the automatic feeder is that the motor drives the traction rope, and the traction rope provides power to the hopper frame. During the moving process of the hopper frame, the material is evenly distributed in the material trough to complete the feeding

1. Hopper rack

The hopper for placing feed, including accessories, is mainly a hopper. The hopper is made of 1.2mm thick hot-dip galvanized steel plate, which will not rust for 10 years

2. Traveling power take-off system

The walking power system is driven by a vertical motor and an advanced cycloid pinwheel reducer, and the drive is lossless The utility model has the advantages of low failure rate, long service life, stable operation, low noise, reducing the impact of noise on chickens and improving the laying rate The frame is welded with high quality rectangular steel The rack is designed by engineers with many years of structural design experience. It has reasonable structure, large bearing capacity and no deformation

3. Travel system

The transmission mechanism of the traveling system adopts a chain Sprocket drive, the traveling wheel is made of high-quality cast iron, which has good anti shock effect and corrosion resistance. The guide rail is laid with rectangular square sections, which makes the traveling stable, increases the contact area, prevents slipping and saves electric energy Keep walking about 12 meters per minute Hot galvanized round pipe track, 10 years without deformation and rust

4. Material volume regulating system

Adjust the blanking wheel to make the blanking amount of each tripper consistent To achieve the purpose of uniform blanking By adjusting the minus The speed of the variable-speed motor can make the adjustment range of the blanking amount change between 1.25kg to 5.85kg and 12meters per minute. The cutting range can also be redesigned according to the needs of customers to meet the needs of different customers

5. Blanking power system

The blanking system adopts minus. The variable-speed motor is used as the power, and 15 to75 per minute arbitrary adjustment is implemented, with high adjustment sensitivity, strong bearing capacity, low noise, long service life, simple operation and stable stress Beautiful appearance, small structure and other advantages The installation screws are of 8.8kg grade and can be fastened with screws and bolts

6. Power distribution system

The power distribution system is designed by professional electrical engineers using national standard electrical appliances After starting, the feeder will automatically stop when it moves to the tail. Save manpower and facilitate management It can also design various electrical control systems according to the needs of users 1.5mm pure copper motor, one year warranty

What is an automatic egg collection machine

The automatic feeder automatically collects the eggs produced by each chicken and transmits them to the designated place to automatically collect the eggs in the whole process Accessories include frame, control cabinet, motor, chain, conveyor belt, egg card, egg claw and egg tray The working principle includes conveying, the head end device drives the conveyor belt, and the eggs are transported to the egg picking device through the egg belt. Then the eggs are picked up and transported to the workbench by the terminal device. The eggs are collected to the egg tray manually to complete the collection of eggs

What are the advantages of fully automated farms

1. Save time, feed the 70 meter long chicken house after running for 5 to 8 minutes, with low noise and improved egg laying rate Lower egg breaking rate and increase benefit

2. Save feed, adopt uniform feeding device, fill and distribute the feed to the trough through the gravity feeding tube to avoid manual feeding

3. Save labor, only one person is needed for 10,000 chicken houses, with automatic machinery, simple operation and labor saving

Long service life, hot dip galvanizing process. The full-automatic feeder adopts imported adjustable hopper, which can discharge evenly and accurately to the scale of money. Wear resistant, the service life of the main engine is generally more than 15 years

4. Save power. The power consumption of the whole machine (including lifting and conveyor) is less than 5 degrees per day on average, which saves energy compared with similar products

What are the design drawings and farm planning of 20,000 fully automatic farms

1. Layout of chicken coop Farm 4 rows, 42 sets of hot-dip galvanized egg chicken coops in each row

2. Chicken house area 100meters long, 17meters wide and 3.5meters high

3. The distance between the chicken cages is 1.48meters, and the space reserved is provided for feeding by the feeder and walking by workers

The distance between the chicken cage and the front and rear walls is 3.8meters. The space reserved is provided for the automatic egg picking machine. Workers pick up eggs and place eggs

4. Land requirements can be 4 plots and each plot 120ft by 60ft

5. Suggestions on farm location in the nearby suburbs, remote villages or urban remote forests, the price is cheap and the farm has good ventilation effect

6. Suggestions for farm fence buy or make large hollow green bricks by yourself, and add blade barbed rope or barbed stick. Hook net is combined with cement column or galvanized steel pipe or hook net is combined with brick wall

7. Other development plans of the farm can use breeding other animals, such as catfish, pigs, cattle, etc. At the same time, you can also grow fruits such as bananas, mangoes and papayas. Crops include soybeans, corn and cassava. Develop circular farms, agricultural products are used for animal breeding feed, and animal feces are used for crop feed

8. Equipment and infrastructure required by the farm

9. Suggestions on the structure of full-automatic chicken house with 20,000 full-automatic layers: Cement chicken house building structure or wood steel pipe combined building structure

10. Breeding knowledge needs to be mastered in advance or professional farm managers should be hired. Veterinarians should manage the healthy development of the farm

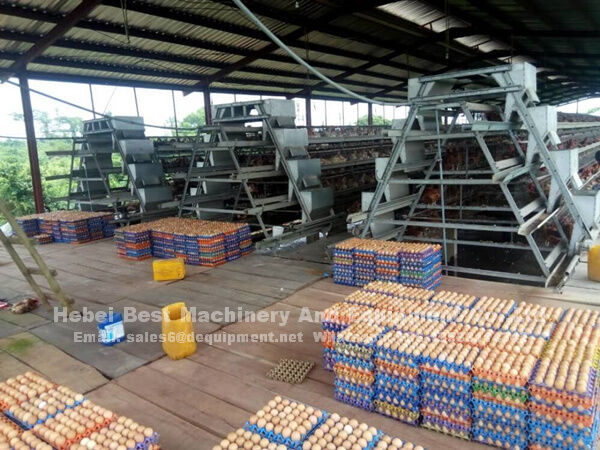

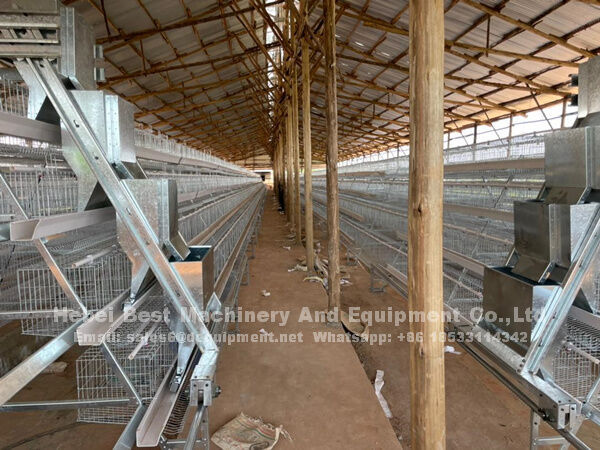

20,000 fully automatic farm in Nigeria,Africa

The 20,000 fully automatic chicken coop project is located in Abuja, Nigeria. As the capital of Nigeria, Abuja has superior geographical location, huge market potential and convenient transportation. The government supports farm breeding and gives preferential policies such as rapid loan approval

Eggs are very valuable for the egg chicken cage farm. Good egg conditions ensure a high hatching rate. The farm has two breeding buildings. The traditional breeder and Dieter feeding system is adopted. Eggs are laid in wooden boxes. The egg crushing rate is high, and it is inconvenient to collect eggs. At the same time, workers can easily bring bacteria into the farm because they often go in and out of the farm to provide feed and water for farmers

For the modernization and rapid development of the farm, our customers place an order for a set of fully automatic chicken cages from our factory, including automatic feeding equipment, automatic egg picking, automatic dung cleaning, feeding cylinder, fan and wet curtain system. The fully automatic chicken cage equipment reduces the use of workers. Two workers are arranged in one chicken house to quickly and efficiently collect eggs, reduce the spread of diseases, and facilitate the management of farm employees and the healthy operation of the farm

The chicken house is 100 meters long and 17 meters wide. It is built according to the design of our factory. After 8 months of construction, we can start to buy our products. We are responsible for helping customers produce, transport, customs clearance to the customer's farm, and finally complete the installation and commissioning. Now the customer farm is running normally

Why choose our company to cooperate

1. Free farm consultant, specializing in helping customers select farm chicken cages and farm equipment for 500 to 1,000,000 farm project

2. Professional delivery and chicken cage installation team

3. Professional sales team ,chicken farm design team

4. Visit customer farm each year and help customer develop farm fast

5. We accept Naira,Dollars, RMB, Pound, Euro, Hong Kong dollars payment

6. We can help customer do import ,do customs clearing of full container goods

7. Rich farm case sharing, free farm knowledge training, professional product answers and high-quality product provision
