1. The broiler cage used to keep broilers, from one day to adult

2. In general around 45-60 days old, they will be sold to market for meat

3. It equipped with small feeders and drinkers

4. They can finish the whole growing life in same cage, it is effective

Structure of broiler cage

1. Cage frame: A type or H type

2. Cage mesh: cage mesh adopts hot dip galvanized process, which is corrosion-resistant, strong and beautiful, not easy to rust, and has a lifespan of more than 20 years

3. Bottom mesh: design and material are very important, the bottom mesh is thick and dense, firm and elastic, and equipped with a plastic flat mesh. A hygienic and clean bottom mesh can avoid the formation of chicken breast hematoma, reduce the occurrence of coccidiosis and other diseases, and reduce mortality

4. Door: horizontal sliding door, spring type, push inward, easy to manage chicken

5. Drinking system: it include nipple drinker, water pipe, water tank, manual drinker

1) The water pipe gradually increases with the age of the chicken from the middle of the separator, and is equipped with an adjusting rope

2) 2 pieces nipple drinker with cups per cage cell to ensure sufficient water supply in the later stage

3) Within one week old, they will use manual drinker and feeder to get water and feeds, when they grow up, they will use pipe, nipple drinker, feed trough, when they 2 weeks old, you can take out the small drinker and feeder

6. Feeding: feed trough and manual feeder, when they are small, they will use manual feeder to get feeds, when they get elder, you can remove it

7. Manure cleaning system: it has manure plate to receive the chicken dropping, can be washed with water and replaced within 2 years. The broilers do not in a contact with the manure cleaning system, the chicken manure is cleaned regularly, and the lower harmful gases such as ammonia and hydrogen sulfide can greatly improve the breeding environment of the chicken house and reduce the occurrence of poultry diseases

Specification of broiler cage

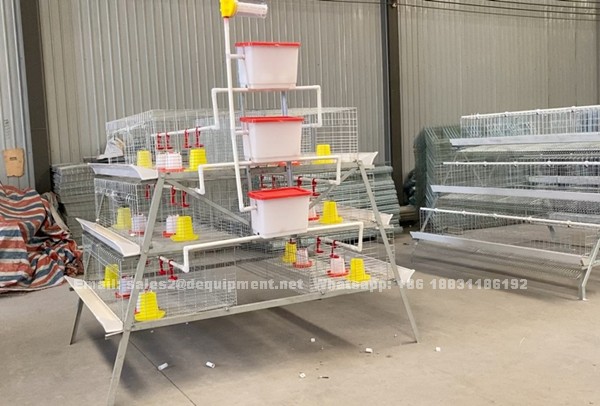

A type broiler cage

1. Type: A type, 3 tier

2. Capacity: 96 birds per set

3. Size of cage: 1.5m by 2.2m by 1.75m

4. Cell size: 70cm x 70cm x 40cm

H type broiler cage

1. Type: H type, 3 tier

2. Capacity: 96 birds per set

3. Size of cage: 1.5m by 1.4m by 1.35m

4. Cell size: 70cm x 70cm x 40cm

H type broiler cage

1. Type: H type, 4 tier

2. Capacity: 128 birds per set

3. Size of cage: 1.5m by 1.4m by 1.75m

4. Cell size: 70cm x 70cm x 40cm

Accessories of cage system are cage mesh, cage frame, water tank, water pipe, nipple drinker, water pipe connector, feed trough, feed cover, feed connector, manual drinker, manual feeder, manure dropping system, installation tools

About the baby drinker and feeder, when broilers are with 3 weeks old, they will drinker and eat by the drinker and feeder, when they are 3 weeks old, you can remove them, they will get water and food by nipple drinker and feed trough, water pipe height can be adjusted on the cages part mesh, they will finish the whole growing life in the cage, when they are 45-60 days old, they will be slaughtered for market

The advantages of broiler cage

1. Compared with feeding on the ground, broiler cage save more space, reduce feeding waste, reduce spread of disease

2. Meat quality is better and increasing faster, there are not too much space for broiler walking, so reduced energy consumption and store more fat, unique bottom mesh and soft plastic netting mesh for broiler standing, flexible and the broiler feel more comfortable

3. The broiler system enables industrialized and large-scale chicken farming, compared with free-range way, the stock density is increased by 2-4 times, and the utilization rate of the house is significantly improved

4. To ensure the hygiene and health of the growing environment of the chickens, it can effectively improve the body weight and feed conversion rate, and breeding batch can be added every year

5. After each batch of feeding, cleaning and disinfection can be carried out quickly and easily, reducing the interval between batches

6. Cage can obtain more uniform broiler flocks than free-range system

The maintaining of broiler cage

1. After finish installation, clean the feed trough

2. Connect water to make sure the whole drinking system is well from cage beginning to end

3. After 2 years using, move all birds, clean the cage mesh, water pipe

4. Replace the nipple drinker if they link water to protect bird feather, medicinal water will make feather fall off

Our popular product list for sale for your reference

1. For broiler: automatic drinking and feeding line, automatic slaughtering line, plucker, cold room

2. For chicks: chick cages for small layers from one day old till 16 weeks, manual drinker and feeder, automatic bell drinker

3. For layers: basic layer cage for 500-20,000 birds farm, A type full automatic system for about 30,000 birds, H type automatic system for more than 50,000 birds farm

4. For chicken waste: manure removal machine to clean the chicken waste, manure dryer to dry the chicken waste for planting

5. For chicken food: feed mixer and grinder, trolley feeding machine to feed chicken, silo to store chicken food

6. For chicken egg: egg tray both paper type, plastic type, egg tray making machine to produce egg trays, egg breaking machine, egg washing machine, egg grading machine and so on

7. Poultry house: steel structure construction, chain link fence to fence your land, aluminium wire mesh to be as window of your poultry house

8. Poultry house temperature: Roller curtain cloth to keep house warm, cooling system to reduce temperature, electricity and gas brooder heater

Introduction of my personal experience

You can call me Sandy, sales manager with 10 years service experience

1) Best factory with 30 years produce experience, 15 years export experience

2) Design poultry farm, recommend proper cage and equipment, share farm experience freely

3) Good at 2,000, 5,000, 10,000, 20,000, 50,000, 100,000 farm projects

4) Provide installation, transportation service, door to door

Hope you can get the satisfied cage and poultry equipment from me, wish us a long cooperation
